My happiness was short lived after the motor was finally installed.....
This success was even shorter lived...
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| page 5 | |
||||||||||||||||||||||||||||||||||||||
| DYNO JET | |||||||||||||||||||||||||||||||||||||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | |||||||||||||||||
| Page | |||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||

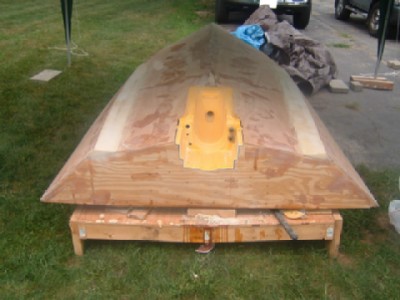

| You can see the peice that was cut from the Jet Ski is fit in. The chine flats are in and sanded, all holes and bumps have been filled in with epoxy. We are getting ready to glass in the bottom. The drive shaft is still at the Machine Shop, hopefully to be done this week. We mocked up the engine and the impellar when we originally fit the jet ski part in. I would like to actually test it for real before we commit to the placement of the pump. As it is now, it is easily raised if need be. I also found a trailer and should be picking it up tomorrow. I was sweating this because after the hull is glassed and painted, I want to store it on the trailer instead of the building form. | |||||||||||||||||||||||||||||||||||||||

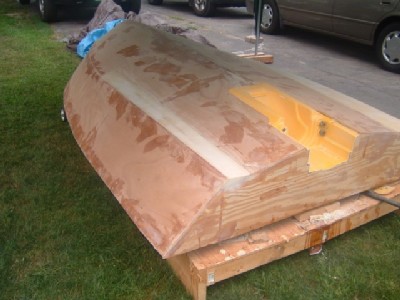

| Another shot - I couldn't be happier with the bottom, everything has come together pretty well and I am looking forward to applying the fiberglass and paint..... My happiness was short lived after the motor was finally installed..... |
|
||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||

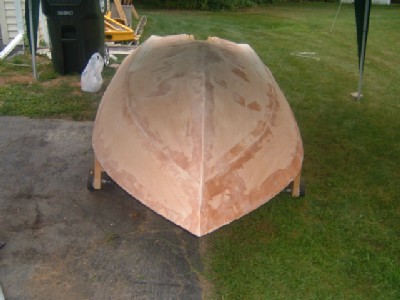

| The front shot - Looks pretty good, nice straight lines almost ready to be fiberglassed.... | |||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||

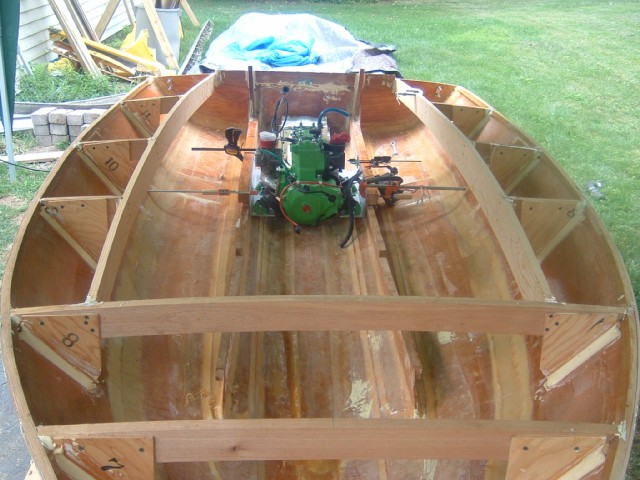

| Success!!! the motor fits inbetween the stringers, Now all we need is a driveshaft and it looks like we will be able to go forward. This success was even shorter lived... |
|||||||||||||||||||||||||||||||||||||||
