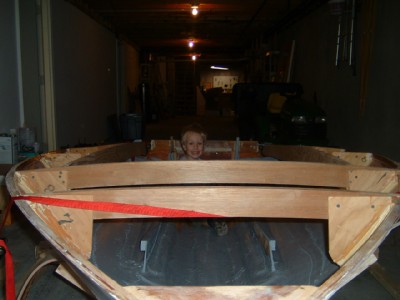

| We have a driver!!!! My helper is testing out the ergonomics! |
|
|
|
|
|
|
 |
|

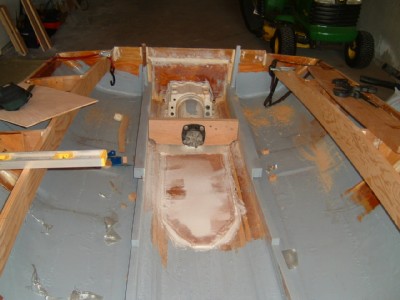

| This picture and the next two show the Whip-Strut. It is made out of two peices of Douglas Fir. I'm going to sandwich a piece of fiberglass cloth inbetween for strength and coat with epoxy. You can also see the last keel member installed. |
|
|
|

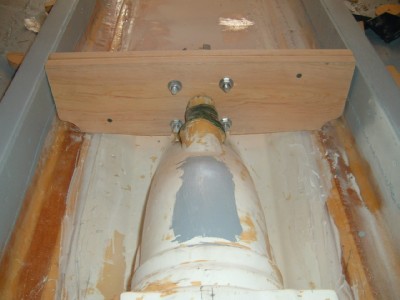

| A close up shot from the stern. I used the bearings from the original ski, throughbolted with stainless steel nuts and bolts. |
|
 |
|
|
|
|
|
 |
|

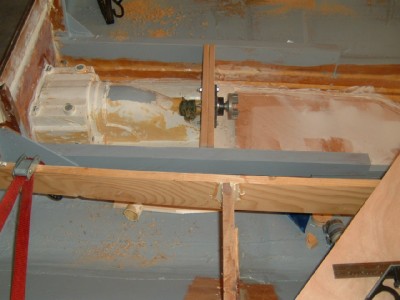

| A side shot. |
|
|
|
|
|
