You can see the engine is installed and the inside is painted
Looks like we can start moving forward with the seats and cockpit.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| page 12 | DYNO JET | |||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | ||||||||||||||||||||
| Page | ||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||

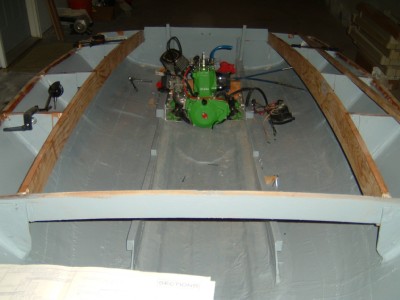

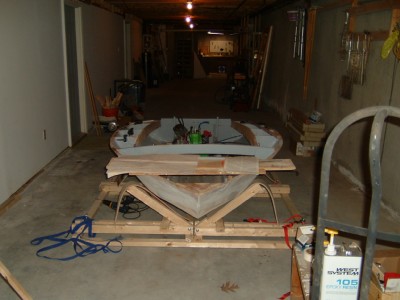

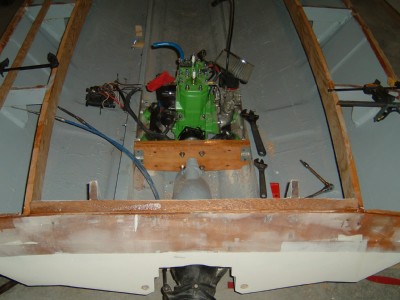

| Here are three shots of the inside. You can see the engine is installed and the inside is painted Looks like we can start moving forward with the seats and cockpit. |
||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||

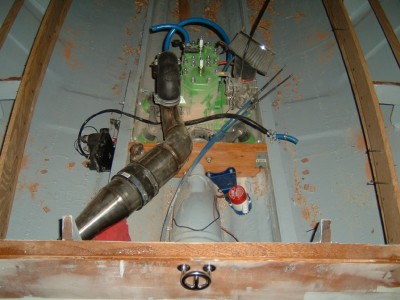

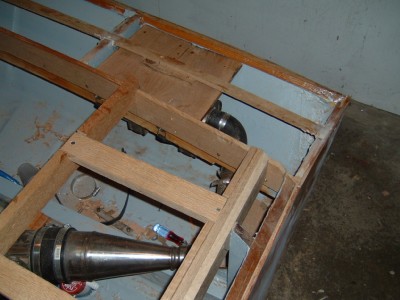

| Originally, I was going to run the exhaust to the left, but after some advice from a friend and concern that the gas tank should be on the oppositie side of the driver, I ran it to the right. It is difficult to see in the picture, but the line runs neatly into the waterbox, which has been installed to two 1/2" white oak planks. I built a cradle for the water box out of two strips of white oak, covered with epoxy and applied Dynamat. Heat is a small concern, because in the original jet ski, the waterbox was held in place by two rubber straps. The dynamat is soft and coated with a thin sheet of metal - This should provide some vibration protection. | ||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||
