Operating SystemApplication SoftwareMaintenance SoftwareMost modern main boards have embedded or integrated solution while some do not. These solutions include network controllers, high definition audio controller and FireWire controllers. In the other hand, some users purchase USB Port and Serial Port host cards to maximise their needs. Installation steps are provided here in case they appear in your list.
Hardware included:
- Wired (Ethernet) or Wireless (802.11a/b/g/n) Network Interface Card
- Serial Port Controller Card
- USB Port Controller Card
- EIDE/SATA RAID Adapter Card
- Video Capture/TV Tuner Card
PCI (Peripheral Component Interconnect) Based Hardware

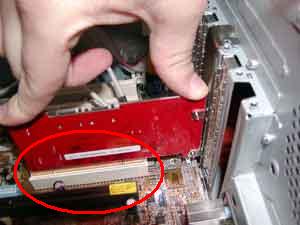

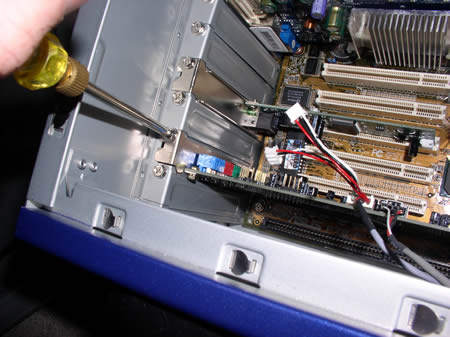

Insert the hardware, be it Wired/Wireless Network Card or Sound Card as long as they are PCI based, into any empty PCI slot. Secure the bracket to the chassis.
Click to enlarge
Step 1
Click to enlarge
Step 2
