FirstSteps2Alottafun Lesson Seven Part Two The Script
Please Note***These pages will be graphic intense, they will take a while to fully download. Use your refresh button to reload the page to check for updates on this page. ...Renee

The Script

This script is a Left Border Multi-Image Scroll. This means we have 3 different images that the script will tile to scroll as a left border over a fixed background. Portrait position graphics work best for side border scrolls.

FirstStepper's Click Here To Download Script

**Note, The screen captures for how to get your copy of the script are the same as previous lessons.. They are still the same for lesson seven.

Please follow these directions step by step.
1. Click above for script.
2. It will open to a blank html page that will be showing a white background and scrolling boxes that have a red x in them.

Next click view/source.

This will open up Notepad with the text version of the script.

We will need to save this to the firststeps scripts folder we created.
Click file/save as and open the path to your folder, and save the text file.

You can now close the windows. We are going to go to that same folder and re-open that text file that we just saved. Go to start/program files/windows explorer/c:/firststeps scripts/ and double click on the file you just saved to open it. It will open in Notepad. We are going to make a copy of this text file to enter our stationery in. Make it a rule to Never work on the original.
Now, right click anywhere inside the Notepad window and click on select all...

This will highlight all the text a dark blue. Now right click again in the window and click copy...

This places a copy of the text file on your clipboard. Close the windows. Now click the shortcut to Notepad that we created at the beginning. This will open up a clean file. Right click anywhere inside the window and click paste.

You should now have a copy of the script.

Ok, with that all done we are ready to enter our stationery into the script!
Just follow the directions. Remember this, there is NO room for error in scripts. Even a dot in the wrong place will create a script error window. You must become familiar with the script and where you are making the changes. Go step by step and change where I have instructed you to do. This should begin to feel a little more familiar to you.
So if you are ready, let's do it!!

The Script

<HTML><HEAD>
<STYLE>BODY {
This section tells you what color is the first loaded into the computers viewer. It is actually the color behind your stationery. I put mine at the main color I chose for my background. Most computers will show this color before the actual stationery.
BACKGROUND-COLOR: #ffffff;
This is the color you want your font to be seen on your stationery.
COLOR: #000000;
The font family describes the font you want to use and see in your stationery. But know this, if the receiver does not have the same font in their fonts folder, they will only see their "default" font on your stationery.
FONT-FAMILY: "Comic Sans MS";
Font size is determined by what font you choose, some fonts at 14pt are really small, and some are a normal reading size. Determine this by the font you are choosing. If you change the font size here, since 14pt is "normal" there is sometimes a place down in the script you will need to change to match or it will not change. It is in this script. If you change the font size here, scroll down below and change it also.
FONT-SIZE: 14pt;
Place the margin at the width of your graphic. ***Tip: If your margin is right up against the graphic, down below in the image width and height, add 10 pixels to the width of your graphic. It will fool the script!!
MARGIN-LEFT: 225px;
MARGIN-RIGHT: 0px
}
</STYLE>

</HEAD>
Your background image is what will cover the whole background. The bgColor is the same as you entered above. It's the color your viewer will put behind your stationery.
<BODY background="file://C:\Program Files\Common Files\Microsoft Shared\Stationery\BACKGROUND IMAGE.JPG" bgColor=#000000>
This is where your first image for the border scroll will go. Be sure and put in the height and width. ***Add 10 pixels to width on each image, to move font 10 pixels over from each image
<IMG id=bkg1 src="file://C:\Program Files\Common Files\Microsoft Shared\Stationery\YOUR IMAGE.JPG"
style="position:absolute;top:0; HEIGHT: 300px; LEFT: -1800px; WIDTH: 225px">
This is where your second image for the border scroll will go. Be sure and put in the height and width. ***Add 10 pixels to width on each image, to move font 10 pixels over from each image
<IMG id=bkg2 src="file://C:\Program Files\Common Files\Microsoft Shared\Stationery\YOUR IMAGE.JPG"
style="position:absolute;top:0; HEIGHT: 300px; LEFT: -1800px; WIDTH: 225px">
This is where your third image for the border scroll will go. Be sure and put in the height and width. ***Add 10 pixels to width on each image, to move font 10 pixels over from each image
<IMG id=bkg3 src="file://C:\Program Files\Common Files\Microsoft Shared\Stationery\YOUR IMAGE.JPG"
style="position:absolute;top:0; HEIGHT: 300px; LEFT: -1800px; WIDTH: 225px">
Have your midi in your stationery folder and making sure the titles are exact enter your midi here.
<BGSOUND balance=0 loop=99 src="file://C:\Program Files\Common Files\Microsoft Shared\Stationery\YOUR MIDI.mid">

<SCRIPT language=VBScript>
REM *** LEFT-BORDER MULTI-IMAGE SCROLL SCRIPT ***
REM Edgar V. Poirier
REM [email protected]
REM Thanks to G�rard Ferrandez for the idea ; )
REM August 21, 1999
Dim w, wW, wH, sH, wx, bH, myTimer, x, y, xD, yD, Res
Dim pW, pH, lastPic, numPics

Set w=document.body

REM *******************************
REM * Set Scroll Direction Below *
REM * For Scroll-Down (yD=1) *
REM * For Scroll-Up (yD=-1) *
REM *******************************
In the section below it determines which direction you want your scroll to go. A number one (1) scrolls the border "DOWN". A number minus one (-1) scrolls the border "UP"..
yD=-1

REM *** Enter the number of the last picture in the series below ***
lastPic=3

REM Initialize
sub setUp()
w.style.marginLeft=pW
REM Get window dimensions
wW=w.clientWidth
wH=w.clientHeight
REM Repeat to fix an OE bug
wW=w.clientWidth
wH=w.clientHeight
sH=w.scrollHeight
REM Set the scroll Width and Height
bH=wH
if sH>wH then bH=sH
y=-(pH)
chkPics=numPics
REM Adjust number of pics for message length
if int(bH/pH)>numPics then
chkPics=int(bH/pH)+2
data=""
for i=numPics+1 to chkPics
for j=1 to lastPic
p="bkg"&j
data=data&"<IMG src='" & document.all(p).src & "'>"
next
next
box.insertAdjacentHTML "BeforeEnd", data
end if
REM Limit visible area
container.style.width=pW
container.style.height=bH
container.style.left=0
container.style.top=0
REM Set the size of the scrolling area
box.style.height=bH+3*pH
box.style.width=pW
box.style.left=0
box.style.top=y
REM Start the scroll.
SF
end sub

REM universal scrolling routine.
sub SF()
ClearTimeOut(myTimer)
y=y+yD
if yD>0 and y>=0 then y=-pH
if yD<0 and y<-pH then y=0
REM Position the background image.
box.style.top = y
REM *** repeat (larger numbers in line below give slower scroll) ***
myTimer=SetTimeOut("SF",24)
end sub

REM Everything starts here
sub Window_OnLoad()
REM Get window dimensions
wW=w.clientWidth
wH=w.clientHeight
REM Repeat to fix an OE bug
wW=w.clientWidth
wH=w.clientHeight
REM Get users screen resolution
wx=window.screen.width
REM and adjust font size to match.
Res=INT(wx/128)
If you changed the font size above from 14, change it here also.
w.style.fontSize = 14+Res
REM Get dimensions of background image from the first image.
REM Height is determined from total height of different images
pH=0
pW=0
for i=1 to lastPic
pH=pH+document.all("bkg"&i).style.posHeight
if document.all("bkg"&i).style.posWidth>pW then
pW=document.all("bkg"&i).style.posWidth
end if
next
REM Number of image blocks down
numPics=INT((wx*.75)/pH)+lastPic
if w.scrollHeight>wH then
hc=w.scrollHeight/pH
if int(hc)<hc then
numPics=int(hc)+3
else
numPics=int(hc)+2
end if
end if
REM "Tile" the background (NOTE: Image is not positioned.)
for i=1 to numPics
for j=1 to lastPic
data=""
p="bkg"&j
data="<IMG src='" & document.all(p).src & "'>"
box.insertAdjacentHTML "beforeEnd", data
next
next
REM Lets get started.
setUp
end sub

REM This runs if the window size is changed.
sub Window_OnResize()
setUp
end sub

</SCRIPT>

<DIV id=container
style="FILTER: BlendTrans(Duration=0); HEIGHT: 600px; LEFT: 0px; POSITION: absolute; TOP: 0px; left: -1800; WIDTH: 800px; Z-INDEX: -1"><SPAN
id=box
style="HEIGHT: 600px; POSITION: absolute; WIDTH: 800px"></SPAN></DIV></BODY>

</SCRIPT>
The higher the number the slower your ticker script will scroll. ((I like mine at 450))
<script language="JavaScript">

</script>

</HTML>

Well you are almost there!
Screen Captures are the same as lesson one. This part of your scripting does not change.
After you have entered in all your information, your Notepad text will need to be saved. The same script has to be saved two ways.
#1. Click file/Save As
When the Save As window pops up, put a name in for your stationery
The bottom window has as Text document, that is correct so save it to your stationery folder.

We still have to Save As a HTML file so our computers can read the script. So click SAVE/AS AGAIN but this time open the drop down window, and make ALL FILES as the save as type.
Then using your cursor take the .txt file extension off of the end of your stationery name and type in .html (make sure the dot is there) and click save again.

You should now have two files for your stationery, one is stationery name.txt
and the other is stationery name.html
Leave your html notepad open.. we are now going to look at the stationery.
Are you getting a little more familiar with the steps?
OK... now open your Outlook Express, click Message/click New message using/click select stationery.
In the stationery view window move the scroll bar till you see your stationery. You will only see the html version. Click on it, and click ok. Now your stationery should have opened up in the New Message Window.

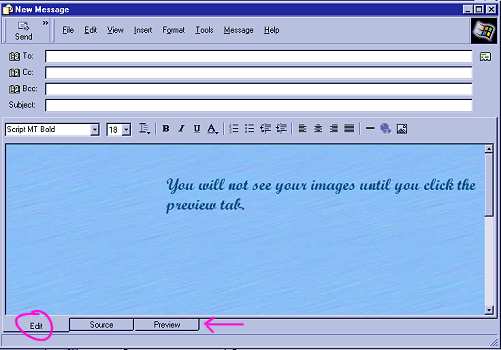

**You will notice that your scrolling images are not in the edit window. They will be normal in the preview mode.. Click on the preview tab to view the scrolling gif or .jpg, your font size and colors. If you need to make any changes, close the window, make your changes in your notepad, save, then open your stationery again in your Outlook Express. Don't Forget to save your changes in both the HTML and TXT versions.

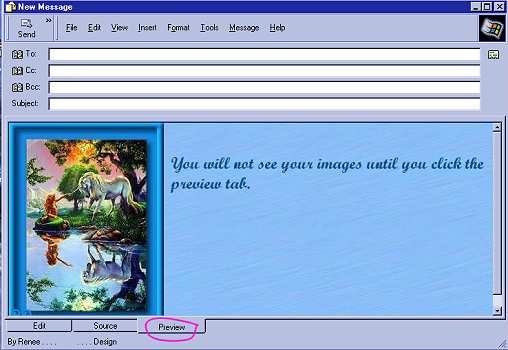

Click on the preview tab to see the scroll and ticker and hear the music.

Is everything working? Do you see the scroll? Is your ticker displaying your message?
Do you hear your midi playing?
If you did NOT get an error window CONGRATULATIONS!!!! YOU DID IT!!!
Now click back to the edit tab and test your font, is the color dark enough? Is it too close to the graphic or too far away? Is it large enough or too large? Do you want to change anything? If you do, close the stationery, maximize the notepad html and make the changes, click save (since it is still active and open you can make changes) and open your stationery again to view the changes.
If you made changes you must save as both html and txt again If you are quite happy with everything then send the stationery to yourself to verify its working correctly. If it is, and you have saved both your html and txt, then close your Notepad you are done with lesson seven!

If in the future you want to make changes in this stationery, open up the txt file, make your changes, save as both .txt and html again.

Click Here To View Finished Stationery
This will take a moment to load, as I have placed it as a txt version, This way you can click on View/Source so that you can see the actual stationery changes that I made. You can see the names and sizes and colors. Use your "back" button to return to this page
