Escapade Build Report

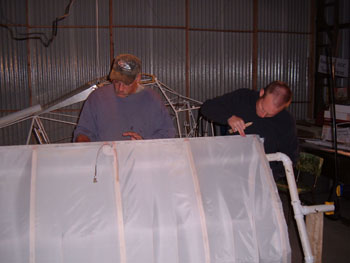

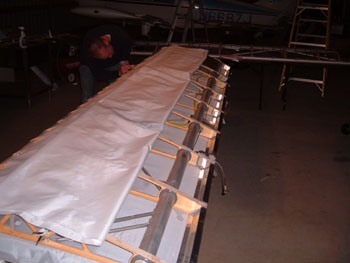

The top piece of fabric is glued on much like the bottom.  Once again the control cables need a slit in the fabric.

At the trailing edge, the fabric must be cut for the aileron hinge brackets and the seam must be sealed well.

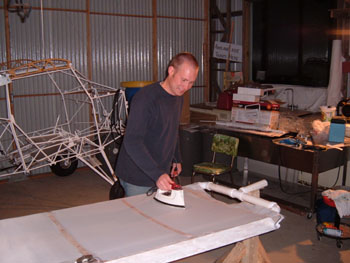

After it is glued and dried, the fabric must be ironed with no steam at 250�.  The heat shrinks the fabric in preparation for the next step.

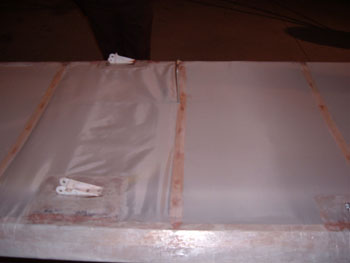

The fabric to the left has not yet been ironed while the section on the left has.
