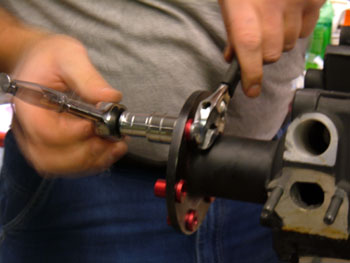

Once again working on the engine, we put the inserts into the prop hub.

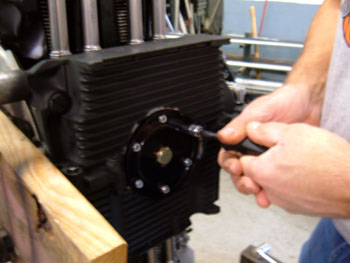

The oil screen is installed on the bottom of the case. The bolts must be tight but not over-torqued.

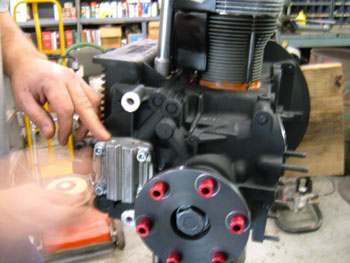

The oil pump is installed on the front of the case and behind the prop hub.

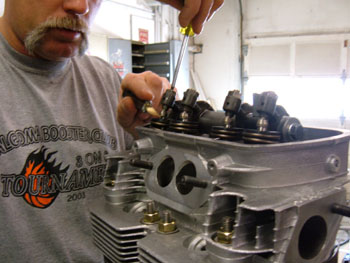

With the cylinder at top-dead-center on the compression stroke, the rockers are gapped at .006".
