Escapade Build Report

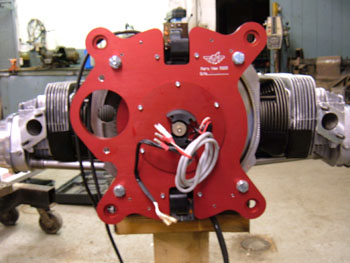

After the flywheel is on, the red accessory plate is installed.  The four holes at the corners are for the engine mount and the larger hole to the left is for the starter.

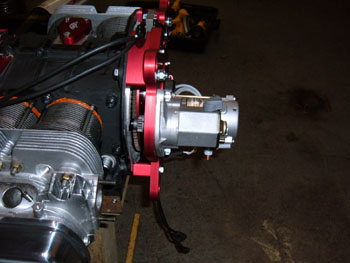

The starter and the generator are installed on the back of the accessory plate.  Also, two plug wires are installed on the top, and two are hanging below the engine.  The other four wires will be connected to the coils on the firewall at the final installation.

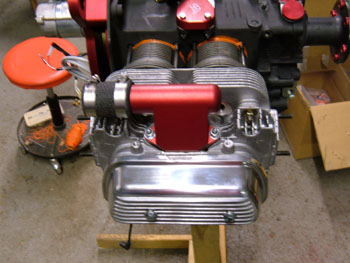

The red piece here is for the intake.  The "Y" shaped stainless steel pipe plugs into the black piece of hose.

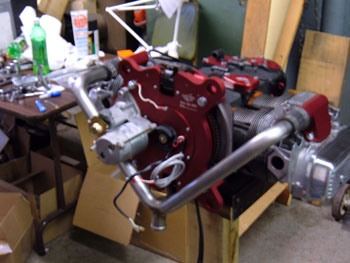

The intake manifold is now installed by tightening the hose clamps.  The Aero-Carb attaches to the bottom of the pipe.
