| Note: Frequency recently changed (04/07/07) to 444.050! | ||||||||||||||||||||
| Minot | ||||||||||||||||||||
| 46-53-29N 123-25-01W 1730 ft 444.050 +5 MHz 118.8 Hz 145.630 (simplex) packet 1200 baud |
|
|||||||||||||||||||

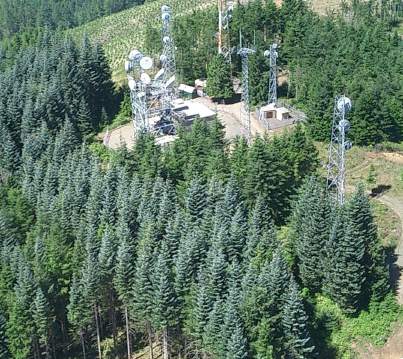

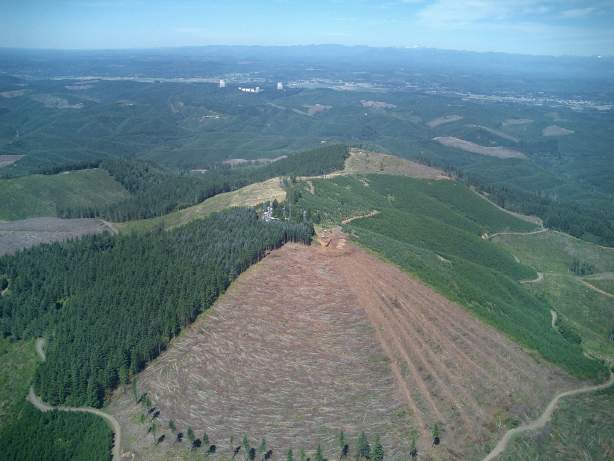

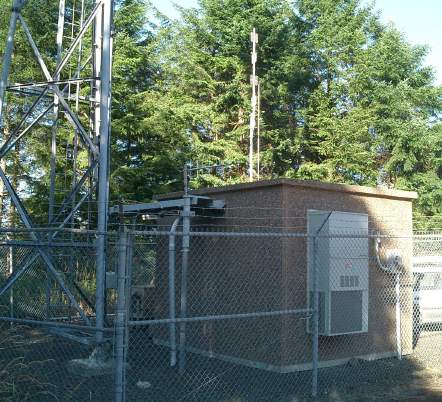

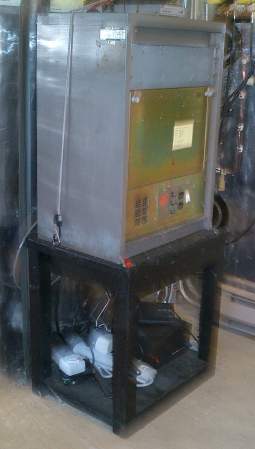

| Minot is in Southeastern Grays Harbor County, a few miles south of Elma. The coverage extends to most of the county as well as portions of Pacific, Mason and Lewis counties. The repeater is a GE MASTR-II continuous duty base station with a Phelps-Dodge 6-cavity bandpass duplexer and a dual-band 9-dB vertical antenna about 60 feet up the tower. There is a pair of phased 10.5 dB yagi antennas, giving a total gain of 13.5 dB, for the link into the rest of the network. The dual-band antenna is shared with the MINOT packet node on 145.630. |
||||||||||||||||||||
|
||||||||||||||||||||

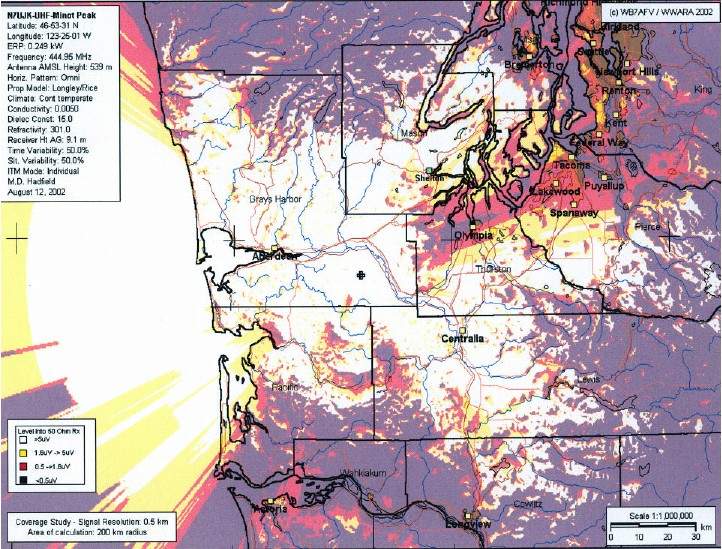

| Click Image for Coverage Plot >> | ||||||||||||||||||||
|
||||||||||||||||||||
|
||||||||||||||||||||
|
||||||||||||||||||||
