442.675 +5 MHz 118.8 Hz
147.340 +600 kHz 118.8 Hz
145.630 (simplex) packet 1200 baud
The UHF side is a GE MASTR-II base station chassis with a continuous duty power amplifier, housed in a 30-inch cabinet with Wacom BpBr duplexer. The UHF repeater runs 60-watts ERP.

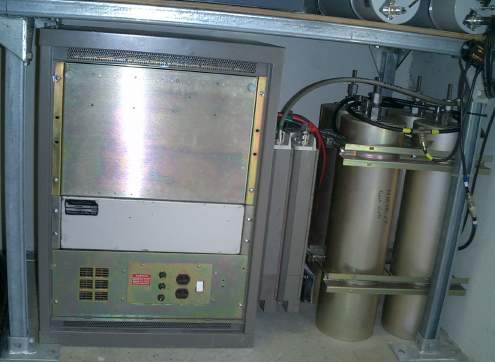

The VHF station comprises a GE MASTR-II 40-watt continuous duty station in its own cabinet, along with the power supply, controller, and control receiver. There is a Sinclair VHF duplexer standing next to the repeater. The VHF station runs 25-watts ERP.

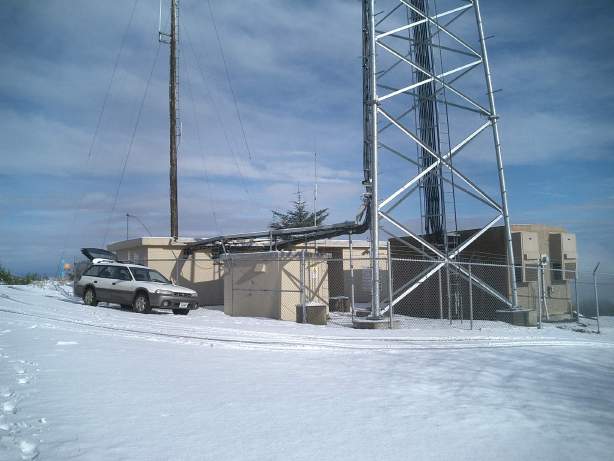

These two stations couple through a diplexer to share a Hustler G6-270 dual band 6dB antenna at about 80-feet up the tower (just above the lowest cluster of microwave dishes) through 120 feet of Times LMR-600.
A GE Mastr-II mobile transceiver running about 5-watts links the station to the rest of the network using a 10.5 dB yagi antenna mounted on the roof of the equipment building.
There is also a packet radio node "HOLYX", and a mailbox "HOLYMB" co-located but a separate station. Most Amateur packet stations in Pacific County can reach this node.
