| Tonys Turbo Wedge 235 Hovercraft |
 |
| Front view about Jan 2001 Before the Timber was sealed with 2 coats of Timber Tuff Epoxy sealer and the seams fibreglassed, as this shows I have very little room to move around the hover. |
 |

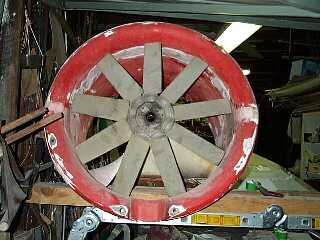

| Fan & Duct The duct has a 750mm 9 blade multiwing fan which I obtained second hand with the motor, I have updated the splitter plate to the later design.The mountain Range. I have since removed 3 blades which has inproved the Thrust but lowered cushion pressure slightly |
| Thank you for visiting my Hovercraft site. It took me ten years to get this craft finished, But very little of that time was actually construction time. I have updated this site a few times and added many new pages also all pictures can be enlarged by clicking on them or Right clicking and open in new Window, Please feel free to contact me with any Questions or comments, and I will try and answer them as best as I can. Tony.W |

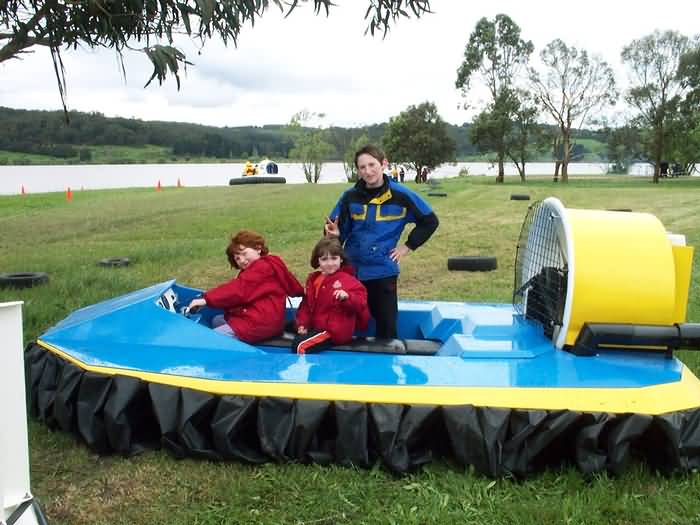

| This is what it finally looks like now its completed. The craft is powered by a Fuji Robin 440 Two stroke twin cylinder engine rated at 50 Hp, this runs an intergrated Fan that Supplys lift air as well as the thrust. The Fan is belt driven through a 2:1 reduction drive. |
 |
| Upturned Hull Hull freshly painted first coat only 15-02-2001. The skid blocks have 2 layers of kevlar over them as protection.There are 59 air feed holes around the perimeter of the craft, each hole has an extended segmemt finger skirt attached over it to form the skirt containing the air cushion. |
 |
 |
| Click images to enlarge |
| Engine Bay Here is the engine assembly sitting in place, without the duct, I was just trying to inspire myself to get it finished also checking it will fit. I had to Borrow my Engine back from the mechanic to test fit as he held onto it for around 6 Months |
| E-mail me |
 |
 |
 |

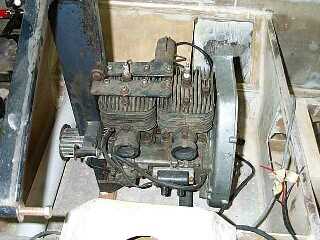

| Fuji Robin EC44PM 432cc 2 Cyl 2stroke 50 HP Air cooled engine Engine was finally repaired after 6 months at the repair shop . |
 |
