| Construction Photos |

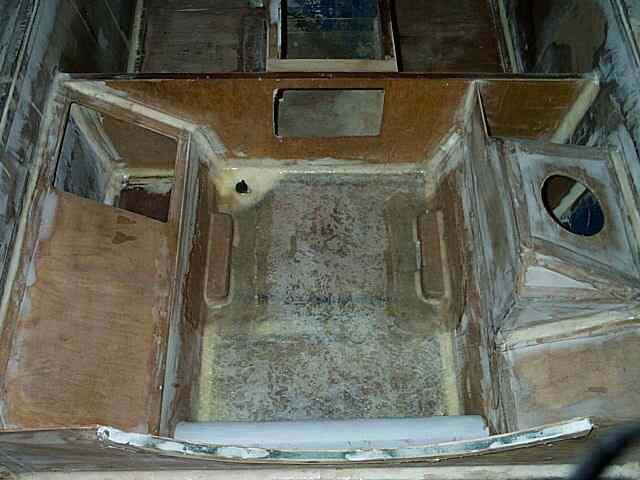

| Engine bay viewed from rear, R/H side will house the Air filters, L/H side is for storage and the air pickup, plastic pipe carries air to the Air filter Box |
 |

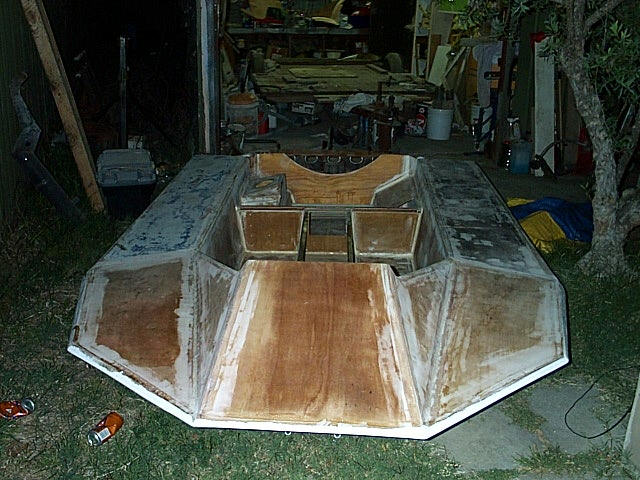

| Hover rear view, I carried her out of the Garage so I could flip it over after painting the underside. |
 |

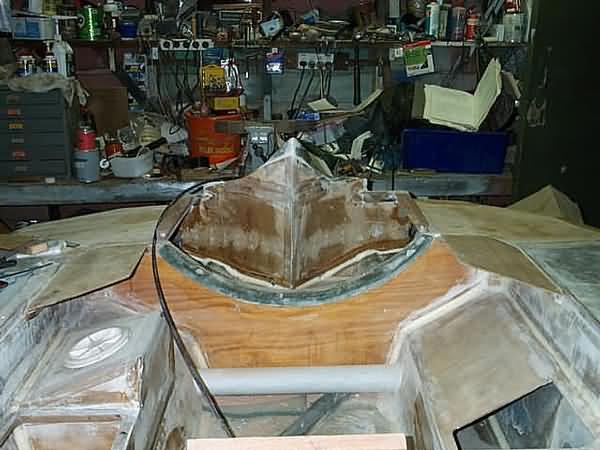

| To seal the panel seams I used an Electric Plane to remove some surface material then fibreglassed and filled with Epoxy paste. |
 |

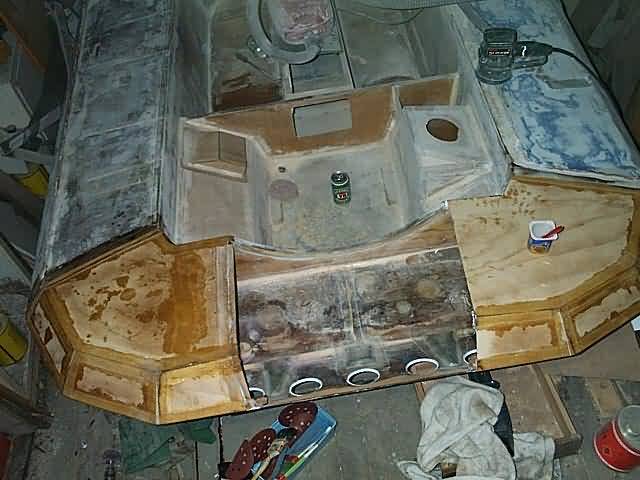

| OK back in the Garage the rear decks have been bonded and glassed on the outside, the panel joins also glassed on the inside. |
 |

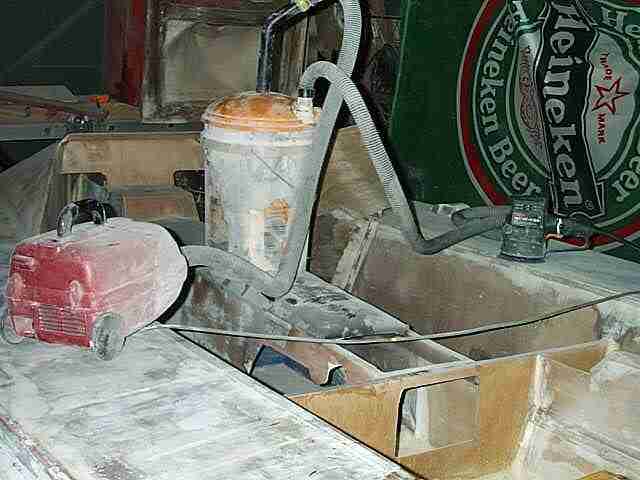

| The Triton dust extractor connected to an old vacuum cleaner and a random orbital sander |
| Engine mounts |
| PVC pipe |
 |
|
 |
 |

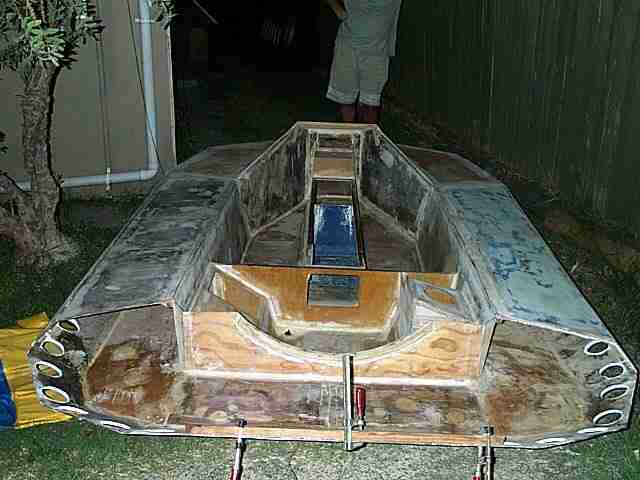

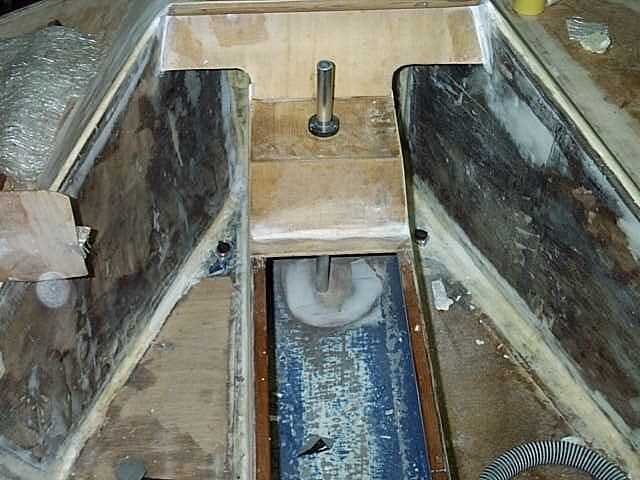

| The forward drain plugs now installed and the dashboard edges molded to cockpit sides |
 |

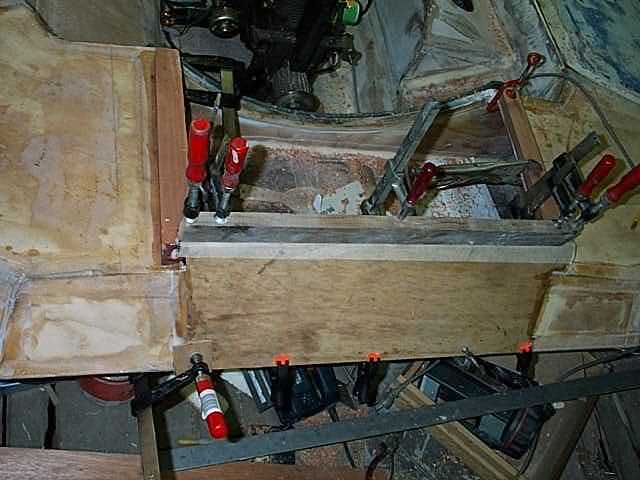

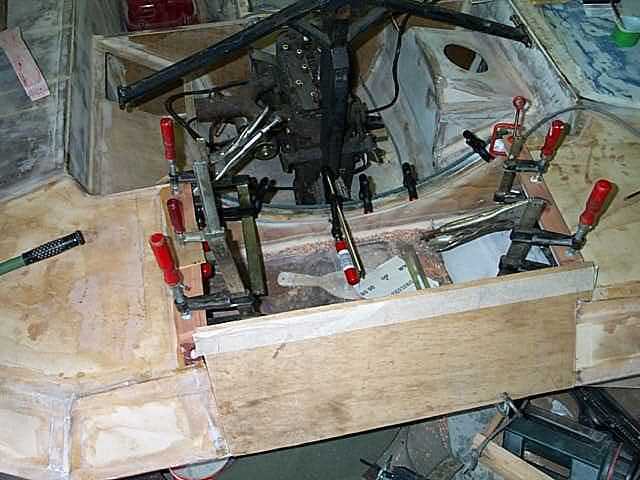

| The Duct support timbers glued and clamped the rear panel is grooved ready to be folded into place on top of the side timbers |
 |
| The rear panel is now folded and glued into place,when dry the panel joins can be glassed |
 |
 |

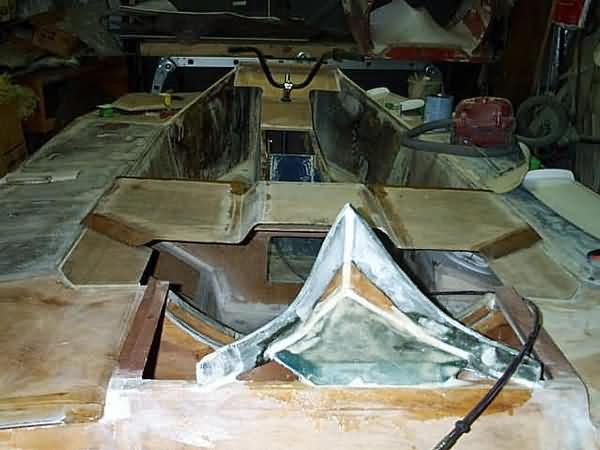

| The Air diverter panel is finally glassed Into place.The small corner panels are only screwed into place to insure a snug fit I wrapped them in cling wrap and then covered edges with a thick Epoxy paste when dry simply remove panel and the wrap |
|
