| Turbo Assembly |

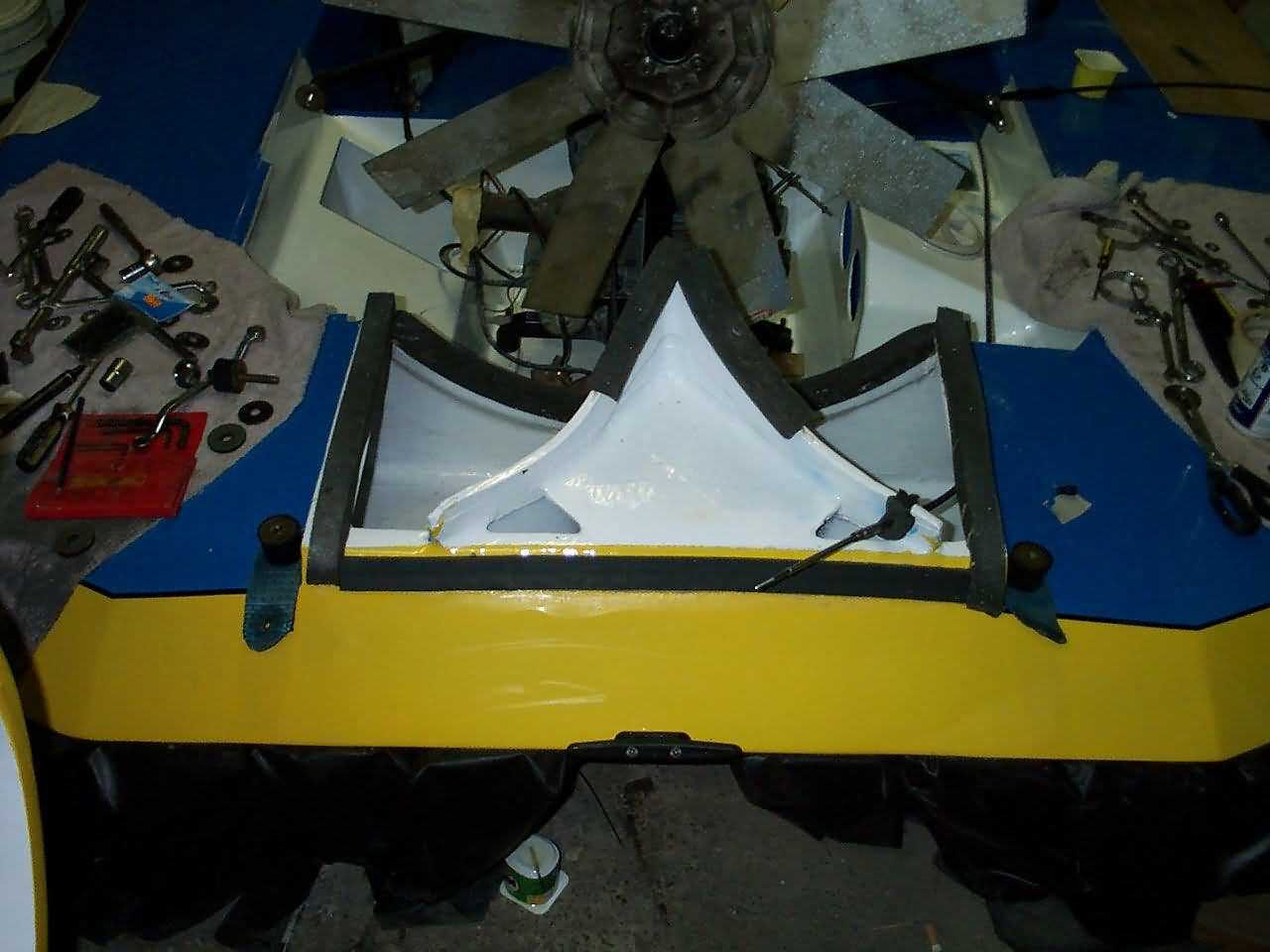

| Foam bonded around air plenum to seal duct |

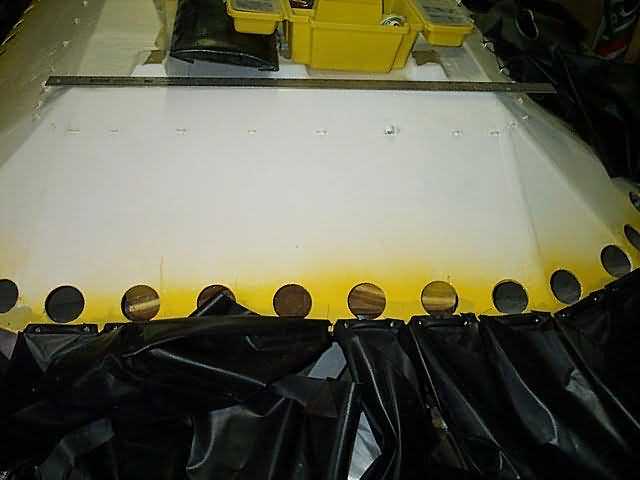

| Skirts screwed on using poly pipe to hold skirts |

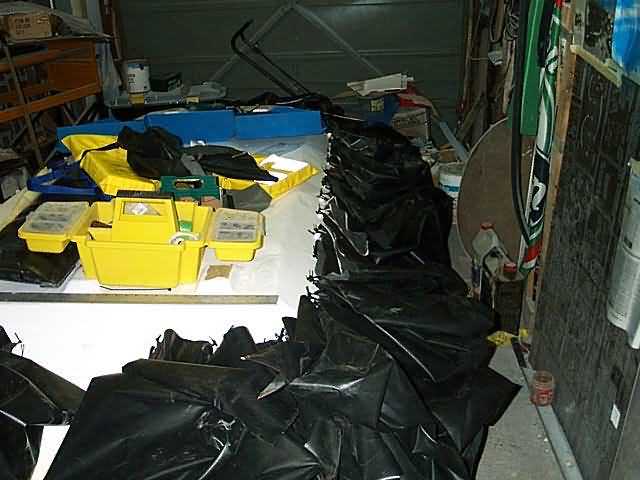

| Skirt bottoms tied on with cable ties |
 |
 |
 |
 |
 |
 |

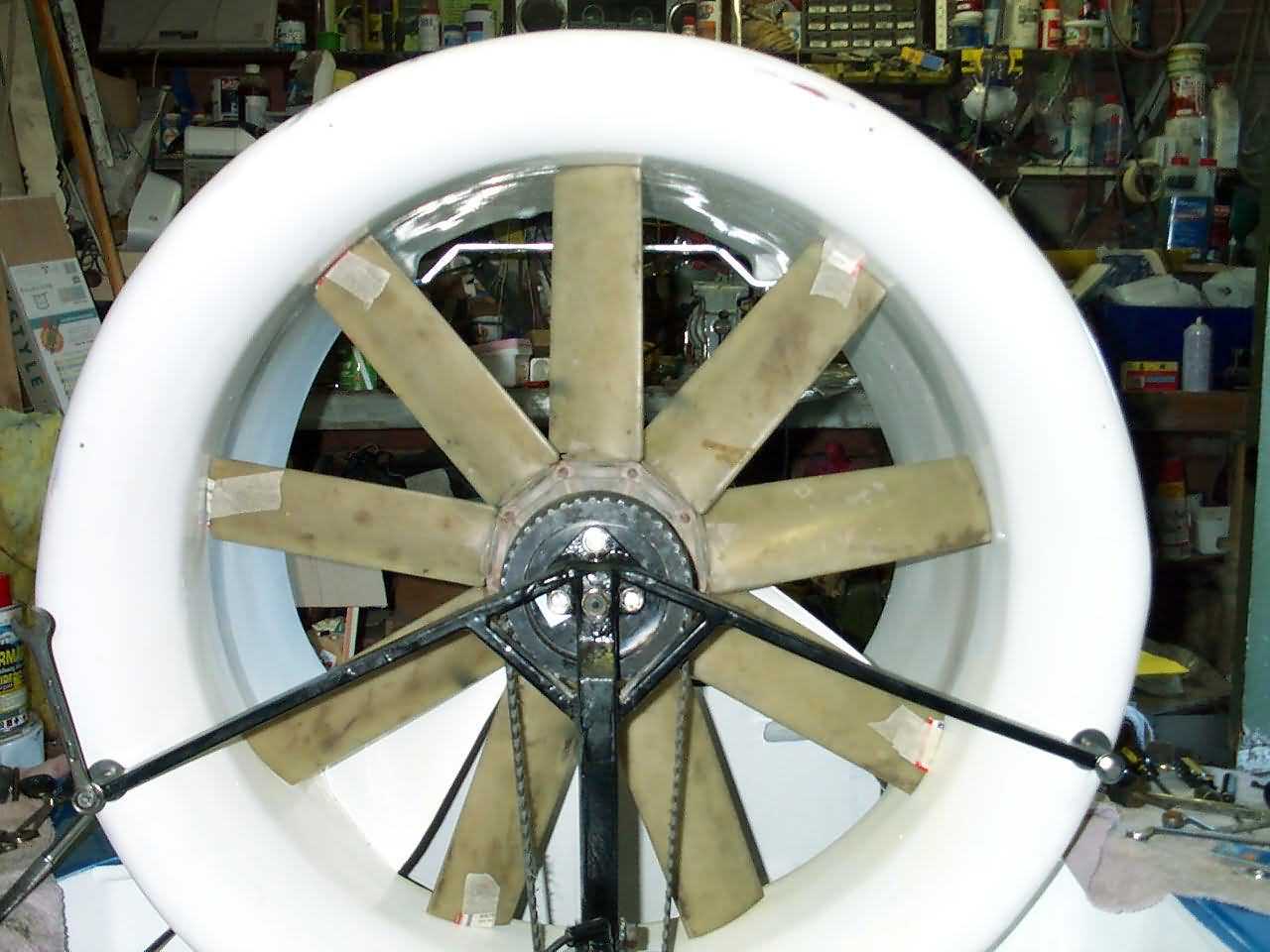

| Fan tip clearance less than 3mm seen here spaced with 2 thicknesses of thin cardboard taped to blade tips |

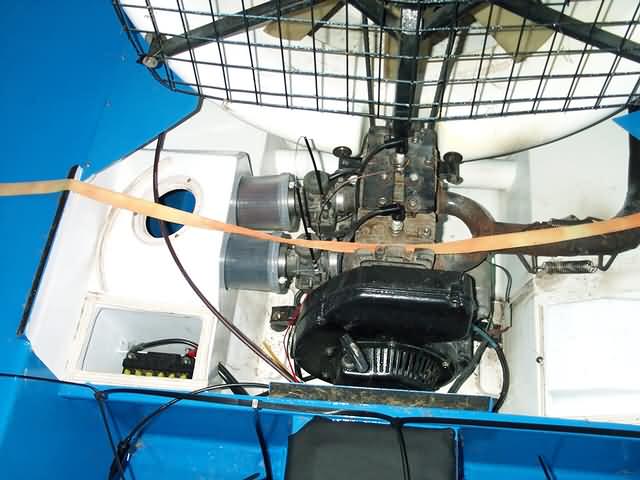

| Air filters now fitted inside plastic screw top jars |

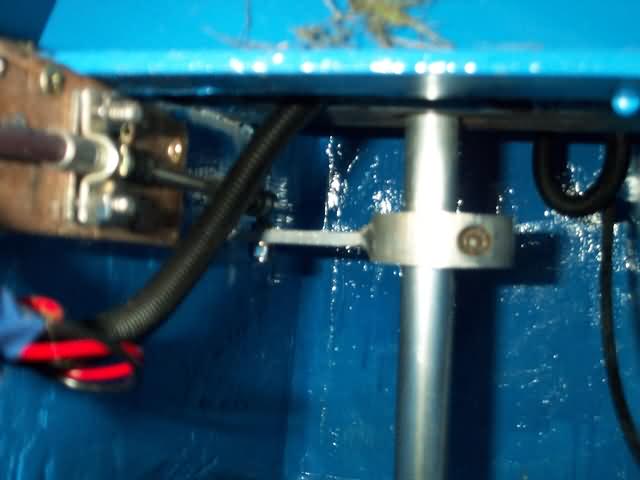

| steering driver clamped to shaft (thanks Pete) |

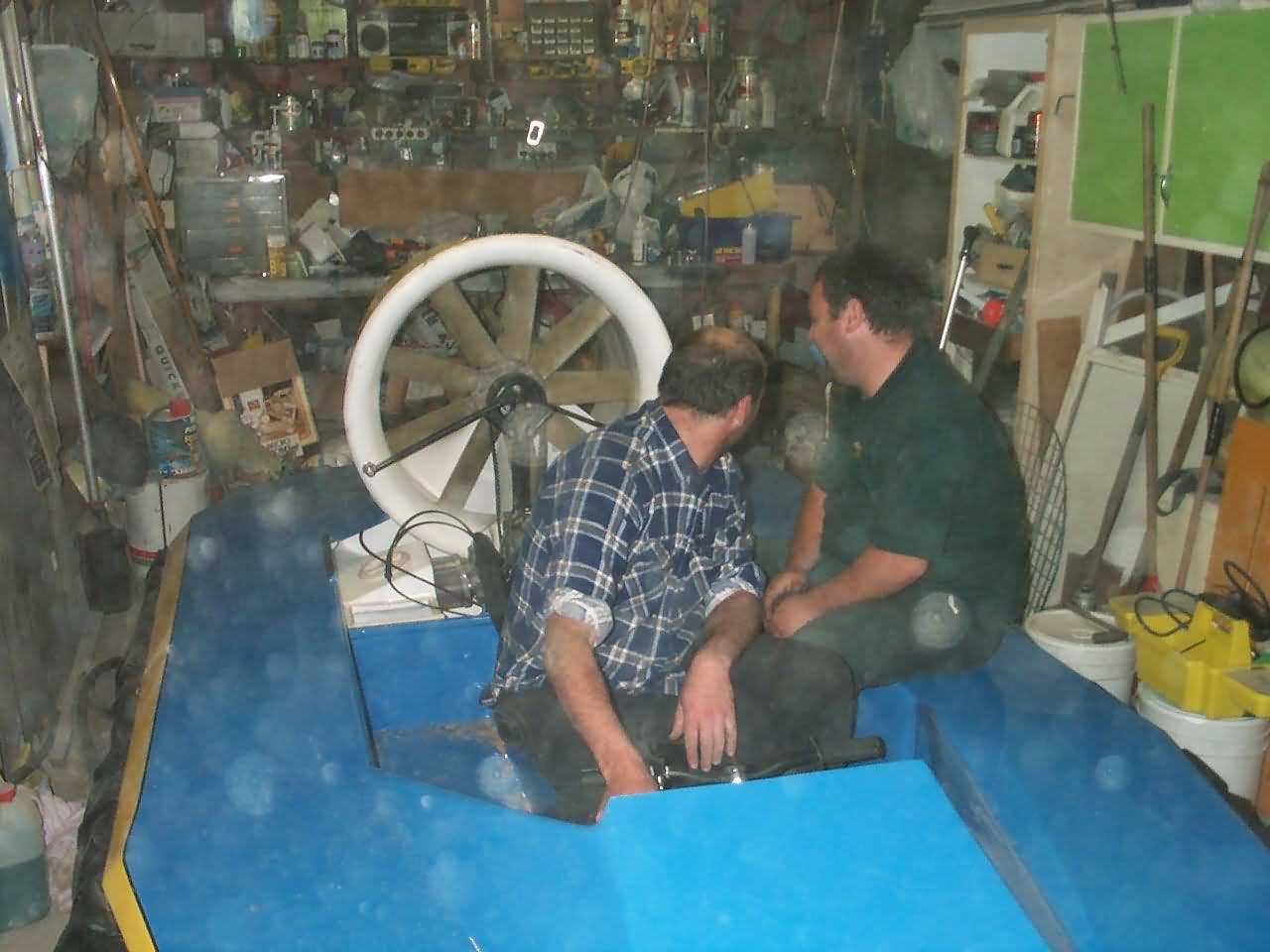

| Turning the Key for the first time, Rudders and guard still to be fitted But midnight is late enough, now I will sleep and Have sweet Hover Dreams I am off to the National Hover Rally in the Morning for its Maiden Voyage. |

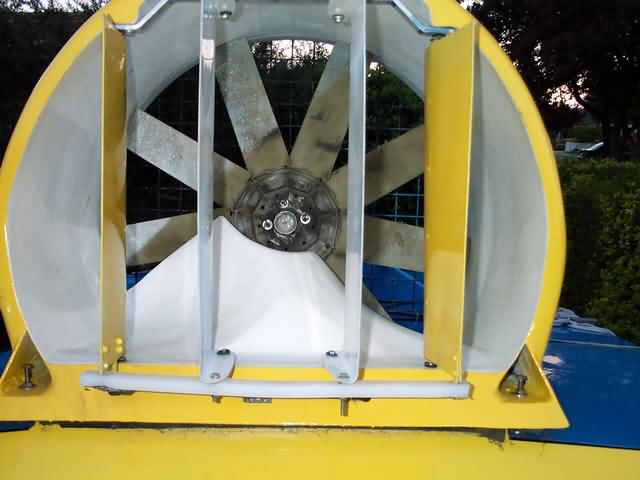

| Steering cable attached to outboard Rudder |

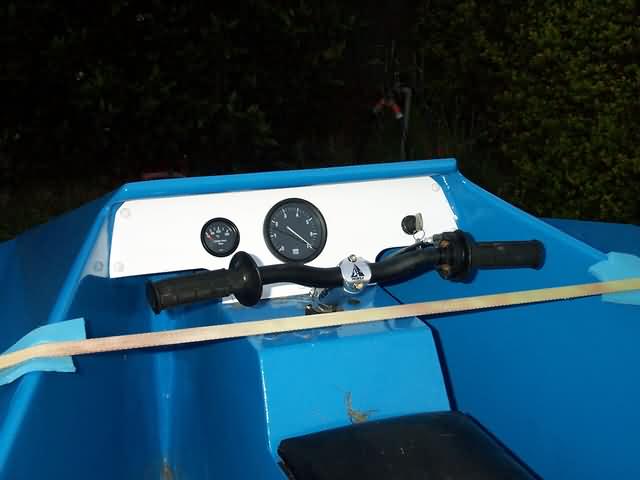

| Temp gauge and Tacho fitted along with Key |

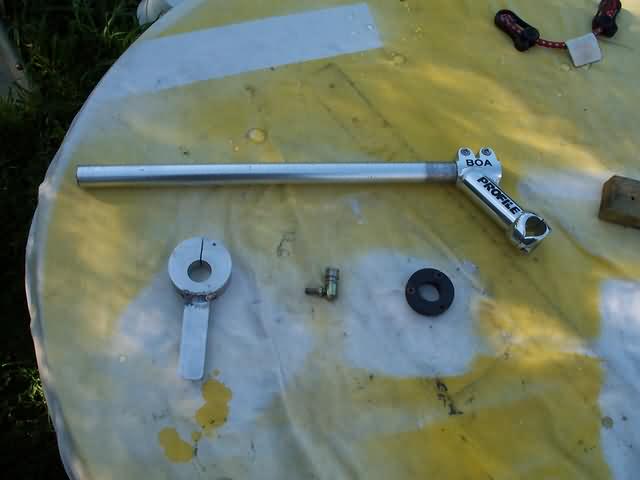

| Steering Shaft, Nylon Bush, Steering arm and quick release ball socket |

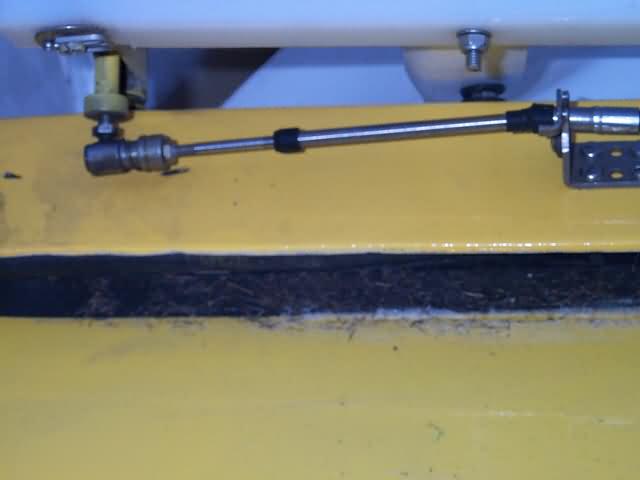

| Block of Nylon used as Rudder drive connector (scrounged from offcut bin) |
 |
 |
|
