MATLAB has a number of built-in functions for sampling rate conversion and multirate processing, Some of these include following.

• decimate

• interp

• upfirdn

• resample

 Decimating the signal

Example 1

 A discrete time signal is given by

y = sin(0.1л n)

Decimate the signal by a factor of 2 and 4.

Plot the original and decimated signals. Use the decimate function.

 Solution

ylabel('Orignal Signal')

ylabel('decimated by 2')

xlabel('Tiem')

ylabel('Decimated by 4')

Result

 Decimating the signal using resample

Example 2

 Repeat the above example with resample function

 Solution

ylabel('Orignal Signal')

ylabel('Decimated by 2')

xlabel('Time')

ylabel('Decimated by 4')

Result

 Interpolating the signal

Example 3

  Consider the signal of example 1. Interpolate the signal by a factor of 2 and 4 using interp function.

 Solution

ylabel('Orignal Signal')

ylabel('Interpolted by 2')

xlabel('Time')

ylabel('Interpolated by 4')

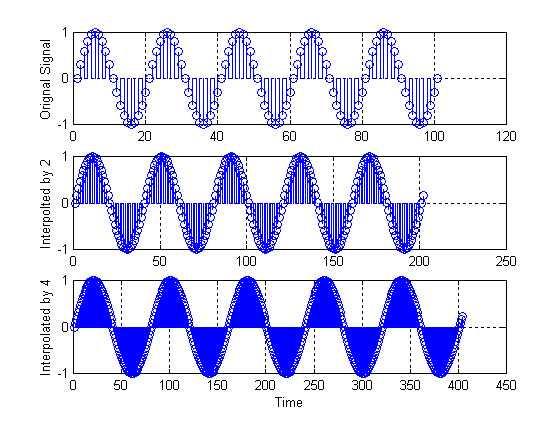

 Result

 Interpolating the signal

Exercise 1

  Repeat example 3 using resample function.

 Solution

ylabel('Orignal Signal')

ylabel('Interpolted by 2')

xlabel('Time')

ylabel('Interpollted by 4')

 Result

 Decimating & Interpolating the signal

Exercise  2 and 3

  Repeat example 2 to decimate the signal by a factor of 2/3

  Repeat example 2 to interpolate the signal by a factor of 5/2

 Solution

ylabel('Orignal Signal')

ylabel('Decimated by 2/3')

xlabel('Time')

ylabel('Interpollted by 5/2')

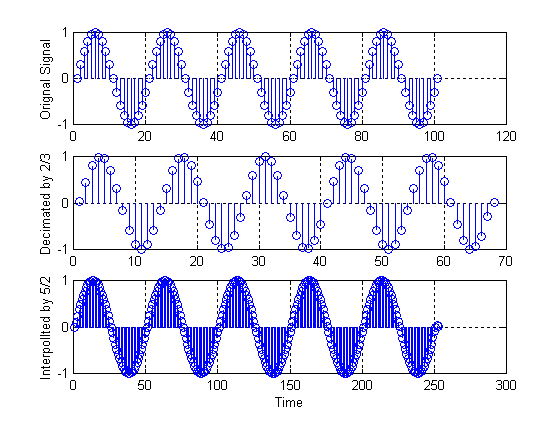

 Result

 Decimating & Interpolating the signal

Exercise  4

  A continuous time signal is characterized by the following function.

x(t) = Acos(2лf₁t) + Bcos (2лf₂t)

a) Generate, with the aid of MATLAB, a discrete time equivalent of the signal. Assume  a sampling frequency of 1 kHz, f₁ = 50 kHz,  f₂ = 100 kHz, A=1.5 and B = 1.

b) Interpolate the discrete time signal by a factor of 4 using interp command.

c) Determine the output  of the interpolator in step (b) by a factor of 4 using the decimate function

d) Plot the original, interpolated and decimated discrete time signals.

 Solution

ylabel('Orignal Signal')

ylabel('Interpolated by 4')

xlabel('Time')

ylabel('Decimated by 4')

 Result

 Decimating & Interpolating the signal

Exercise  5

  Repeat exercise "4" using  resample function

 Solution

ylabel('Orignal Signal')

ylabel('Interpolated by 4')

xlabel('Time')

ylabel('Decimated by 4')

 Result

 HELP

 DECIMATE

 DECIMATE Resample data at a lower rate after lowpass filtering.
Y = DECIMATE(X,R) resamples the sequence in vector X at 1/R times the original sample rate. The resulting resampled vector Y is R times shorter, LENGTH(Y) = LENGTH(X)/R. DECIMATE filters the data with an eighth order Chebyshev type I lowpass filter with cutoff frequency .8*(Fs/2)/R, before resampling. Y = DECIMATE(X,R,N) uses an N'th order Chebyshev filter. Y = DECIMATE(X,R,'FIR') uses the 30 point FIR filter generated by FIR1(30,1/R) to filter the data.
Y = DECIMATE(X,R,N,'FIR') uses the N-point FIR filter.
Note: For large R, the Chebyshev filter design might be incorrect due to numeric precision limitations. In this case, DECIMATE will use a lower filter order. For better anti-aliasing performance, try  breaking R up into its factors and calling DECIMATE several times.

 INTERP

INTERP Resample data at a higher rate using lowpass interpolation.
Y = INTERP(X,R) resamples the sequence in vector X at R times the original sample rate. The resulting resampled vector Y is R times longer, LENGTH(Y) = R*LENGTH(X).
A symmetric filter, B, allows the original data to pass through unchanged and interpolates between so that the mean square error between them and their ideal values is minimized.
Y = INTERP(X,R,L,ALPHA) allows specification of arguments L and ALPHA which otherwise default to 4 and .5 respectively. 2*L is the number of original sample values used to perform the interpolation. Ideally L should be less than or equal to 10. The length of B is 2*L*R+1. The signal is assumed to be band
limited with cutoff frequency 0 < ALPHA <= 1.0.  [Y,B] = INTERP(X,R,L,ALPHA) returns the coefficients of the interpolation filter B.

 RESAMPLE

 RESAMPLE Change the sampling rate of a signal.
Y = RESAMPLE(X,P,Q) resamples the sequence in vector X at P/Q times the original sample rate using a polyphase implementation. Y is P/Q times the length of X (or the ceiling of this if P/Q is not an integer).  P and Q must be positive integers.
RESAMPLE applies an anti-aliasing (lowpass) FIR filter to X during the resampling process, and compensates for the filter's delay. The filter is designed using FIRLS. RESAMPLE provides an easy-to-use alternative to UPFIRDN, which does not require you to supply a filter or compensate for the signal delay introduced by filtering.
Y = RESAMPLE(X,P,Q,N) uses a weighted sum of 2*N*max(1,Q/P) samples of X  to compute each sample of Y. The length of the FIR filter RESAMPLE applies is proportional to N; by increasing N you will get better accuracy at the expense of a longer computation time. If you don't specify N, RESAMPLE uses N = 10 by default. If you let N = 0, RESAMPLE performs a nearest neighbor interpolation; that is, the output Y(n) is X(round((n-1)*Q/P)+1) ( Y(n) = 0 if round((n-1)*Q/P)+1 > length(X) ).
Y = RESAMPLE(X,P,Q,N,BETA) uses BETA as the design parameter for the  Kaiser window used to design the filter. RESAMPLE uses BETA = 5 if you don't specify a value.
Y = RESAMPLE(X,P,Q,B) uses B to filter X (after upsampling) if B is a vector of filter coefficients. RESAMPLE assumes B has odd length and linear phase when compensating for the filter's delay; for even length  filters, the delay is overcompensated by 1/2 sample. For non-linear phase filters consider using UPFIRDN.
[Y,B] = RESAMPLE(X,P,Q,...) returns in B the coefficients of the filter applied to X during the resampling process (after upsampling).
If X is a matrix, RESAMPLE resamples the columns of X.
