HOW THE LENS WORKS
- First turn the power switch to
off on the camera (see How to turn it on
for directions).
To mount the lens: -Position the lens in the camera's bayonet mount so that the mounting indexes on the lens and the camera body are

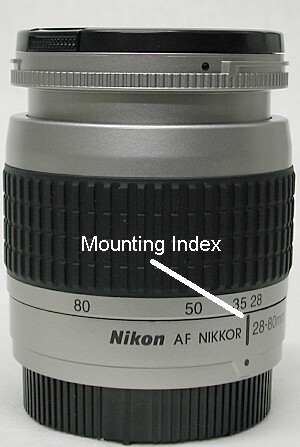

aligned. - The mounting index on the lens is a line near the base of the lens in between the word "Nikkor" and "28-80 mm." - On the

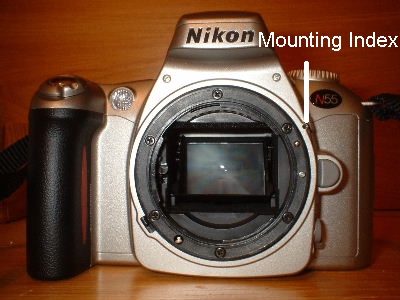

camera body, the mounting
index is a small circular raised circle and is located next to the film
rewind button and above the lens release button (the large gray button
that is on the right side of where the lens would normally
go). - Turn the lens counter-clockwise until you feel the click that signals it has been locked into place. photo from http://www.jjmehta.com/indepth/nikon_f55_all.htm photo from http://www.jjmehta.com/indepth/nikon_f55_all.htm To detach the lens: - Push and hold the lens release button, which is the gray button located directly on the side of the lens (if you are looking into the lens, it is on the right side, beneath the mounting index on the camera body). ![]() - As you hold the release button, turn the lens clockwise to detach the lens. - *When the lens is detached from the camera body, always make sure to attach the supplied caps to the back of the camera lens and the the camera body for protection. |
