| 2 The SIP's 2 | |||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
|||||||||||||||||||||||||||||||||||||||||||||||||

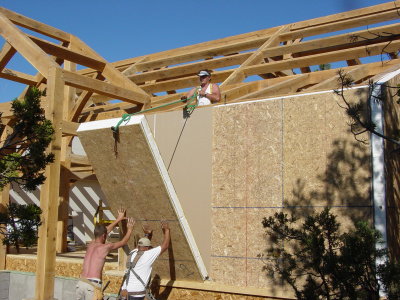

| 05/21/2005 SIPs being placed on the front right side of the home. |
|||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
|||||||||||||||||||||||||||||||||||||||||||||||||

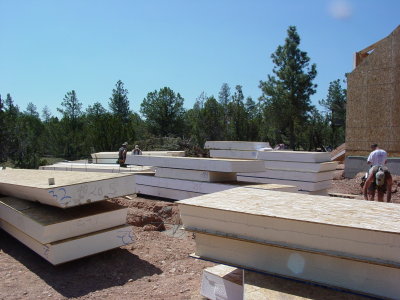

| 05/22/2005 The guys are staging the roof panels. These panels are 10 inches thick and have an R value of R42. The wall panels are 6 1/2 inches thick and are an R24. |
|||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
|||||||||||||||||||||||||||||||||||||||||||||||||

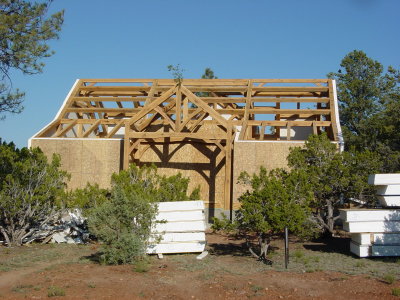

| 05/22/2005 This shot shows the home before we started the roof panels. |
|||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
|||||||||||||||||||||||||||||||||||||||||||||||||

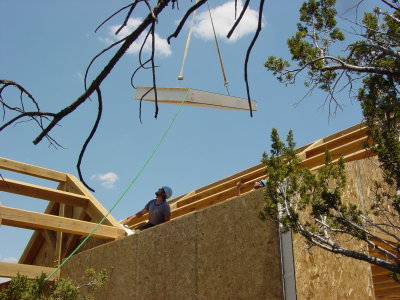

| 05/23/2005 This is the first roof SIP being flown into place. |
|||||||||||||||||||||||||||||||||||||||||||||||||
