Were it all begins

STEP 1

This is were all the boat building begins, below is a picture of the steel fabrication workshop it shows the first and final steps in building a boat.

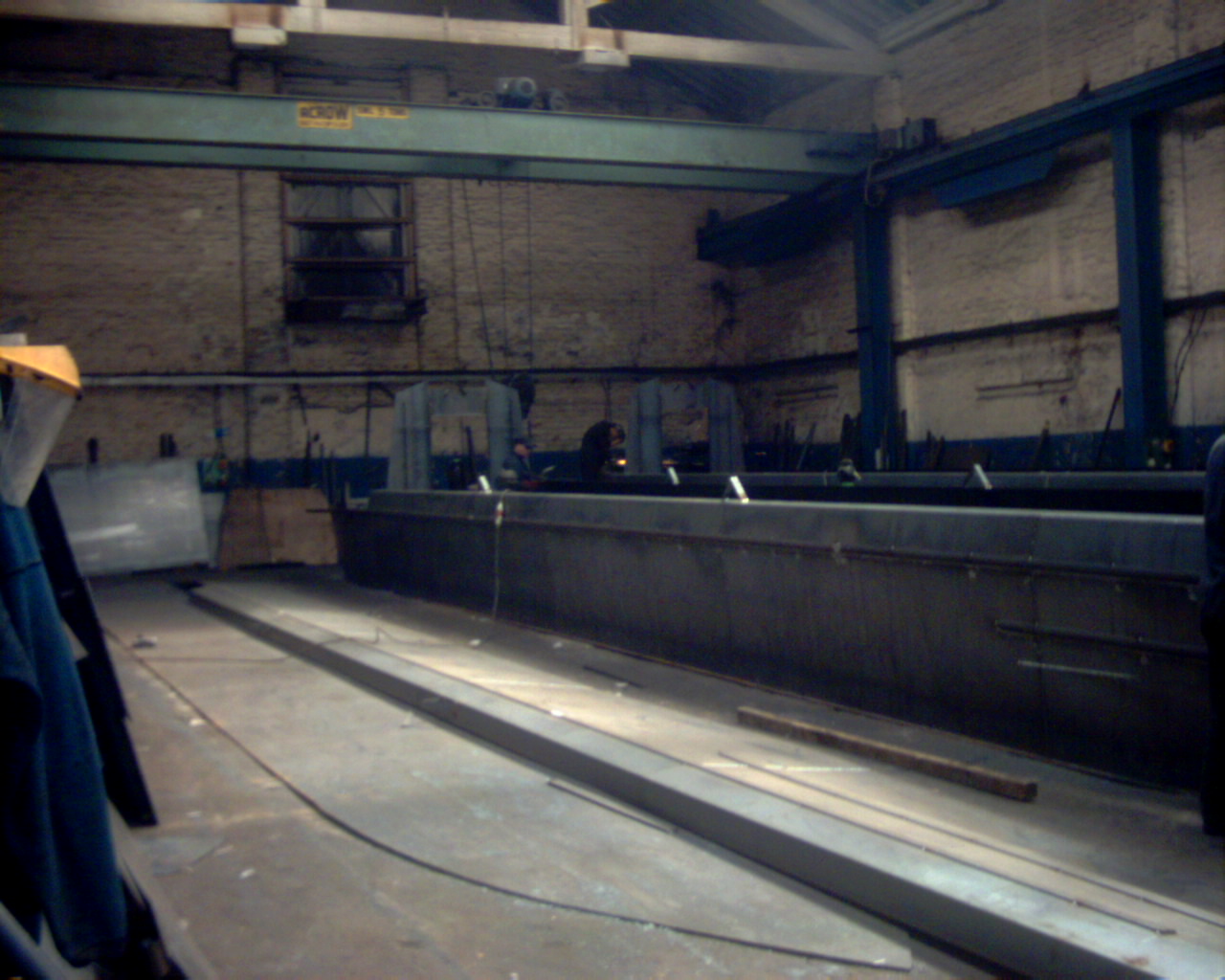

The Hull sides need to be welded together for work to begin. below shows a picture of the hull sides that have been laid out on the work shop floor for work to start.

STEP 2

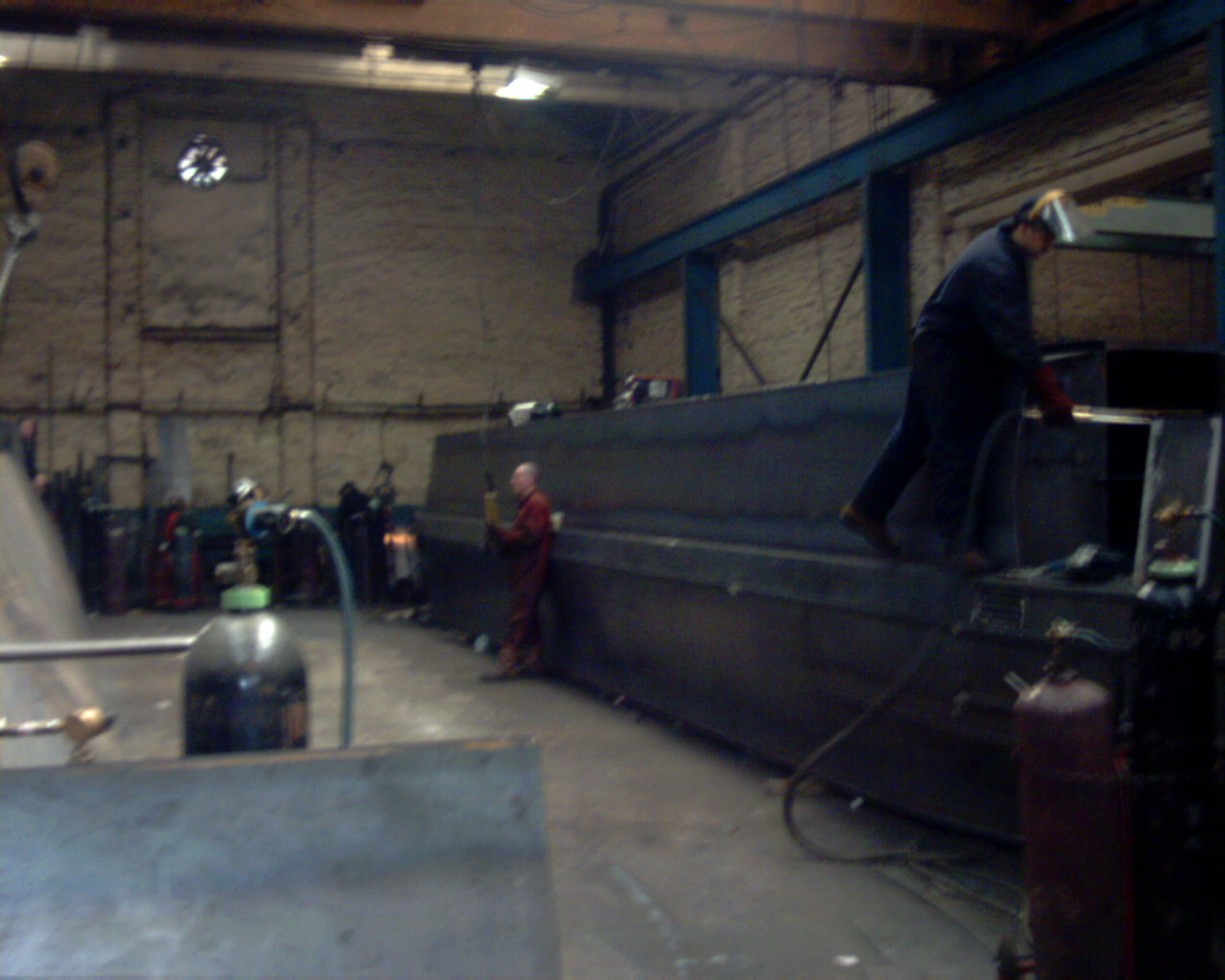

Once all the hull side, cabin sides, ribs and roof are on the "shell" is virtually complete. this picture below shows a shell complete and a worker grinding out any rough edges. If a customer was just requiring a "shell" then this would be complete, but if the customer required anything more then the shell would be transferred to the separate fitting out workshop.

STEP 3

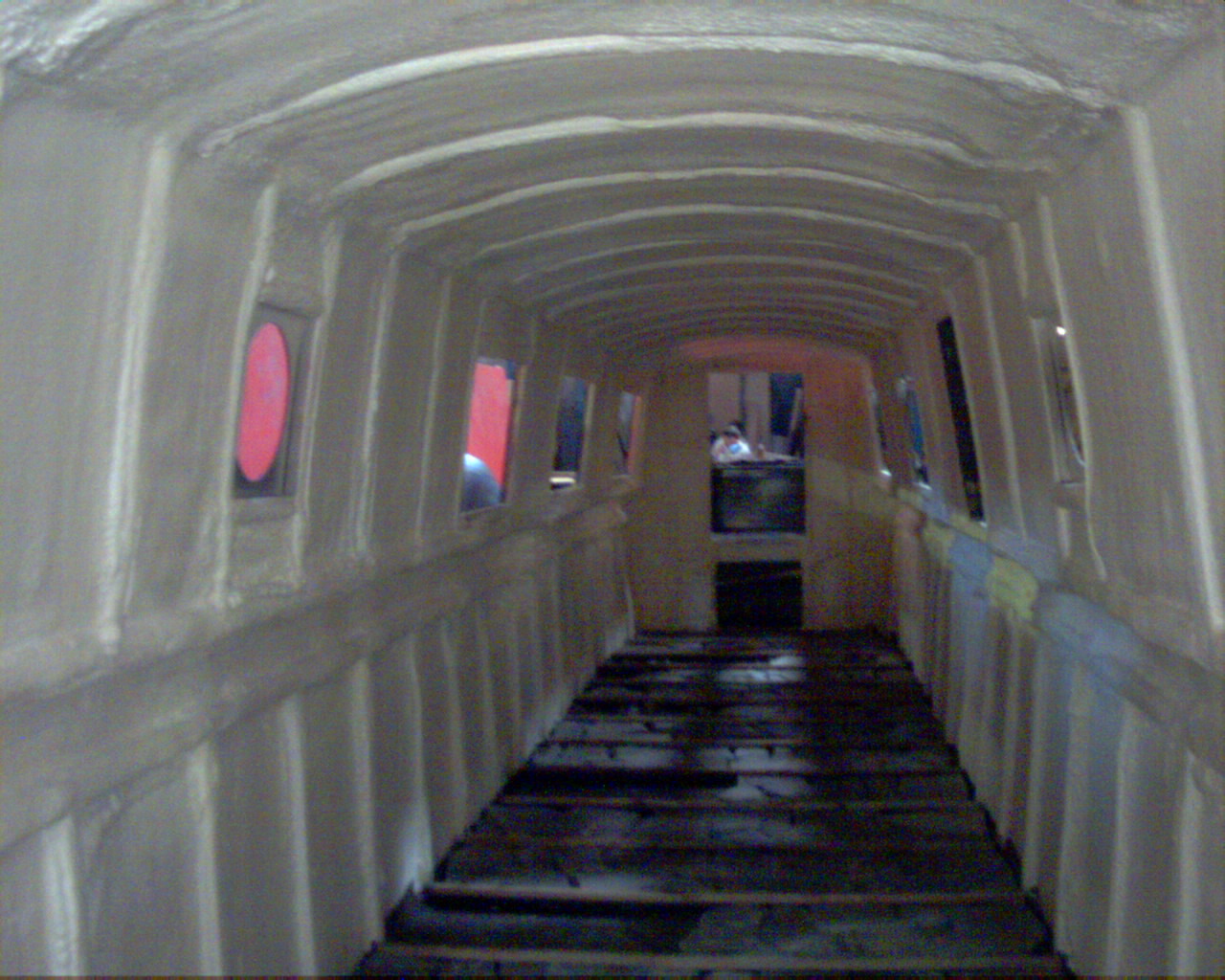

The next step after the boat has been transferred from the welding fabrication workshop to the joinery workshop will be to spray foam the shell to ensure insulation. This is what it will look like when the spray foam is complete. The boat will also need to be battened out, this means that concrete flags will need to be laid out on the base of the hull to insure the weight of the boat is distributed evenly.

STEP 4

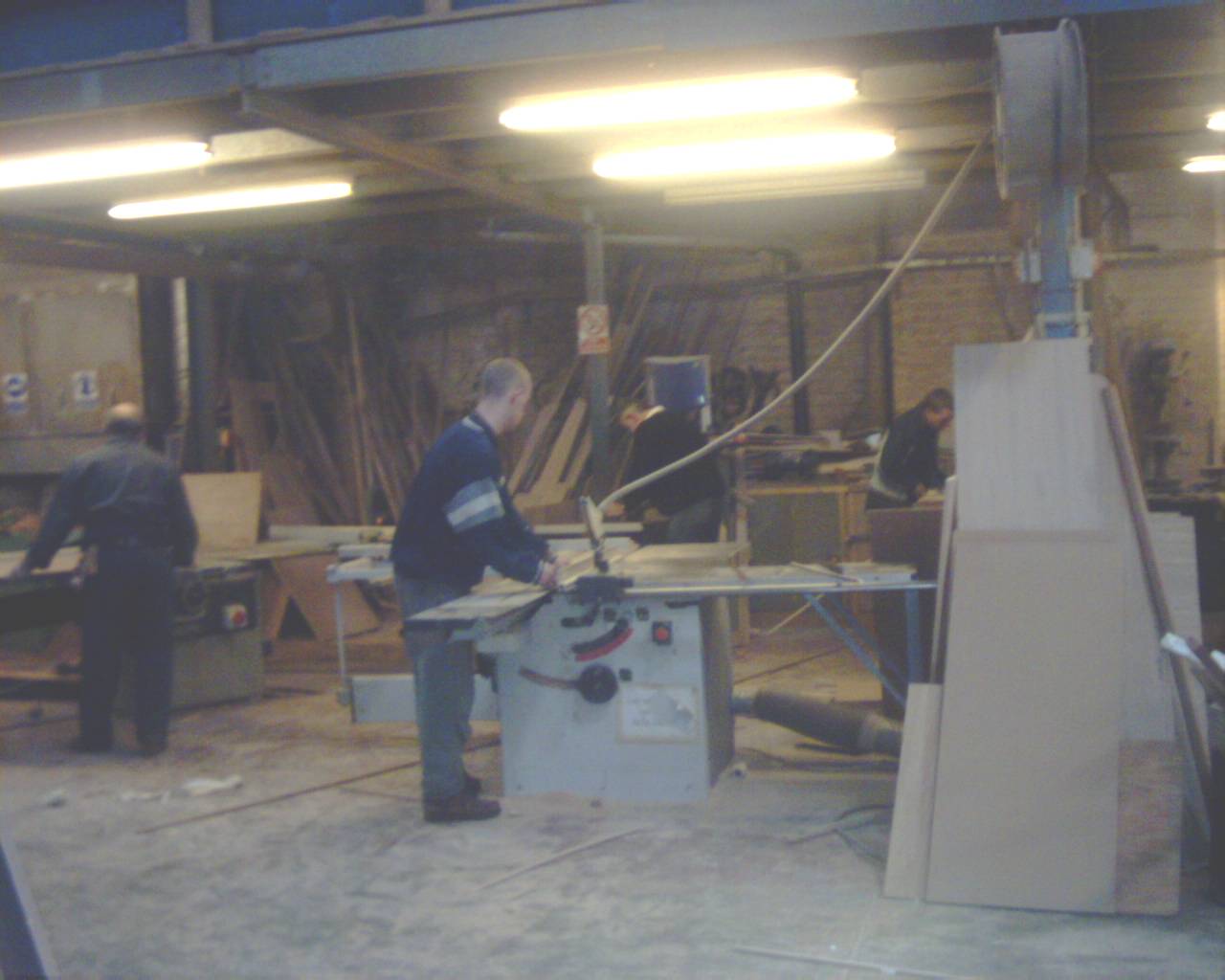

This is the workshop were all wooden appliances are made then fitted into the boats by professional joiners.

STEP 5

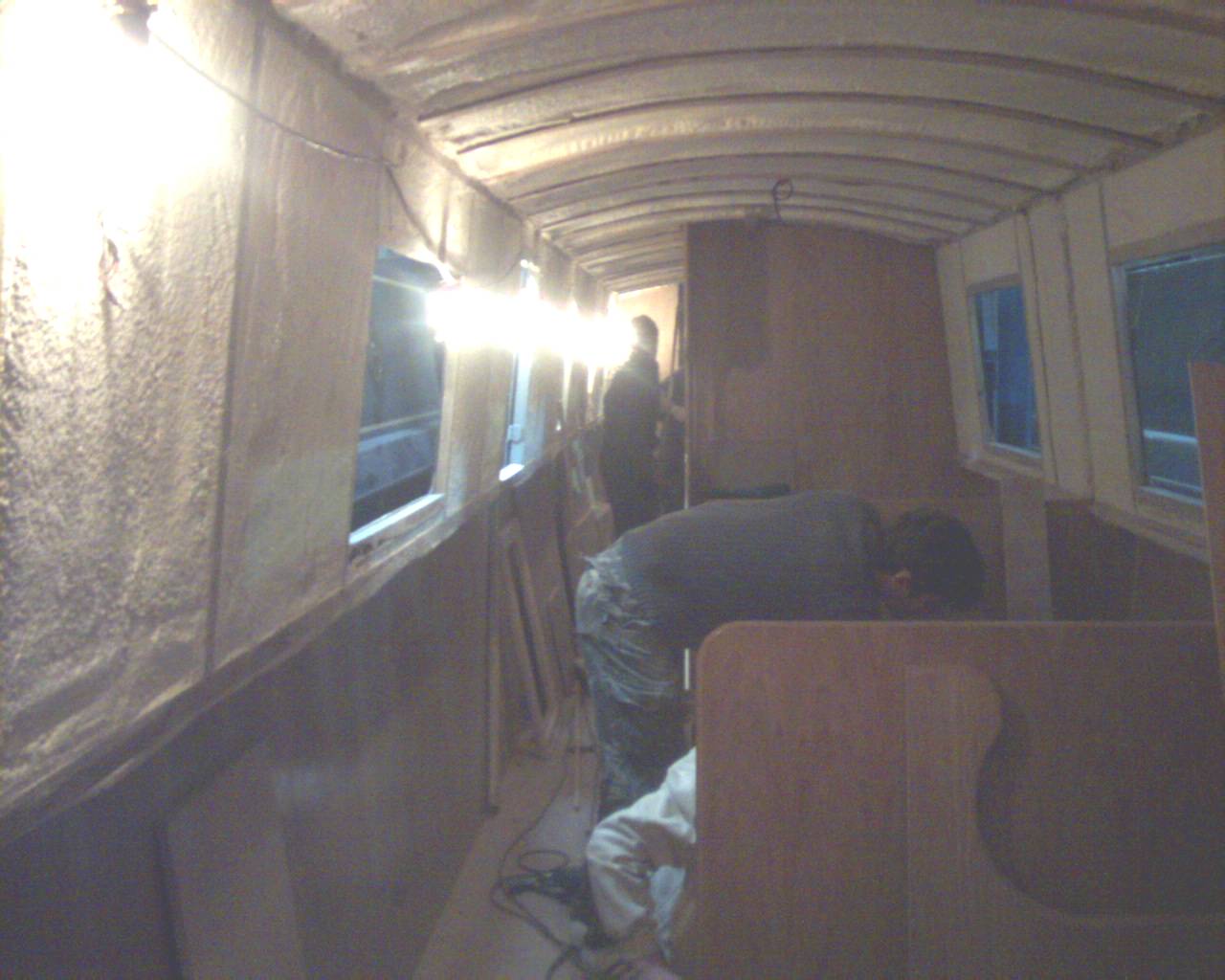

This picture below shows joiner's fitting the flooring, cupboards, kitchen, hull sides etc. as you can see this boat has already been spray foamed and central heating fitted.
