For this connector is necessary only one modification....

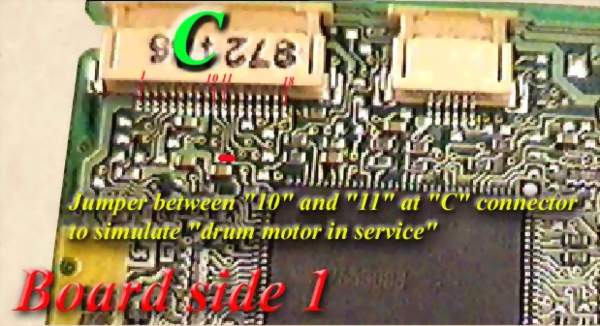

1. In below picture is figured one jumper soldered between two pins 10 and 11 on C connector. This one simulate "Drum motor in service" on video camera. Without this jumper video camera will stop after few seconds, giving one error code signal.
 |
Solder the jumper carefully. Use very thin wire on soldering gun (0.2mm) and Voltage variation device for controlling very well soldering temperature. Also use one big magnifier to complete the job.
