For this connector is necessary only two modification....

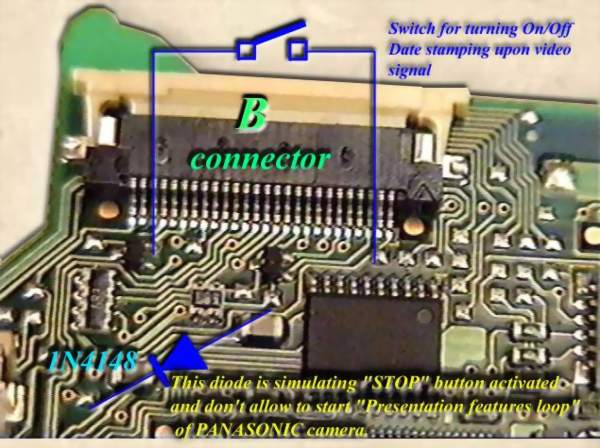

           1.  In below picture is figured one diode 1N4148 fixed between two points on the board....  This one simulate "STOP"  button  pressed on video camera, and preventing to start Presentation feature loop for PANASONIC video camera, when put power supply switch in ON position.

          2.  Second modification it's to fix one switch between pin 1 and 21...  Command for switch is coming from Controller, and is setting ON/Off  DATE and TIME stamping on video signal. This feature is useful for to know exactly when recorded events occurred. Personally I prefer to use DATE and TIME stamping by sound, because sometime video stamping can make to lost important details....  For this reason I used one modified Talking Clock for DATE and TIME stamping on video signal.
