Surveillance System

I started to develop this system three years ago. That time I was living in Kuwait, were I spent almost five years. One Company requested me to build one Surveillance System for theirs office...

All commercial systems on the market was expensive and I thought that is possible to use some ordinary items in my project.

I bought four PANASONIC Handy cameras (cheapest that time, around 250$ each) without any accessories, like accumulator, tape cassette, bag.......

Also I used one JVC Video recorder with four heads and SLP feature .

Four PIR Motion detectors. (I used only some parts from devices).

Two JVC TV Set, used as color monitors.

One Talking clock (This was used for stamping time in audio mode for recorded video events).

Different mechanical parts and electronic components.

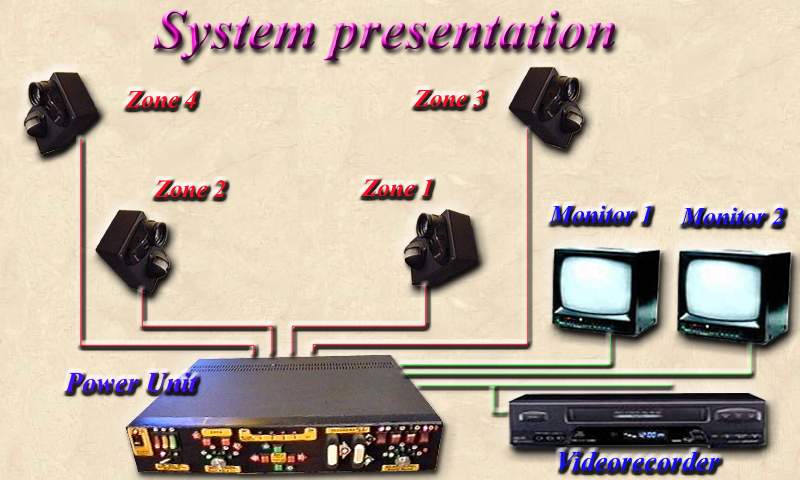

"Watching" over four zone, recording events in AUTOMAT Mode or instant in MANUAL Mode.

Easy achieved Camera position due "PAN & TILT" positioning system.

Visualize four zone over two monitors by Electronic / Manual switch system.

Stamping Events Time by Video or Sound (at your choice).

Recording Events in heraldically order, depending on importance which are established at setup time.

"See" through textile masks, which eventually are covering intruders faces, by Video cameras (with

additional lens).

Now, I'm working to develop a new System, based on MICROCONTROLLER PIC Generation from MICROCHIP.

Also a LCD display will visualize System status, and a new design for case...

Description of the System and also construction details are in following pages.....
