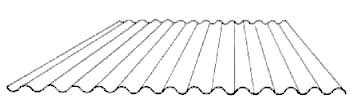

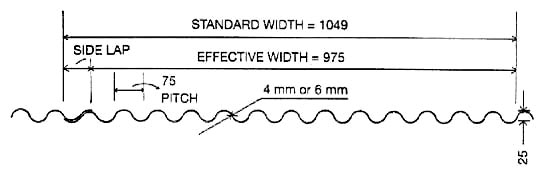

Exterior roofings claddings others � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � back ��� SUPER ONDULA Roofing Tiles���������� PLACA ROMANA Roofing Tiles ������� PROFILE 6 Corrugated Tiles���������� COVERIT & ARDEX Corrugated Tiles COVERIT & ARDEX Corrugated Sheets Lightweight � Thermal insulation properties � Suitable for most types of industrial and commercial buildings � Can be painted at job site � Incombustible � Reduces the noise of "Rain Pelt" � Insect and vermin proof � Produced to the strictest quality control standards. 1. The Product 2. Specifications TYPE COVERIT ARDEX Color Natural Cement Gray Natural Cement Gray Surface Texture External Surface Smooth External Surface Smooth Thickness 4.0 mm and 5.0 mm 4.0 mm Number of Corrugations Fourteen (14) Fourteen (14) Standard Lengths 1800, 2100, 2400, 2700, 3000 mm 1800, 2100, 2400, 2700, 3000 mm Standard Width Overall 1049 mm 1049 mm Effective Covering Width 975 mm 975 mm Effective Covering Area/sheet (for 8' long) 2.08 sq.m. (22.39 sq.ft.) 1.44 sq.m. (15.50 sq.ft.) Standard Weight/Unit Area 6.16 kg./m2 (4mm) 6.16 kg./m2 Density 1.35 kg./dm3 (93.64 lbs./ft3) 1.35 kg./dm3 (93.64 lbs./ft3) Minimum Flexural Strength 160 kg./cm2 (2276 lbs./in2) 160 kg./cm2 (2276 lbs./in2) Maximum Purling Distance 700 mm 700 mm Minimum Roof Slope 15� 15� Overlaps: Side Lap End Lap 1 corrugation 250-300 mm 1 corrugation 250-300 mm 3. Properties Coverit/Ardex Corrugated Sheets meet the high quality standard in line with the company's requirements. Among its first rate characteristics are: Coverit/Ardex Corrugated Sheets have successfully withstood severe weather conditions. They are rustproof, do not twist nor splint, do not corrode due to the action of salt air, acid fumes and gases. They are even immune to attacks by vermin and rodents. Coverit/Ardex Corrugated Sheets are not affected by the extremes of temperature. They can stand very high and very low temperature without loss in strength and usefulness. Due to the low thermal conductivity of the sheets, the roofs are comfortable both in very hot and very cold climates. They are therefore very successful especially in tropical regions. Coverit/Ardex Corrugated Sheets are impermeable and hence provide waterproof surfaces. They are incombustible. In cas of fire or at higher temperatures, the sheets do not burn and provide an obstacle to the spread of the fire. Coverit/Ardex Corrugated Sheets are very economical. No painting is required. They are easily and expeditiously erected and require no maintenance. No deterioration occurs. On the contrary, they are found to strengthen with age. 4. Moulded Accessories
