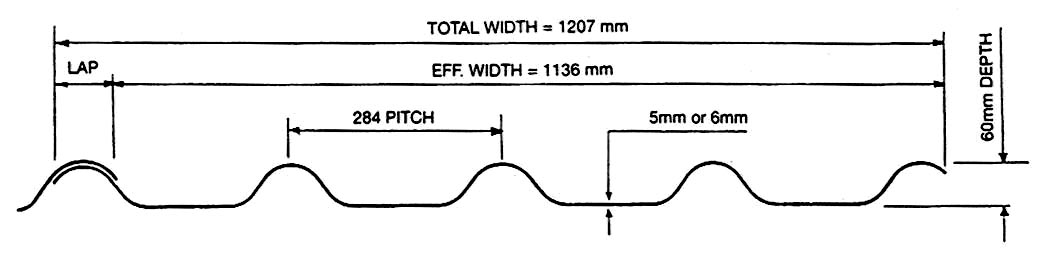

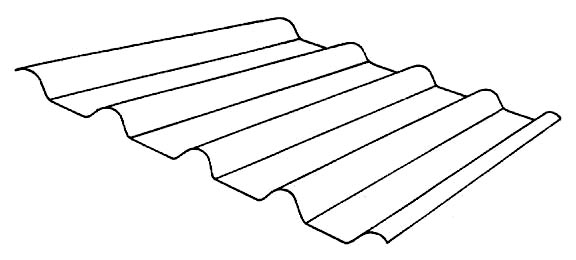

Exterior roofings claddings others � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � back ��� SUPER ONDULA Roofing Tiles���������� PLACA ROMANA Roofing Tiles ������� PROFILE 6 Corrugated Tiles���������� COVERIT & ARDEX Corrugated Tiles PLACA ROMANA Roofing Tiles Placa Romana, with its distinctive profile, creates beautiful roof lines for structure of all types. The predominantly large vertical corrugations transversed by fine horizontal lines created by ribbing of the sheets, blends well with either the modern or traditional style of architecture. 1. The Product 2. Specifications Color Natural Cement Gray Surface Texture One Surface Smooth Number of Corrugations Four (4) Standard Thickness 5 mm & 6 mm Standard Length 810 mm (32") Standard Width 1207 mm Effective Width 1136 mm Standard Weight 7.56 kg./m2 Weight/Unit Area (excluding overlaps) 7.70 kg./m2 Density 1.50 kg./dm3 Minimum Flexural Strength 160 kg./cm2 Maximum Purling Distance 610 mm (2') Minimum Roof Slope 20� Overlaps: Side Lap End Lap 72 mm 200 mm 3. Properties Placa Romana roofing tiles meet the high quality standard in line with the company's requirements. Among its first rate characteristics are: Placa Romana roofing tiles have successfully withstood severe weather conditions. They are rustproof, do not twist nor splint, do not corrode due to the action of salt air, acid fumes and gases. They are even immune to attacks by vermin and rodents. Placa Romana roofing tiles are not affected by the extremes of temperature. They can stand very high and very low temperature without loss in strength and usefulness. Due to the low thermal conductivity of the sheets, the roofs are comfortable both in very hot and very cold climates. They are therefore very successful especially in tropical regions. Placa Romana roofing tiles are impermeable and hence provide waterproof surfaces. They are incombustible. In cas of fire or at higher temperatures, the sheets do not burn and provide an obstacle to the spread of the fire. Placa Romana roofing tiles are very economical. No painting is required. They are easily and expeditiously erected and require no maintenance. No deterioration occurs. On the contrary, they are found to strengthen with age. 4. Moulded Accessories
