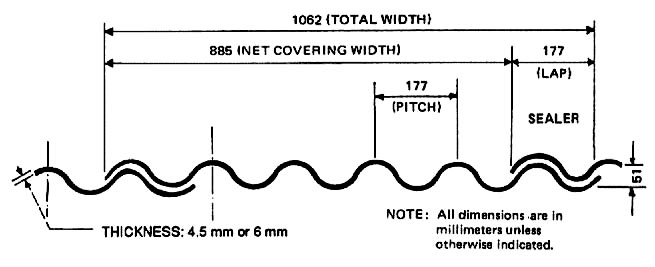

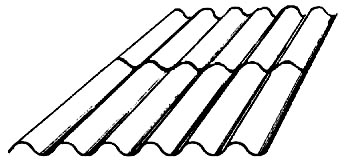

Exterior roofings claddings others � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � back ��� SUPER ONDULA Roofing Tiles���������� PLACA ROMANA Roofing Tiles ������� PROFILE 6 Corrugated Tiles���������� COVERIT & ARDEX Corrugated Tiles SUPER ONDULA Roofing Tiles Super Ondula, attractive and durable roof finish, gives a pleasing tile effect at a competitive price for housing, offices, beach complexes, etc. Non-combustible, rot proof, cool and quiet. Produced with the highest quality control standards. 1. The Product 2. Specifications Thickness 4.5 mm or 6.0 mm Uses Roofings and Canopies Color Natural Gray Surface Texture One Surface Smooth Standard Width 1062 mm Net Covering Width 885 mm Coefficient of Thermal Conductivity 0.28 K Cal./m.h.�C Minimum Flexural Strength 160 kg./cm2 Maximum Purling Distance 700 mm Minimum Roof Slope 15� Overlaps: Side Lap End Lap 177 mm 200 mm Standard Weights: 4.5 mm 6.0 mm 8.25 kg./pc. 11.00 kg./pc. Density (Approx.) 1.50 kg./dm3 Standard Lengths 915 mm, 810 mm � 3. Properties Super Ondula roofing tiles meet the high quality standard in line with the company's requirements. Among its first rate characteristics are: Super Ondula roofing tiles have successfully withstood severe weather conditions. They are rustproof, do not twist nor splint, do not corrode due to the action of salt air, acid fumes and gases. They are even immune to attacks by vermin and rodents. Super Ondula roofing tiles are not affected by the extremes of temperature. They can stand very high and very low temperature without loss in strength and usefulness. Due to the low thermal conductivity of the sheets, the roofs are comfortable both in very hot and very cold climates. They are therefore very successful especially in tropical regions. Super Ondula roofing tiles are impermeable and hence provide waterproof surfaces. They are incombustible. In cas of fire or at higher temperatures, the sheets do not burn and provide an obstacle to the spread of the fire. Super Ondula roofing tiles are very economical. No painting is required. They are easily and expeditiously erected and require no maintenance. No deterioration occurs. On the contrary, they are found to strengthen with age. 4. Moulded Accessories
