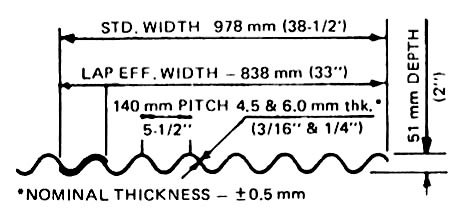

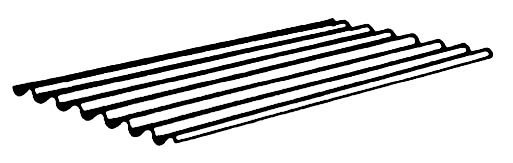

Exterior roofings claddings others � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � back ��� SUPER ONDULA Roofing Tiles���������� PLACA ROMANA Roofing Tiles ������� PROFILE 6 Corrugated Tiles���������� COVERIT & ARDEX Corrugated Tiles PROFILE 6 Corrugated Sheets Profile 6 corrugated sheets are non-combustible and ideal materials for roofing. This kind of construction material is typhoon-resistant under a condition of up to 140mph (225kph), shock-resistant, rot and rust-proof, fireproof and has a high thermal insulating value that ensures comfort in the hottest weather. 1. The Product 2. Specifications Thickness 6.0 mm (1/4") 4.5 mm (3/16") Color Natural Cement Gray Natural Cement Gray Surface Texture External Surface Smooth External Surface Smooth Number of Corrugations Seven (7) Seven (7) Standard Length 1829 mm (6') - 3048 mm (10') 1829 mm (6') - 3048 mm (10') Standard Width 978 mm (38-�") 978 mm (38-�") Effective Covering Width 838 mm (33") 838 mm (33") Effective Covering Area/sheet (for 8' long) 1.79 sq.m. (19.27 sq.ft.) 1.79 sq.m. (19.27 sq.ft.) Standard Weight/feet length 3.28 kg./ft. (7.23 lbs./ft.) 2.46 kg./ft. (5.42 lbs./ft.) Weight/Unit Area 11.00 kg./m2 (2.25 lbs./ft2) 8.25 kg./m2 (1.69 lbs./ft2) Density 1.50 kg./dm3 (93.64 lbs./ft3) 1.50 kg./dm3 (93.64 lbs./ft3) Minimum Flexural Strength 160 kg./cm2 (2276 lbs./in2) 160 kg./cm2 (2276 lbs./in2) Maximum Purling Distance 1067 mm (42") 1067 mm (42") Minimum Roof Slope 12� 12� Overlaps: Side Lap End Lap 1 corrugation 305 mm (12") 1 corrugation 305 mm (12") 3. Properties Profile 6 Standard Corrugated Sheets meet the high quality standard in line with the company's requirements. Among its first rate characteristics are: Profile 6 Standard Corrugated Sheets have successfully withstood severe weather conditions. They are rustproof, do not twist nor splint, do not corrode due to the action of salt air, acid fumes and gases. They are even immune to attacks by vermin and rodents. Profile 6 Standard Corrugated Sheets are not affected by the extremes of temperature. They can stand very high and very low temperature without loss in strength and usefulness. Due to the low thermal conductivity of the sheets, the roofs are comfortable both in very hot and very cold climates. They are therefore very successful especially in tropical regions. Profile 6 Standard Corrugated Sheets are impermeable and hence provide waterproof surfaces. They are incombustible. In cas of fire or at higher temperatures, the sheets do not burn and provide an obstacle to the spread of the fire. Profile 6 Standard Corrugated Sheets are very economical. No painting is required. They are easily and expeditiously erected and require no maintenance. No deterioration occurs. On the contrary, they are found to strengthen with age. 4. Moulded Accessories
