| Super Twin21 Baja |
| The car was officially finished on 30 AUG 2005, that is almost 2 years after I started forming the ideas and learning how to use the CAD I did all the drawings on. Somewhere between 5000 and 10,000 hours have been invested in this project. |
| PROJECT CAR COMPLETE! |

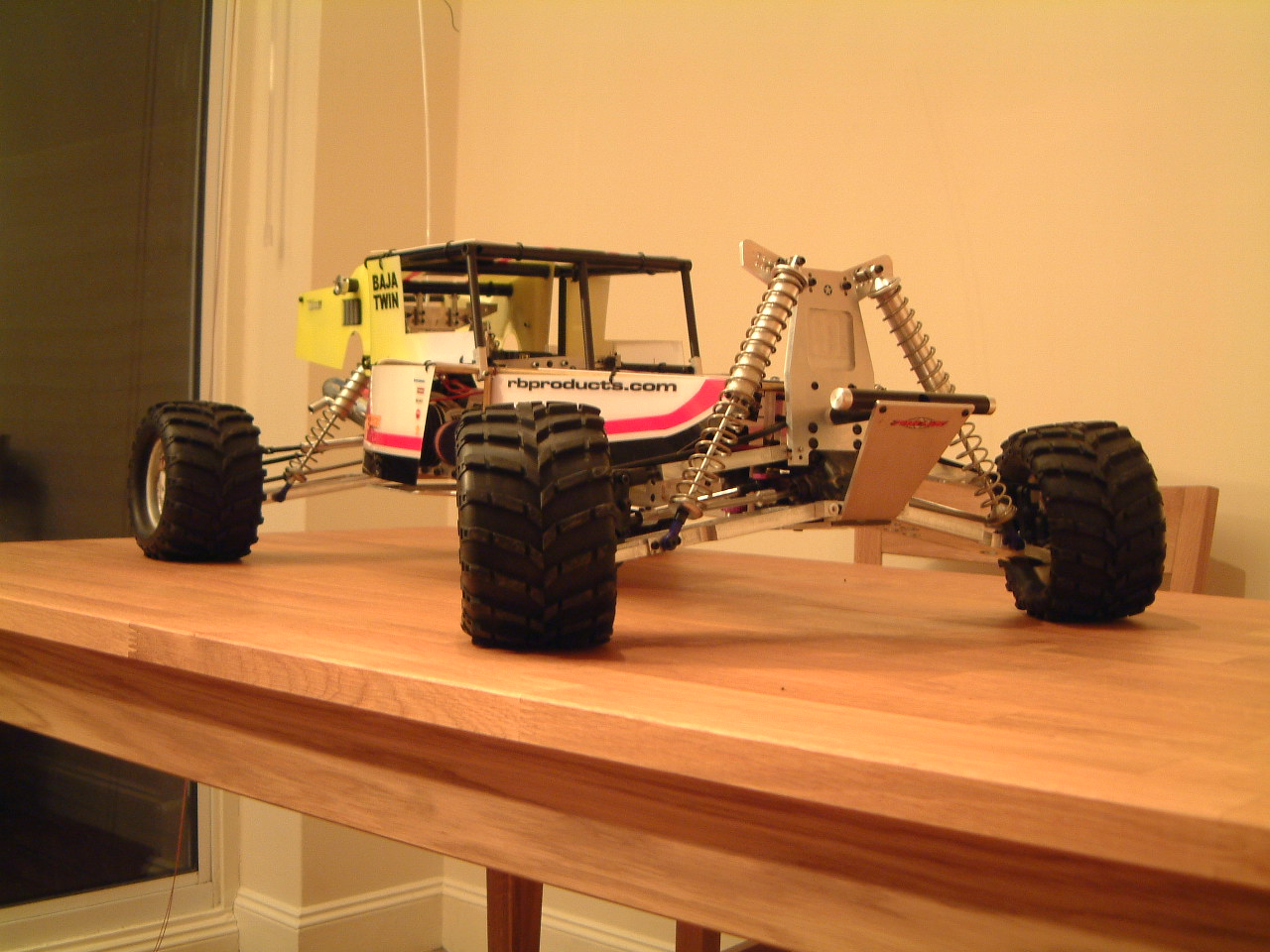

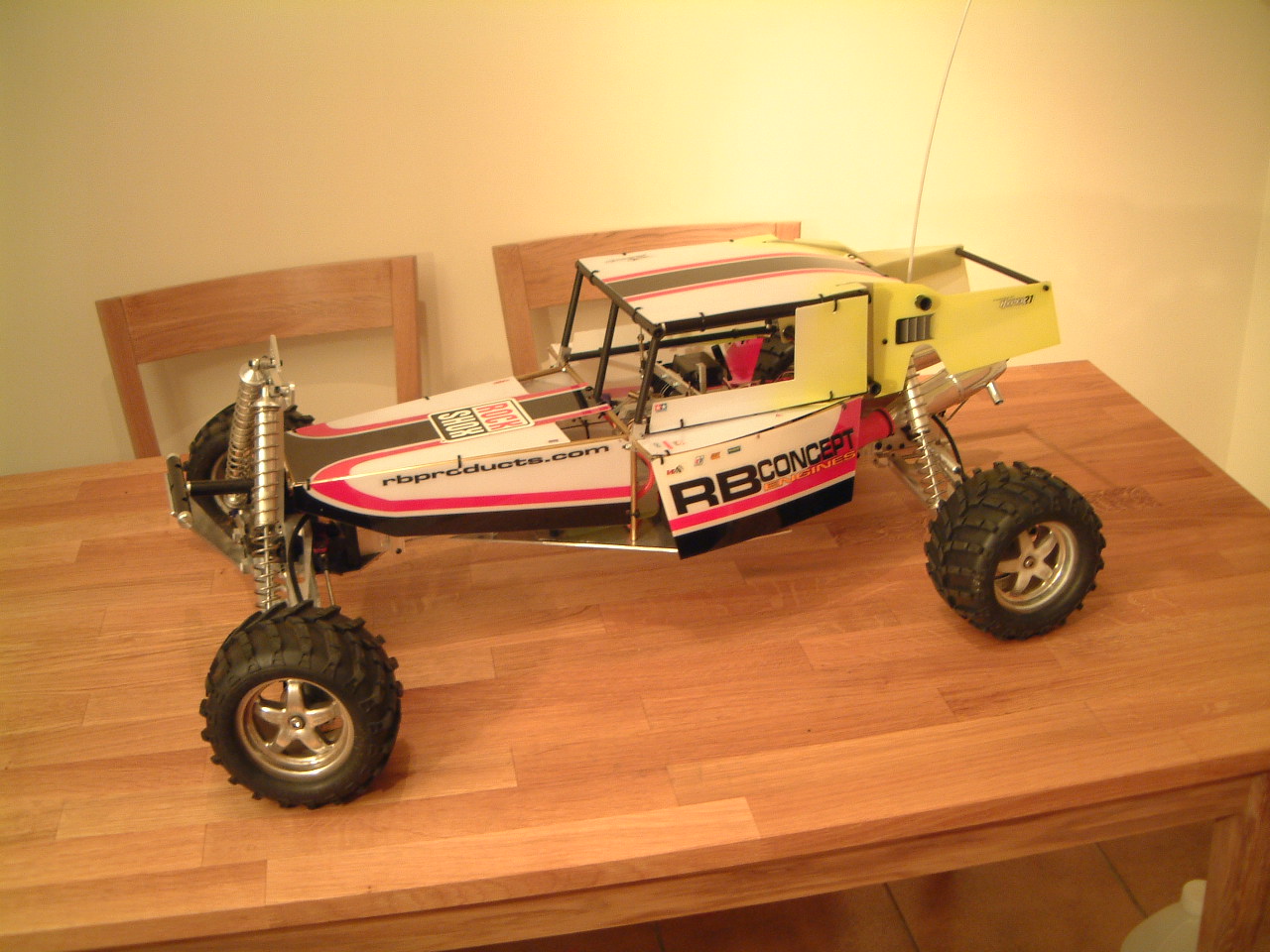

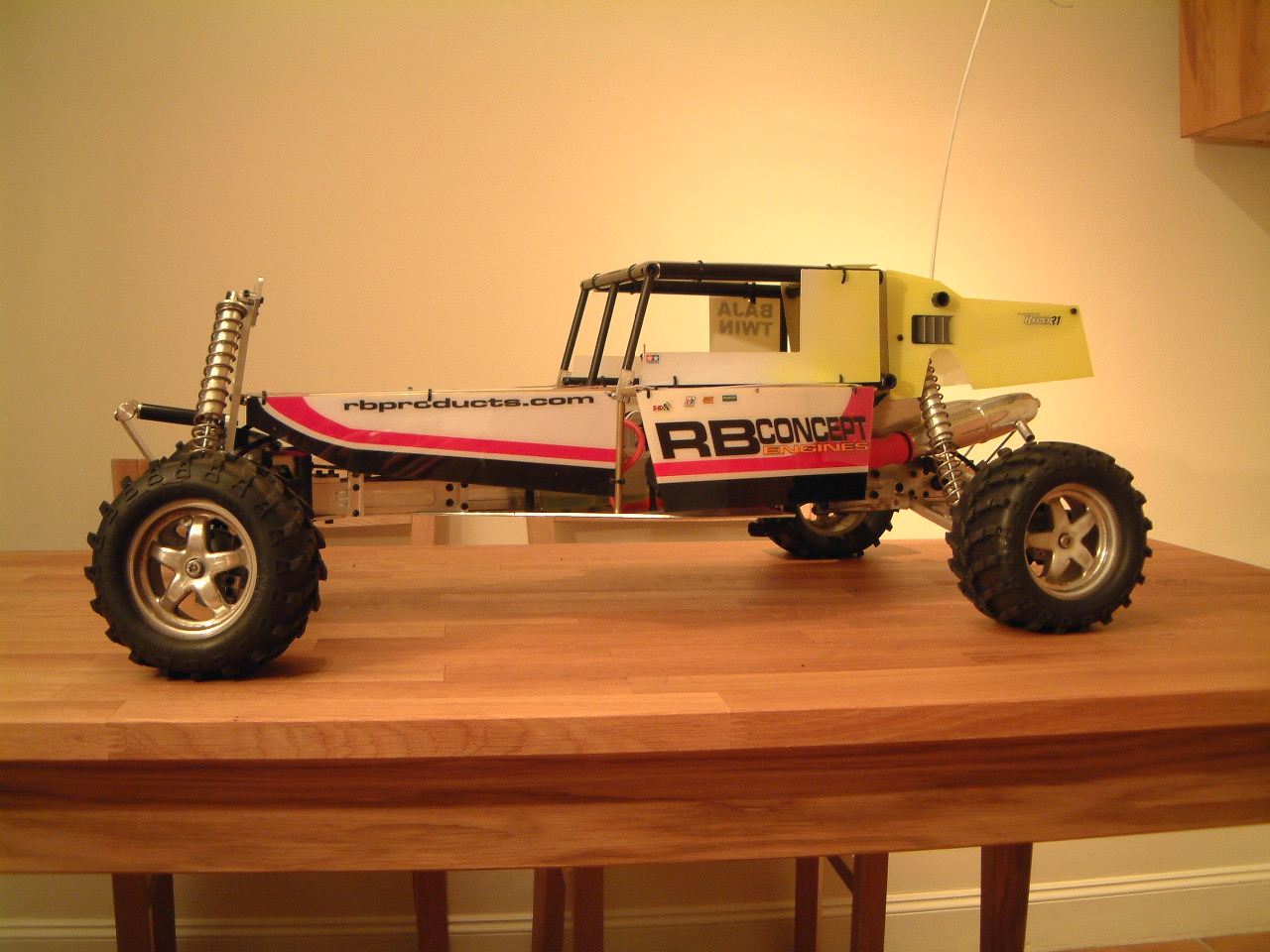

| As you can see I have done a 'retro' style Rock Shox paint job on the car. I have not yet run it properly, I will update more when I have. Here are some pics. |
| 1:6 scale Baja superbuggy Twin engine Baja superbuggy (class-1 unlimited desert racer) Scale: about 1:6 Power: Twin Hyper-21 turbo, horizontally-opposed layout Exhaust: Twin linear manifolds with RB Concept 086 pipes Brakes: Quad independent outboard aluminium drilled discs, cable operated with L/R and F/R independent bias adj Suspension: Independent double wishbone all round, 4"+ travel, industrial wound springs with oil damping with tuneable compression/rebound Driveline: Hobao helical cut ring and pinion gears, custom built aluminium gearbox (rear) stock plastic Hyper-7 box (front) Switchable 2/ permanent 4 wheel drive Body: Brass/carbon fibre tubular roll cage frame. Body hinges forward from cab for access. Weight: 15 lb |
 |
 |
