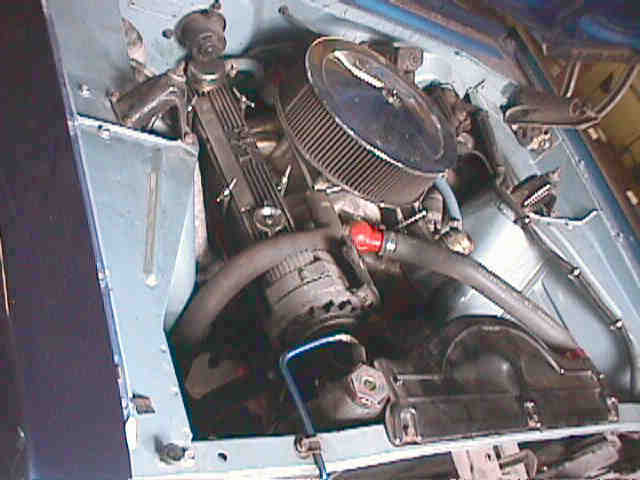

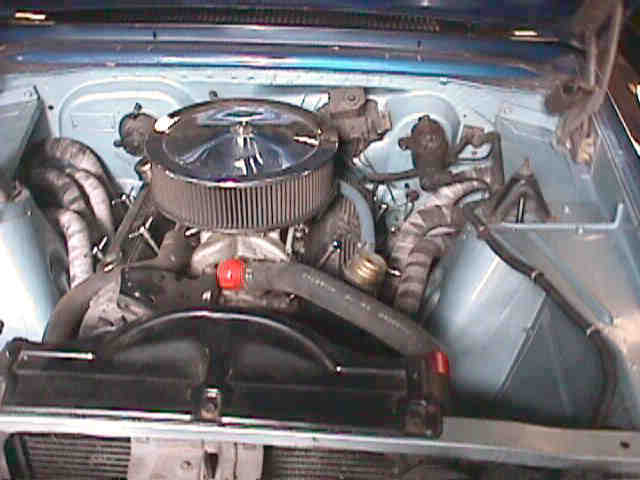

A last look at my trusty 350 |

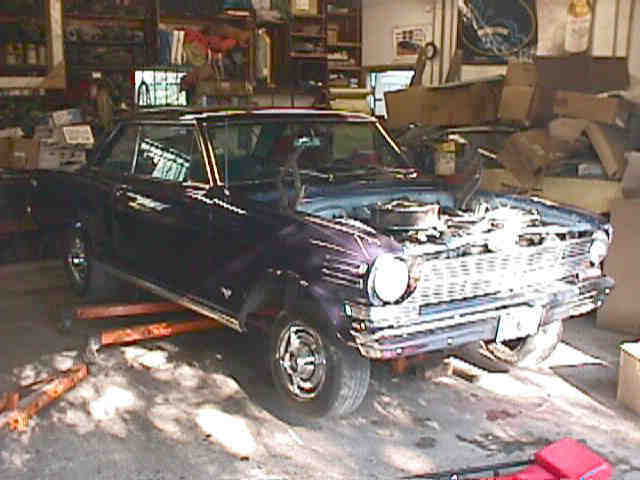

Ok, Another last look. 2nd thoughts now about doing this. |
 |
 |

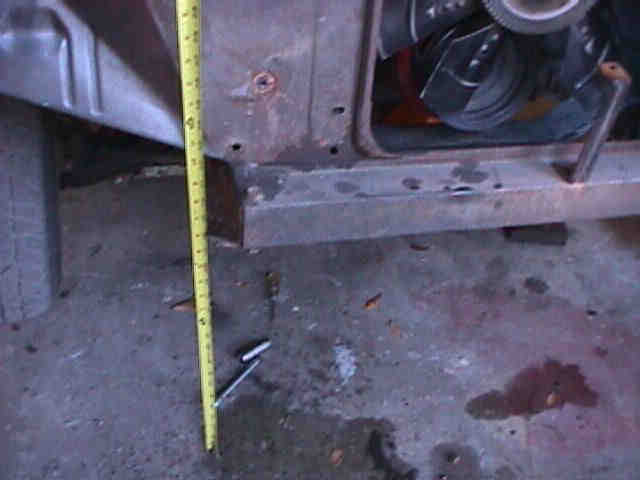

Before starting I put car on jack stands, leveled very corner and measured everything everyway i could imagine. Measured front frame rail height before engine removed, after engine removed and checked after every modification |  |

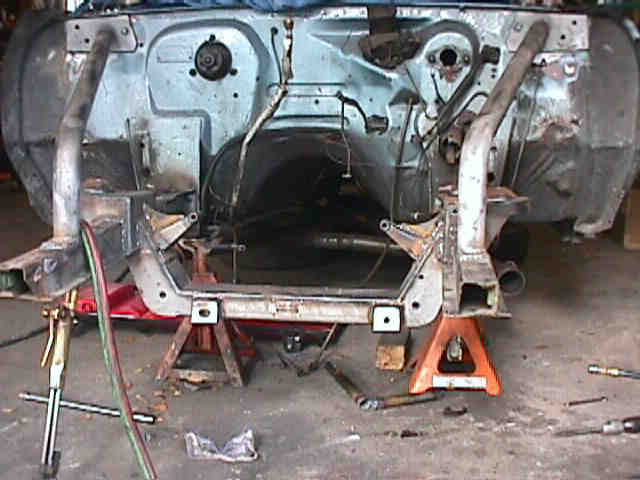

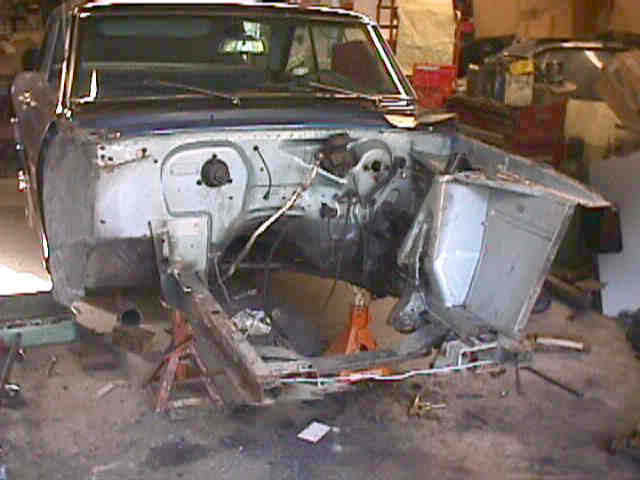

The front end gets cut off |

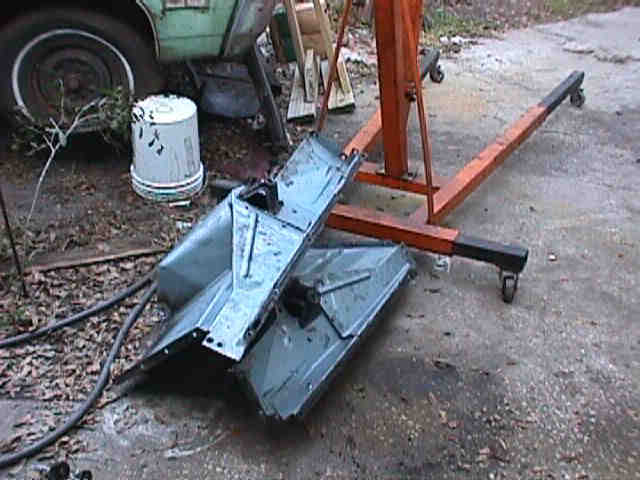

The left overs |
The frame rails get notched out and a "C" section gets welded in to allow for spring clearance |

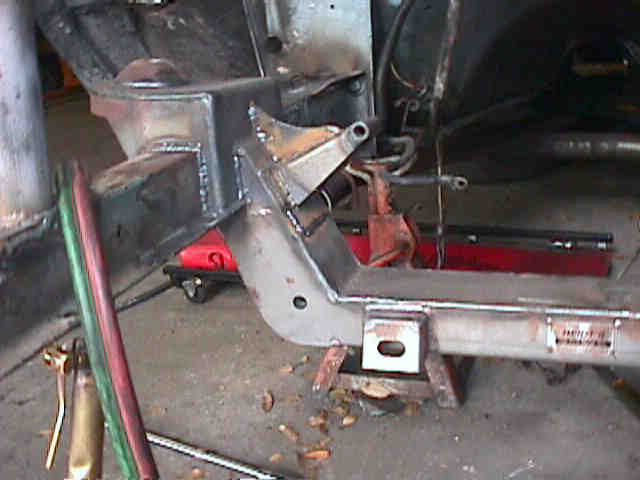

The front cross member gets welded in. All the while constantly measuring to make sure the frame rails don't bend up or down or in or out from the heat. |

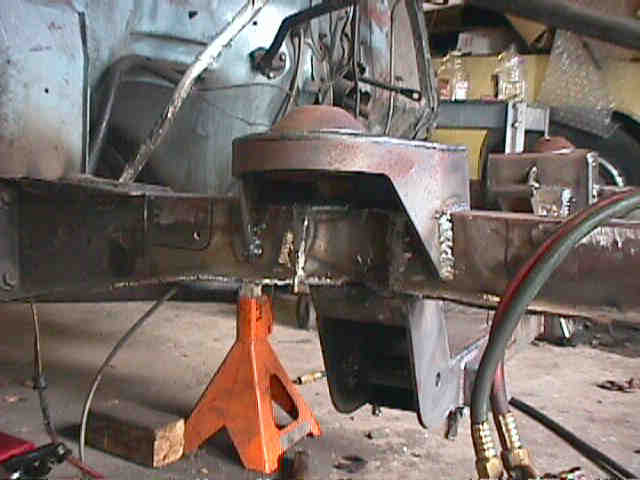

Added extra gussets on motor mount brackets to handle extra toque from the big block |

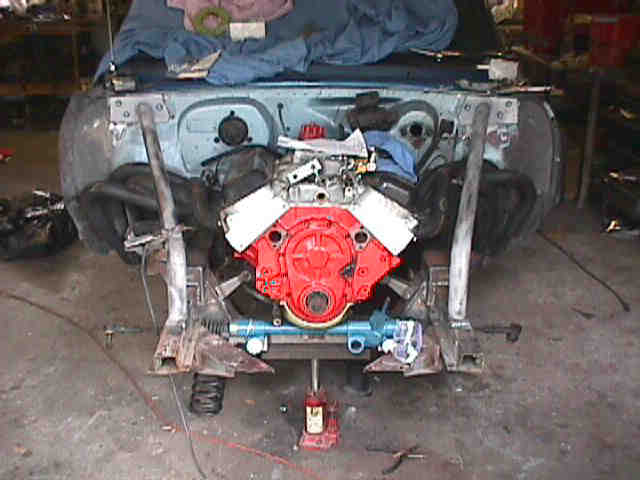

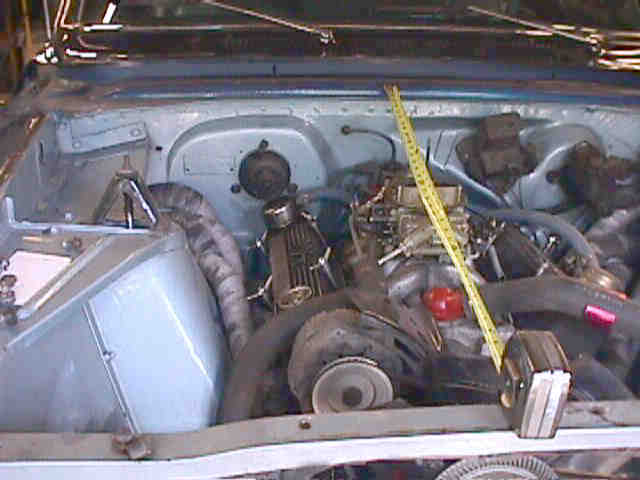

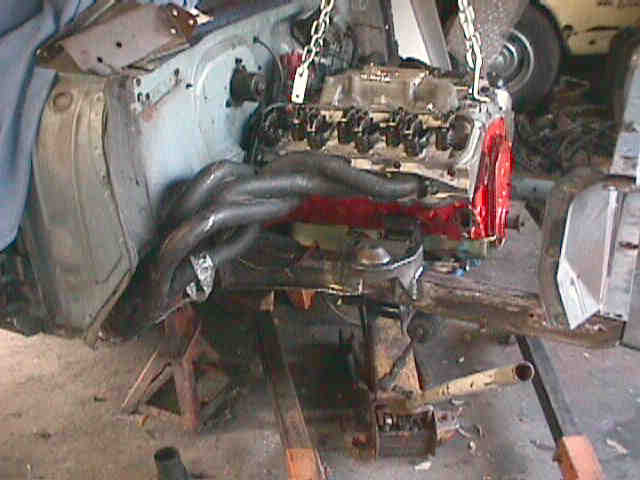

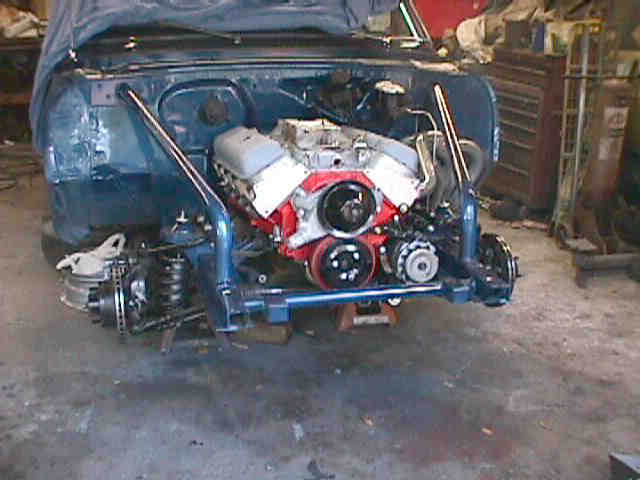

The engine gets dry fitted. I slip on the radiator support to make for sure front of frame rails didn't move in or out. |

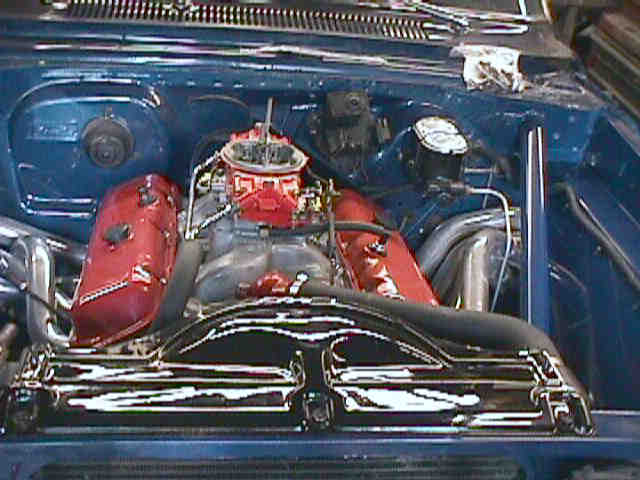

Headers |

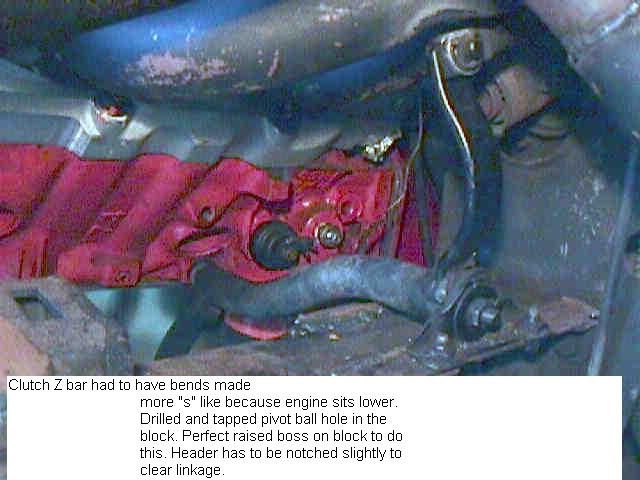

Cluth link info |
|

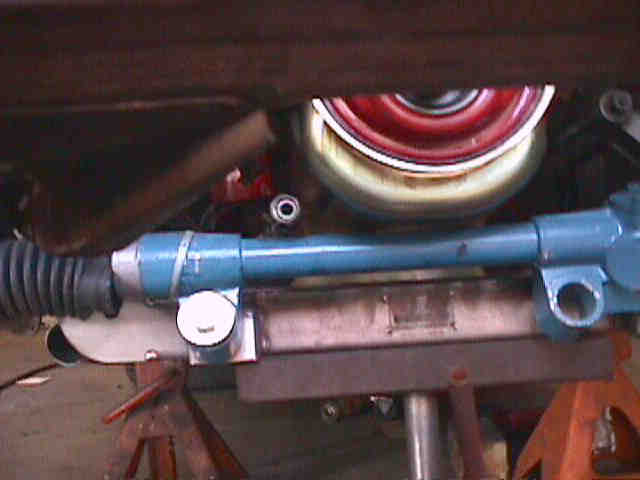

Checking oil pan to steering rack clearance before welding in motor mount brackets. Put front as low as possible for throttle linkage clearance. I think an HEI would fit w/o mods. |

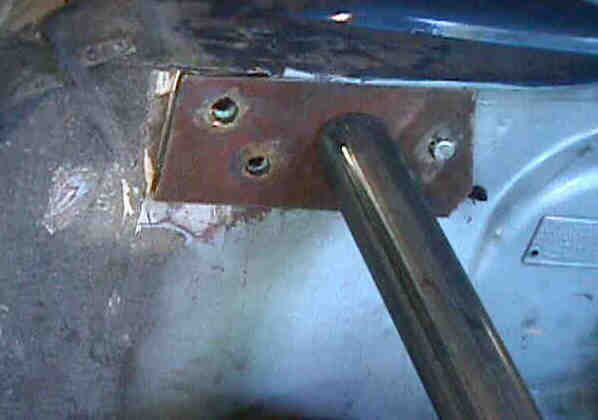

The fire wall plates. I had cut out from an 1/8" and 1/'16" plate and stack together |
Used 2" schedule 40 pipe. Took it down to the muffler shop and had 70 degree bends made on them. |

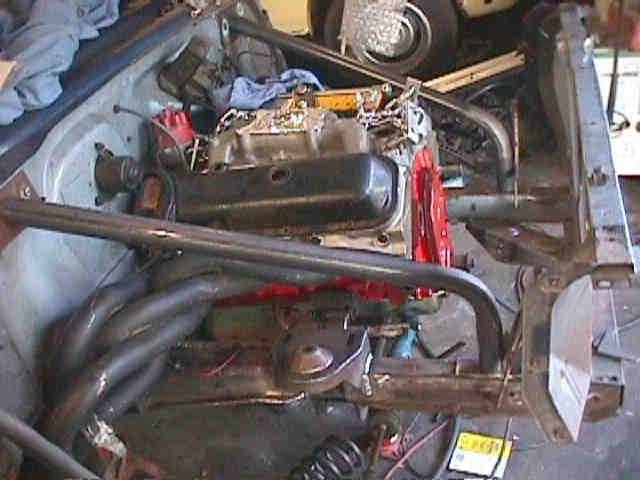

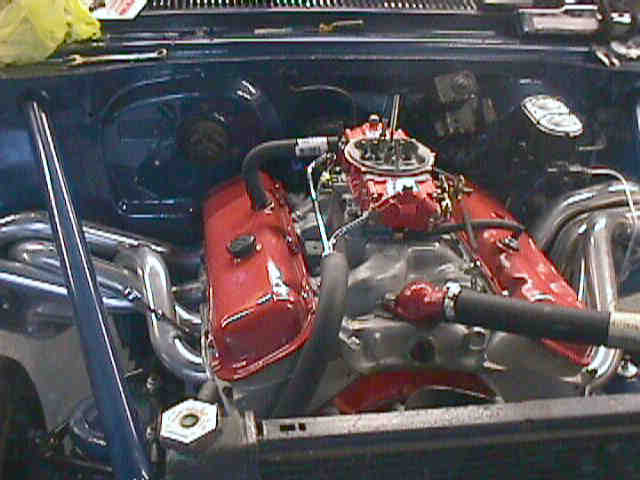

Making sure the support tubes have plenty of header clearance |

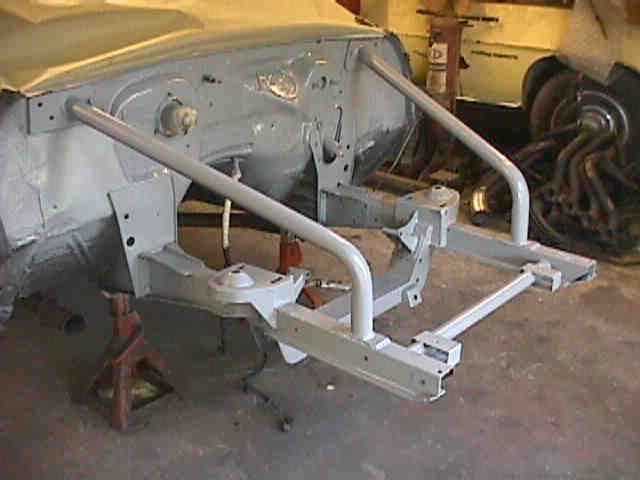

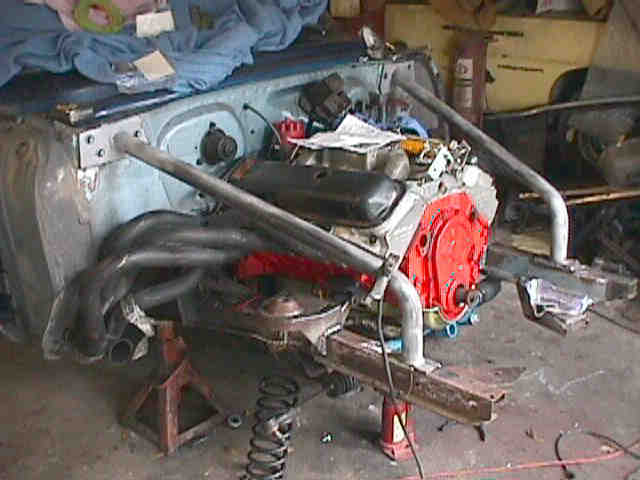

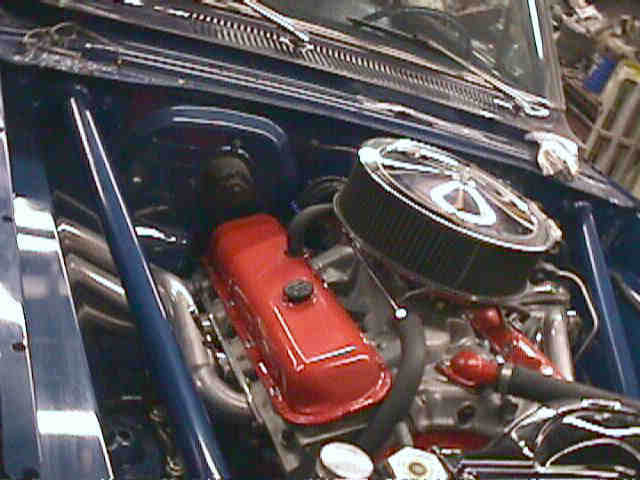

Fitting and adjusting the support tubes prior to welding |
Steering Info |

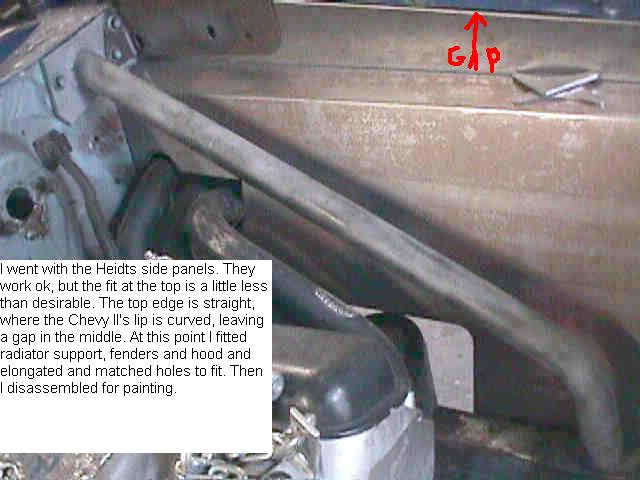

Side Panel Info |
 |
 |
Front Suspension & brakes |
 |
 |
 |
Radiator |
