SEABIRD´86 | ||
BUILDING STEP 14

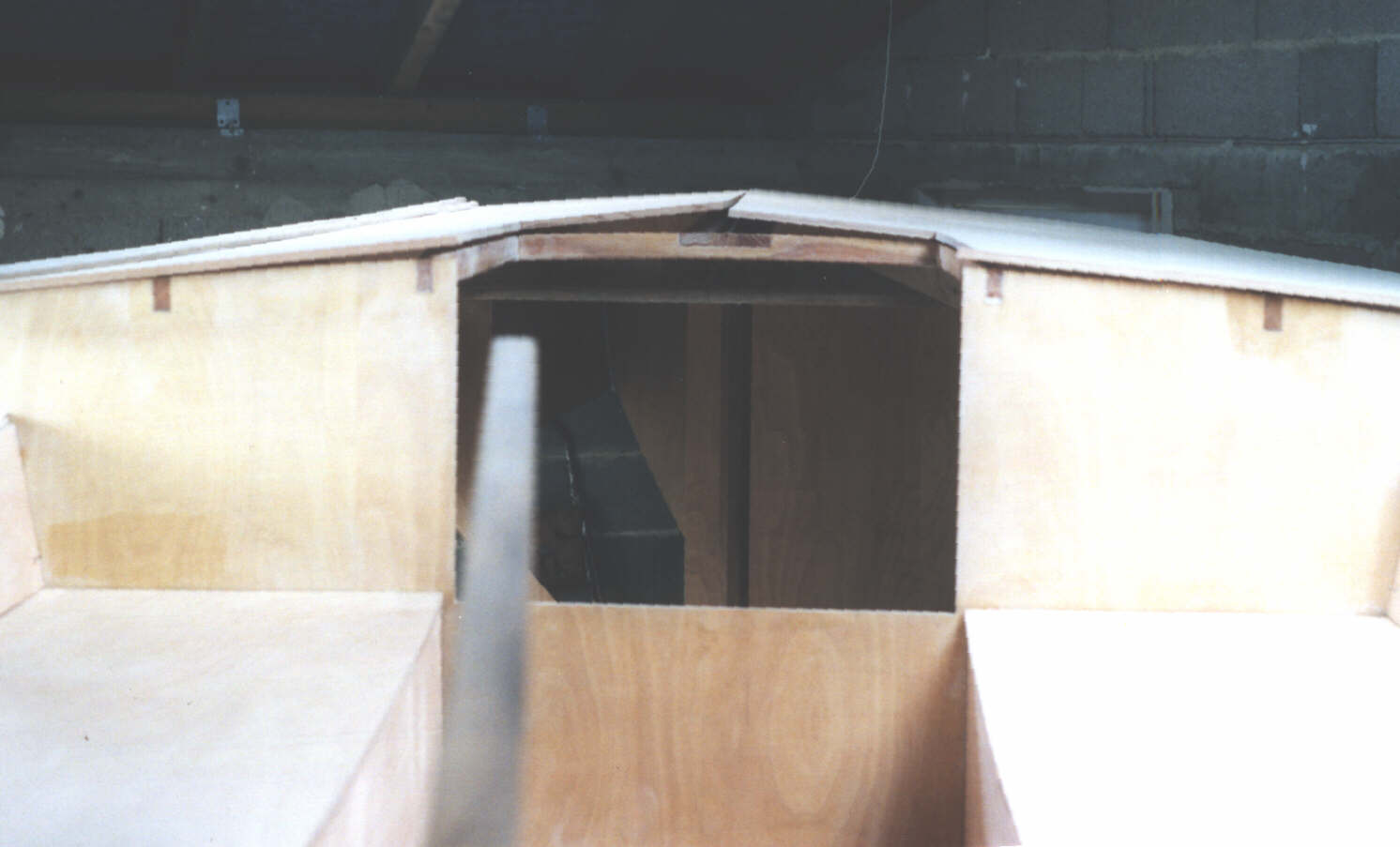

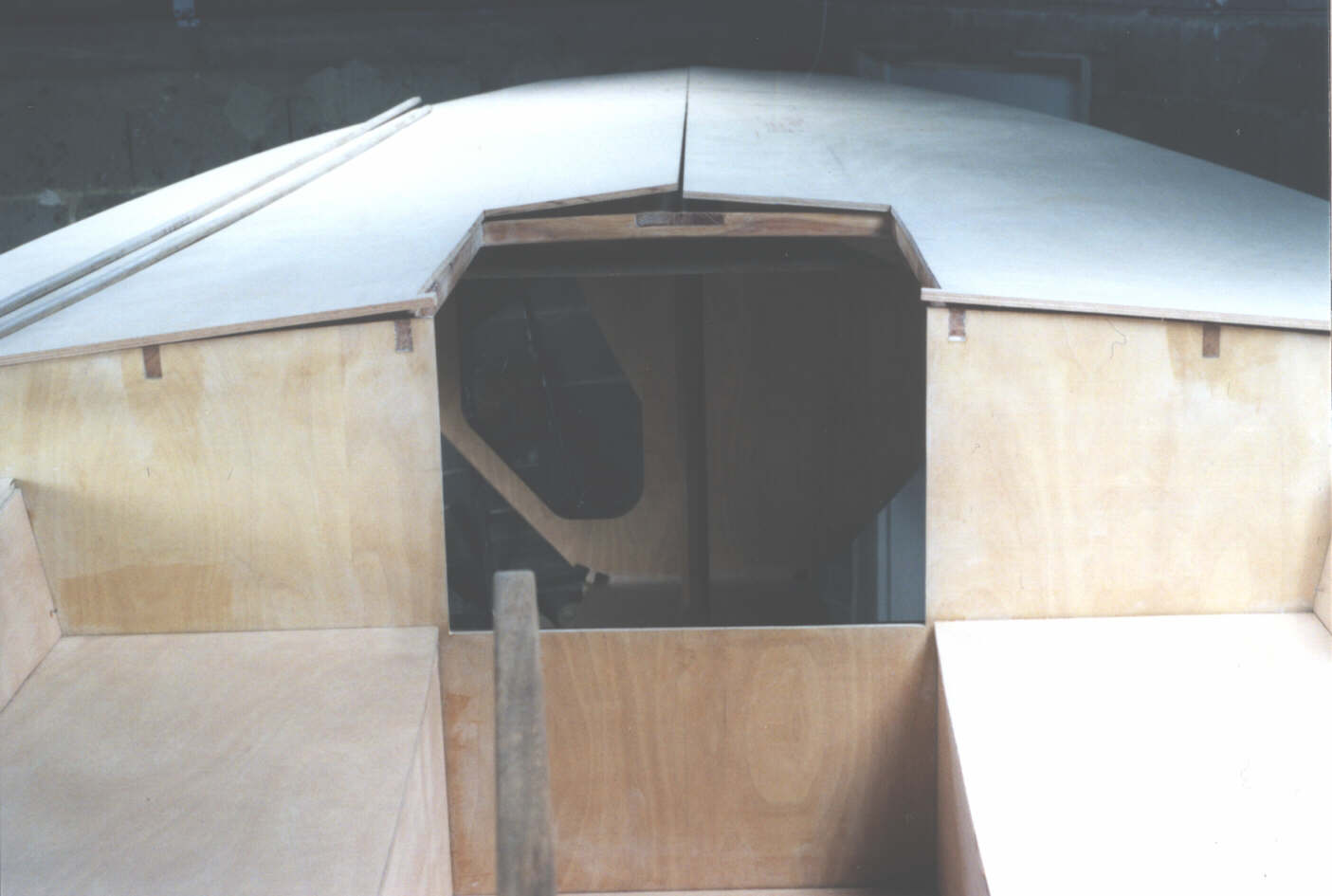

Cockpit |
||
To got a tight fit of the panels it needs some thoughts about the cuting sequence and about drawing the cuting lines on the Plywood sheets. All in all it needs one working day. | ||
Before I can finaly install the cockpit panels, there is a lot to do: hardware, motor mount, vents, painting inside... | ||

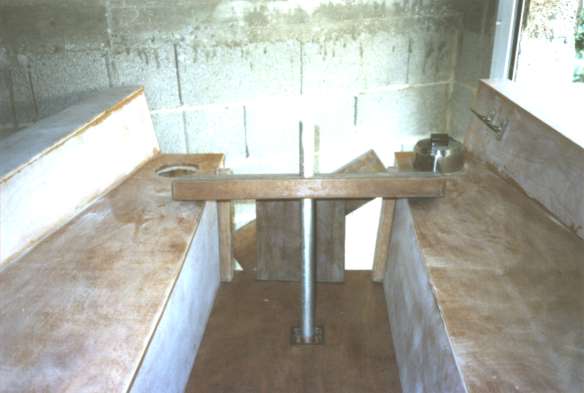

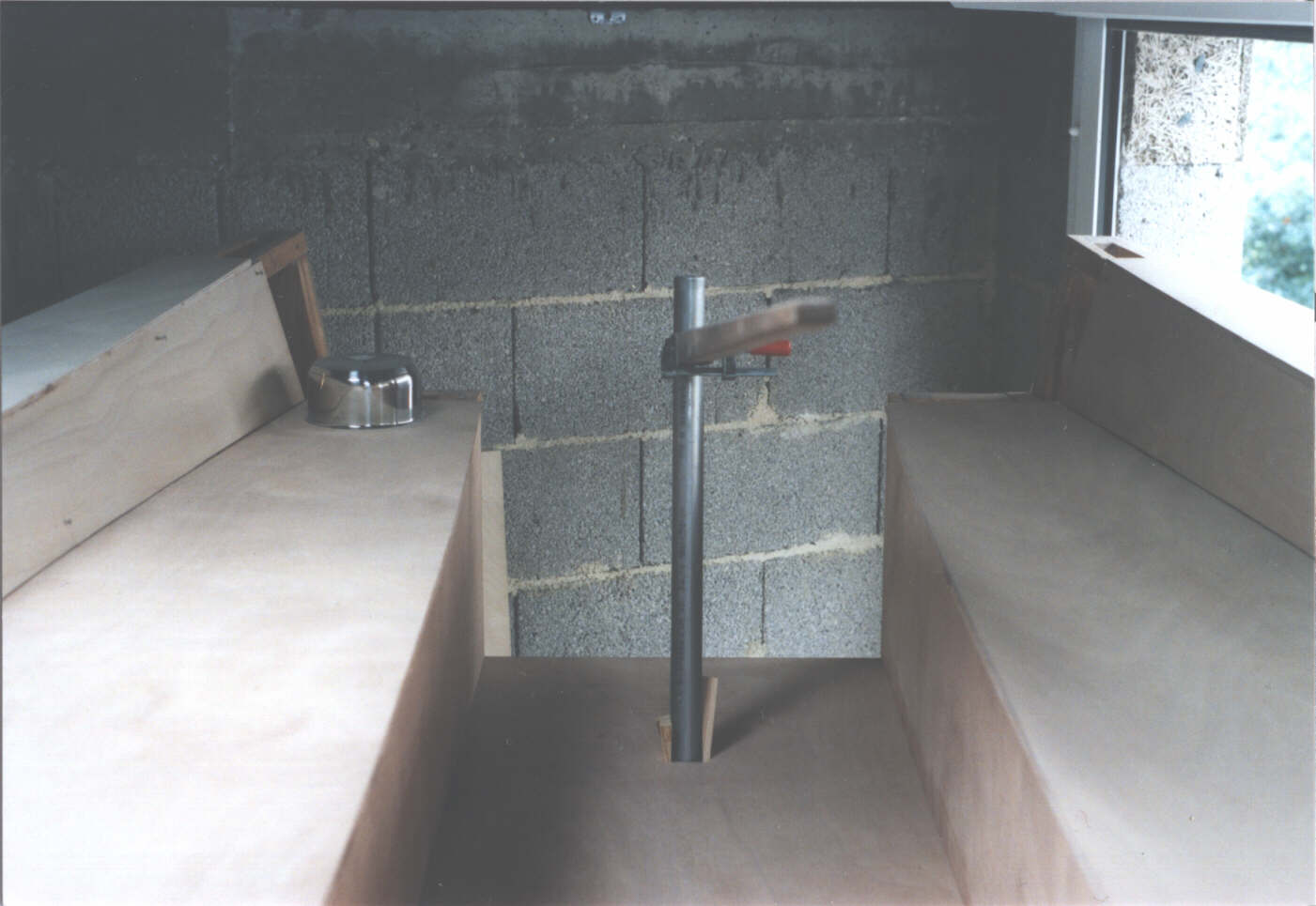

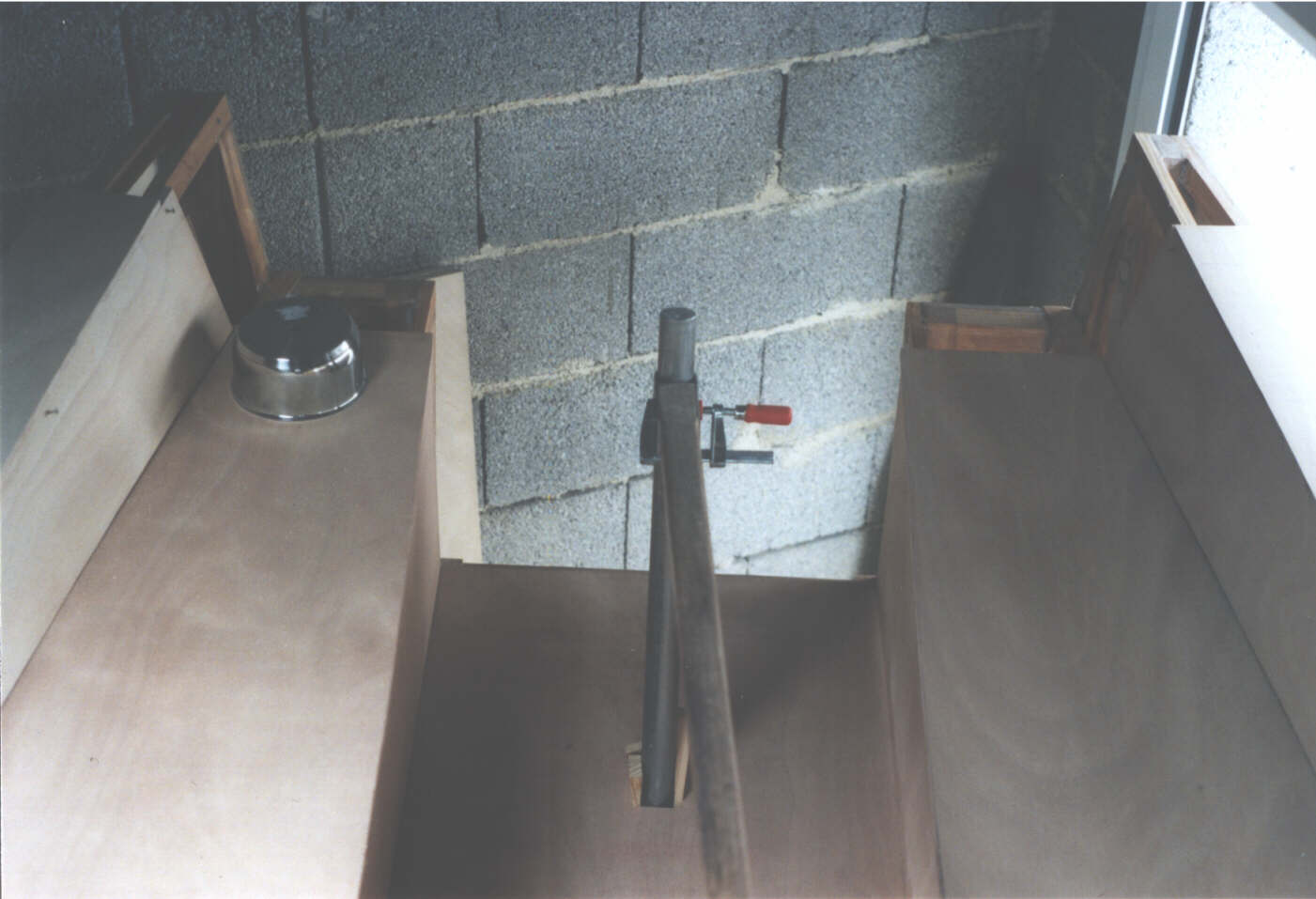

Cockpit is installed |
