Products & Pricing ACU2000d
There is no need to control every auxiliary function directly from
the Transmitter. Automate your model with the
ACU2000d Automatic Controller Unit Why should all your model's auxiliary functions be individually controlled from the Transmitter? Many auxiliary functions do not really need a dedicated transmitter channel just to operate: they can be slaved to another channel or be made to operate independently.

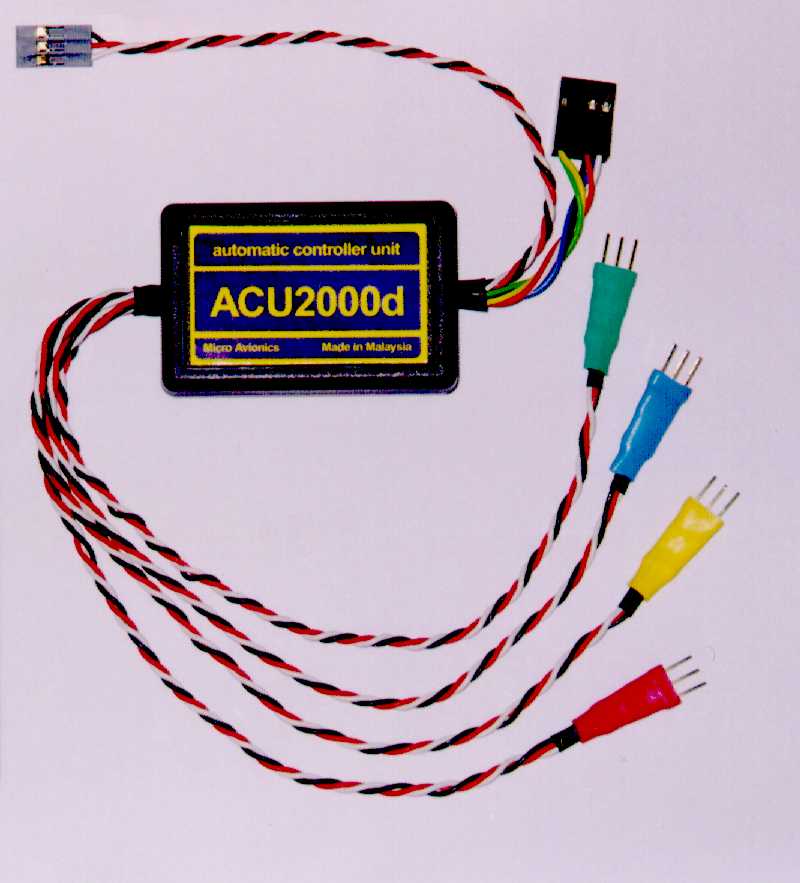

The ACU2000d Automatic Controller Unit Before we invented the Automatic Controller Unit, no such product was available for you to do so. Now, with the ACU2000d, you can by putting automation right in the model itself.
The ACU2000d uses only one channel on your transmitter to control 4 (four) independent functions in a pre-defined fashion that you set. Many modelers see this unit as a one-to-four channel multiplier. This, it is but the ACU2000d is actually more than that.
The microprocessor inside the ACU2000d controls its 4 independent Full Proportional (not On-Off) channels in an 8 (eight) Step program that you configure with the PG2000d Programmer. There are 5 (five) operational modes to choose from; each catering for a different type of control input (joystick, switch, knobs, buttons, or from another channel).
This gives you tremendous amounts of flexibility and an unlimited number of application possibilities with just one ACU2000d unit.
Whether you build airplanes, helicopters, ships or robots: the ACU2000d
is the answer to your auxiliary function population problem, and here
are 3 reasons why...1. Whether you spend $$ on an FM radio or $$$$$ on a PCM computer radio,
you still use one channel for one auxiliary function.2. The more auxiliary functions you add, the more switches and knobs you
would have to operate. Modelers are humans, not octopuses.3. "Now remember: left third finger first then right index finger, then
right third finger, then......": You should be enjoying operating your model,
not remembering its operational sequences.
To find out more about the ACU2000d and what it can do, view its E-Brochure, or
ask Alan any technical or application questions that you may have.The ACU2000d is Available Now!
ACU2000d .. List Price: USD 59.95 per unit
Postage and Handling to anywhere in the world: please add ...................USD 8.00 per unit.
For orders containing multiple units, please contact us for discounts and best shipping rates.
Using the ACU2000d for the First Time?
If you are buying the ACU2000d for the first time, you should buy the ACU Starter Pack, which contains 1 unit of ACU2000d and 1 unit of PG2000d Programmer.Then for subsequent projects, you can purchase the ACU2000d alone without the programmer.
ACU Starter Pack ....List Price: USD 129.90 per pack
Postage and Handling to anywhere in the world: please add ..................USD 10.00 per pack
For orders containing multiple units, please contact us for discounts and best shipping rates.
Prices and Product Specifications are subjected to change without prior notice. Although we do our best to ensure accuracy while publishing our web-pages, Micro Avionics assumes no responsibilities for any typographical or display errors. [ Top of Page ] [ PG2000d ]
TURN the Knob - TWEAK the Pots - CLICK the Button
Three EASY Steps to program the ACU2000d with the
PG2000d Programmer We promised you that our products will be very simple to use, didn't we? Well, we have kept that promise. With the PG2000d, we have combined the advantages of digital and microprocessor electronics, and the convenience of a simple user-interface.

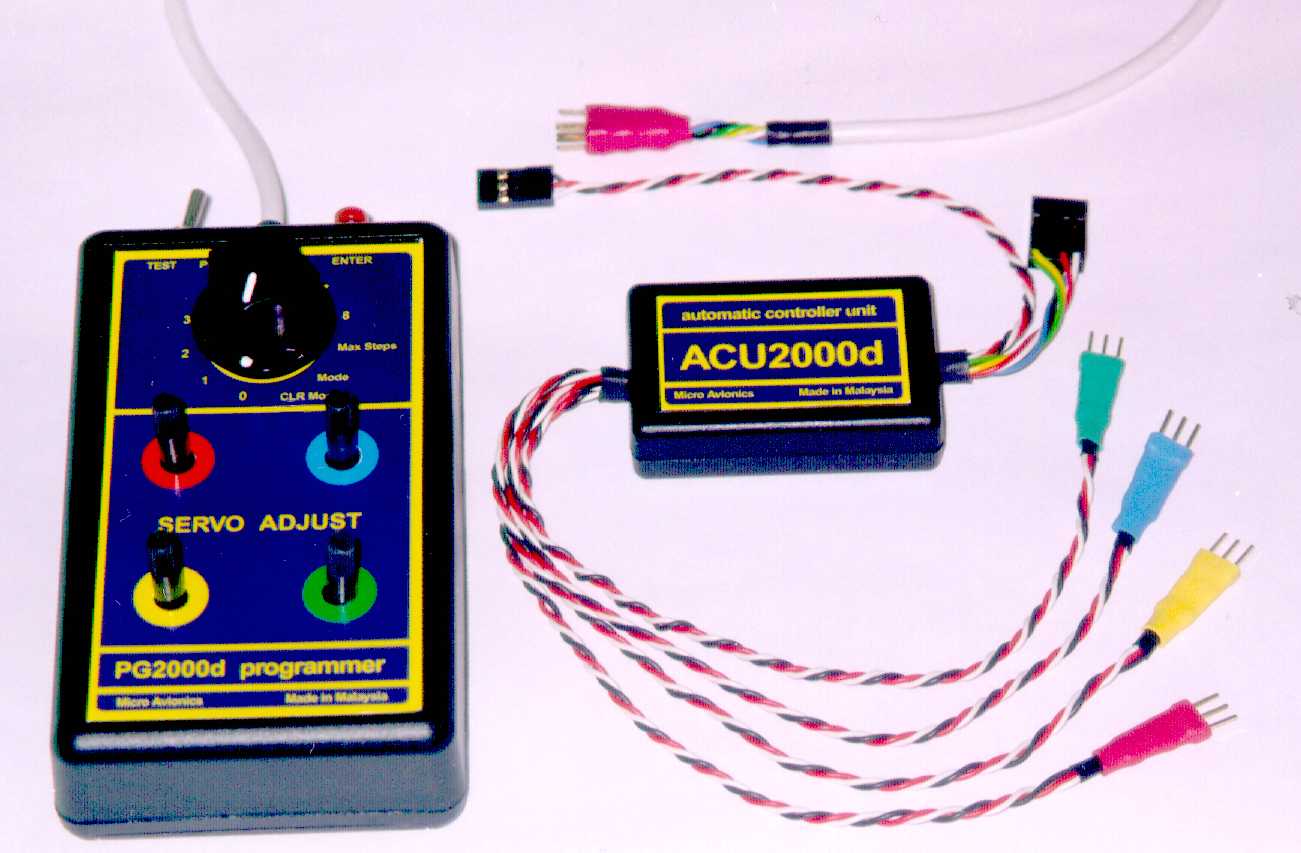

The ACU Starter Pack comprising PG2000d Programmer and ACU2000d Controller Most of us think of programming as performing a series of complex actions that is required to configure a program. This is true for most user-programmable products that we find around us everyday: like mobile phones, VCR, and computer radios.
These products require us to press a series of buttons to scroll from menu to menu before we reach the particular parameter we want to configure. Imagine the kind of hassle you would have to endure just to program these devices for maximum capabilities. Whatever happened to Keep It Short and Simple (KISS)?
With the PG2000d, it takes just 3 easy steps to program any of the 12 parameters of the ACU2000d automatic controller unit. It is so easy it's ridiculous.
3 Ridiculously Easy Steps to program the ACU2000d... Step 1. Turn the selector knob to the parameter you want to change.
Step 2. Tweak the potentiometers to set the servos (or set the switches).
Step 3. Click the ENTER button.We admit it doesn't sound High Tech. But do you really want to play
Nittendo when you are setting up your model?
To find out more about the PG2000d, view its E-Brochure, or ask Alan any technical questions that you may have.The PG2000d is available only in ACU Starter Packs. Available Now!
The PG2000d is available only in ACU Starter Packs. Each pack contains all that you would need to start with: 1 unit of PG2000d Programmer and 1 unit of ACU2000d controller.ACU Starter Pack ....List Price: USD 129.90 per pack
Postage and Handling to anywhere in the world: please add ..................USD 10.00 per pack
For orders containing multiple units, please contact us for discounts and best shipping rates.
Prices and Product Specifications are subjected to change without prior notice. Although we do our best to ensure accuracy while publishing our web-pages, Micro Avionics assumes no responsibilities for any typographical or display errors. [ ACU2000d ] [ Top of Page ] [ AFC2000 ]
Prevent Flat Battery releated DISASTERS...
Put a Low Battery Early Warning System in your model with the
BEW2000a Low Battery Throttle Inhibitor / Early Warning System
The BEW2000a is your model's greatest assurance against flat-battery related disasters. It protects your model by providing an Early Warning Event when the model's receiver battery output drops below a safe voltage level.
The BEW2000a complete with Test Lead and Heat Shrink Tube Wrap The BEW2000a can be used in virtually any type of radio controlled model, and is highly recommended for powered aircraft, helicopters, gliders, and speedboats.
When your model is in operation, the BEW2000a will constantly monitor the model's receiver battery pack voltage. When this voltage drops below a safety threshold value, it will automatically drive the servo to a preset position (MODE 1) or limit the travel of the throttle servo (MODE 2).
While the BEW2000as primary purpose is to inhibit the throttle of a models engine, there are modelling applications whereby throttle inhibition is unacceptable or unavailable. Such applications include scale aircraft, gliders, slope and thermal soarers, sailboats, and other non-powered models.
In scale aircraft, sometimes it is undesirable to inhibit the engines throttle due to performance reasons. In such cases, you may opt to operate a scale feature on your model as an Early Warning Event to help inform you that a low battery condition has been detected.
In other non-powered models, you could opt to operate a feature that you could identify as an Early Warning Event. These Early Warning Events could be the lowering of the landing gear, sliding open of a canopy, raising of a retractable mast, or the release of a streamer.
When these features are suddenly activated without any commands from the transmitter, it should warn you that the models battery pack is running low.
Setting up the BEW2000a is extremely easy. All you need is a small screwdriver to set the 4-way DIL array switch and preset potentiometer. Furthermore, a test lead is also provided for you to create a low battery condition without the need to purchase a variable voltage power supply to set up the BEW2000a.
Don't let a flat Rx Battery destroy your model and everthing in it!
For a small investment, get an insurance for your BIGGER investments...
Put your mind at peace when you are flying (or whizzing around) with the
BEW2000a.
To find out more about the BEW2000a, view its E-Brochure, or ask Alan any technical questions that you may have.
The BEW2000a is Available Now!
BEW2000a .. ...List Price: USD 46.95 per unit
Postage and Handling to anywhere in the world: please add ...................USD 8.00 per unit.Get up to as much as 20% off the List Price for orders of 5 or more pieces. Kindly contact us for further information.
Prices and Product Specifications are subjected to change without prior notice. Although we do our best to ensure accuracy while publishing our web-pages, Micro Avionics assumes no responsibilities for any typographical or display errors. [ Top of Page ]
Technical Questions Do you want to know more about any of our products? Ask Alan any technical questions you may have. Personal Attention Guaranteed!Micro Avionics 45 Jalan SS 2/3 47300 Petaling Jaya Selangor, Malaysia
