WALK BEHIND MOBILE CRANE
main | poly dollies | steel wheel dollies | heavy duty die carts | power dollies | rolling outriggers | walk behind mobile crane | rotor transporter | rental equipment
image1 - image2 - image3 - image4

Click image for larger view

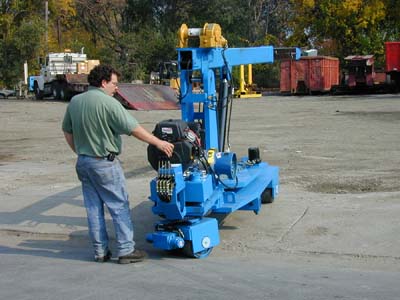

Third machine with major manufacturer whose requirements are to be able to go through a 42" door and pick 5,000 lbs at 9' from front bumper.
CT6-72
WIDTH: 40"
MAX WIDTH: 63"
HEIGHT: 7'1"
LENGTH: 9'1"
OVERALL LENGTH: 16'5"
MAX. REACH:
Front with Jib - 18'9"
Side with Jib - 18'5"
Height with Jib - 28'
CENTER OF ROTATION TO FRONT END: 27.25"
ENGINE: Air Cooled Propane
TRAVEL: Hydraulic power all Six (6) wheels
STEER: 90 degree
BOOM: 220 degree rotation, 5' hydraulic extension, 3' manual section and 4' jib. (All sections self contained)
TAIL SWING: 11"
WINCH: 8000 lb line pull
OUTRIGGERS MANUAL: 6" to 11" extension - same capacity over side as over end
WHEELS: Poly - 4 front 5" x 10" and 2 rear 5" x 10"
CAPACITIES WITH MAX COUNTERWEIGHT: All charts are Pick and Carry: 2, 500 lbs. at 18'9" from the front bimper; 1,650 lbs at 18'5", over the side, from the rolling outriggers.

LiftEquip, Inc
