PRELIMINARY SPECIFICATIONS ON PRODUCTION MODEL
Click Image for larger view
LENGTH: 38 1/2"
HANDLE: 62"
HEIGHT SWIVEL PLATE: 5"
CAPACITY: 20,000 lbs.
POWER: 110 volt Electric Motor over Hydraulic with Chain Drive
WHEELS
Rear - Two (2) 4" by 6" Poly Wheels with Hydraulic Drive and
are Steerable
Front - Three (3) 4" by 4 3/4" Poly Wheels
Loading - 70% Front, 30% Rear
Front - Three (3) 4" by 4 3/4" Poly Wheels
Loading - 70% Front, 30% Rear
HYDRAULIC JACK
4 1/2" with a 2 1/4" stroke and 20,000 lb.
Capacity and a 6" Swivel Plate on top that will rotate 360 degrees.
Jack located apporoximately 8 inches from the front.
APPLICATION
By loading a 40,000 lb piece of equipment on a Power Dolly and two (2)
5 ton dollies, two personnel can move 40,000 lbs. without other support
equipment.
DEMONSTRATION

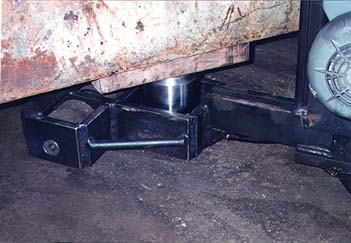

The above Power Dolly is our prototype that is being tested. During a
demonstration at our yard, we were able to shove/pull a 44,000 lb.
anvil, located on two poly wheel dollies and the power dolly, around
the plant without any difficulty.
