3/4 view - upper schematic - side schematic - On Crane
LINK-BELT HC-278H
CAPACITY: 230,000 lbs.
WEIGHT: 2,380 lbs.
HEIGHT: 18"
WIDTH: 40.25"
LENGTH: 54"
WHEELS: Twelve (12) 5"x18" rated 15 tons each
POLY: 1/2"
AXEL: 2 1/2"
BEARINGS: Two (2) at 33,800 lbs per wheel
WEIGHT: 2,380 lbs.
HEIGHT: 18"
WIDTH: 40.25"
LENGTH: 54"
WHEELS: Twelve (12) 5"x18" rated 15 tons each
POLY: 1/2"
AXEL: 2 1/2"
BEARINGS: Two (2) at 33,800 lbs per wheel
MANITOWOC 777T
CAPACITY: 315,000 lbs.
WEIGHT: 2510 lbs
HEIGHT: 18"
WIDTH: 40.25"
LENGTH: 54"
WHEELS: Twelve (12) 5"x18" rated 15 tons each
POLY: 1/2"
AXEL: 2 1/2"
BEARINGS: Two (2) at 33,800 lbs per wheel
WEIGHT: 2510 lbs
HEIGHT: 18"
WIDTH: 40.25"
LENGTH: 54"
WHEELS: Twelve (12) 5"x18" rated 15 tons each
POLY: 1/2"
AXEL: 2 1/2"
BEARINGS: Two (2) at 33,800 lbs per wheel

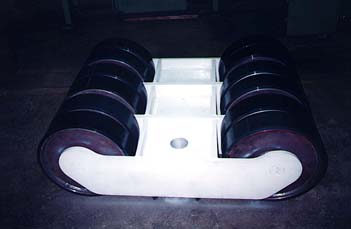

The owner of our first set of Rolling Outriggers, delivered in October,
1999, and mounted on a New Link-Belt HC-278 300 ton truck crane is
extremely happy with them. LiftEquip has received several
calls from potential customers requiring information on our Rolling
Outriggers.
