POLY DOLLIES
main | poly dollies | steel wheel dollies | heavy duty die carts | rolling outriggers | power dollies | walk behind mobile crane | rotor transporter | rental equipment
20/30 Ton Steerable Poly Dolly

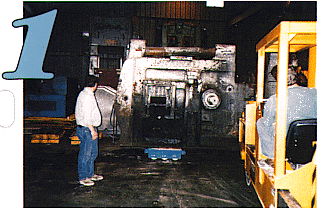

Turning as easy as: one - two - three

10 TON
WIDTH: 5.5"
WIDTH: 5.0"
LENGTH: 11.5"
WHEELS: 2 - 3 3/4 x
POLY: 3/8" 10,000 lbs/wheel
AXELS: 1 1/2"
BEARINGS: (2) 14,700 lbs. tapered
20/30 TON
WIDTH: 11"
HEIGHT: 5"
LENGTH: 18"
WHEELS:
(4) 3 3/4" x 4 1/2" - 20 ton
(6) 3 3/4" x 4 1/2" - 30 ton
POLY: 3/8" 10,000 lbs/wheel
AXELS: 1 1/2"
BEARINGS: (2) 14,700 lbs. tapered
50/75 TON
WIDTH: 17 1/8"
HEIGHT: 9 1/2" to 10 1/2"
LENGTH: 30 1/4"
WHEELS:
(6) 4" x 8" - 50 ton
(9) 4" x 8" - 75 ton
POLY: 3/8" 30,000 lbs/wheel
AXELS: 1 3/4"
BEARINGS: 2 - 30,000 lbs.

Wheel-To-Floor Contact Pressure
  • 20 Ton - 2,217 psi
  • 30 Ton - 2,216 psi
  • 75 Ton - 3,229 psi

LiftEquip, Inc
1
