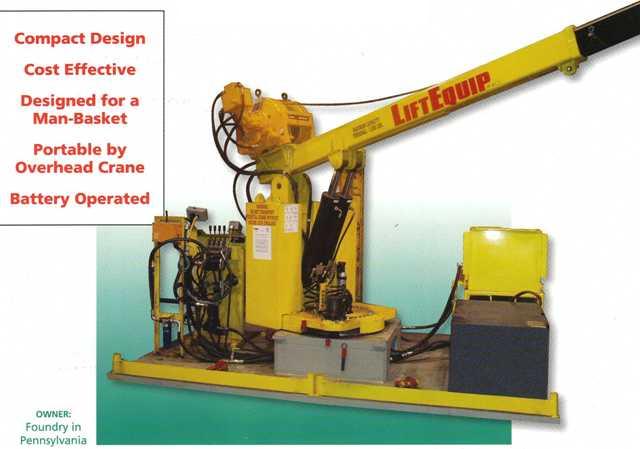

 Portable Suspended Personal Platform Model LEP 1000 |
|
main
|
industrial crane truck
|
steel wheel dollies
|
heavy duty die carts
|
rolling outriggers
|
suspended platform
|
walk behind mobile crane
|
|
|
 |
|
| 61 wide x 13' Long Base * 22'5" Reach * 27'5" Tip Height 2,200 lbs. Capacity All Configuration * 1,000 lb. Line Pull Battery Powered * Emergency Air Operated Hydraulic Pump Ingersoll Rand Force 5 Man Rider Winch Manual and Digital Radio Remote Controls MADE IN USA |
|
LIFT CAPACITY 2,200 lbs. at max.reach all directions. Winch: 1,000 lbs. BASE 6 ' wide by 13' long. Total height: 85" TOTAL WEIGHT 20,300 lbs. CRANE Max Reach: 22.92' Maximum boom tip height: 28' BOOM 220 degress rotaton. 5' hydraulic extension section. 3' manual section. 3' jib. All self contained. BOOM ANGLE -5 degree, +74 degree POWER 24V DC battery power hydraulic pump EMERGENCY POWER Sprague air/hydraulic pump model #S-216-JN-30 WINCH Ingersol Rand Force 5 winch model FH1BMR- SMK1G Man Rider, 1,000 lbs line pull. |
WIRE ROPE 1/2" x 198' 6x37 w/c with one end plain and the other end with 3 ton alloy swivel safety hook. HYDRAULIC OIL Reservoir 30 gal. Maximum pressure 2,150 psi HYDRAULIC OIL TYPE ECO Safe FR46. It is a fire resistant and biodegradable hydraulic fluid. HYDRAULIC OIL COOL Constists of a radiator and electric fan which automatically turns on when the hydraulic oil temperature hits a certain temperature. DEGITAL REMOTE CONTROLS MANUAL CONTROLS ANTI TWO-BLOCK HYDRAULIC CYLINDERS SWIVEL HOOK |
