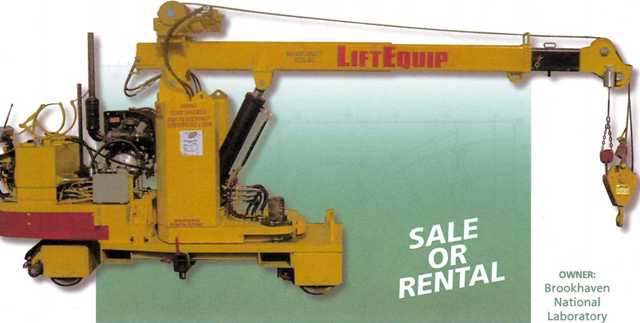

WIDTH...................................................40" (3' 4")
MAX. WIDTH WITH OUTRIGGERS
66" (5'6")(tw stage outriggers on both
sides)
HEIGHT...............................................85" (7' 1")
MAX. HEIGHT OF MACHINE.......28'
FRAME LENGTH..............................109" (9' 1")
LENGTH W/BOOM..........................197 1/4" (16' 51/2")
TAIL SWING.......................................11"
DISTANCER FROM COR TO FRONT
BUMPER........................2' 3 1/4"
MAX. REACH OVER FRONT.........20' 11"
TOTAL WEIGHT..............................16,346 lbs.
FRONT AXLE...........................7,891 lbs.
REAR AXLE........................8,455 lbs.
ELECTRICAL
12 volt - starter, travel alarm, horn and strobe
MAX. OPERATING PRESSURE.......2,100 psi
HYDRAULIC RESERVOIR......................15 gal.
HYDRAULIC SYSTEM
Gear pump. Rated at 10.56 gpm @ 2,100 psi
WHEELS
(6) 5"x10" poly coated wheels.
Rated @ 10,000 lbs. per wheel.
BEARINGS
(2) tapered roller bearings per wheel.
Rates @ 30,000 per bearing
|
AXLES
1 3/4" O material (100,000 lb. yield).
ROLLING OUTRIGGERS
(2) 10 ton poly dollies (11 1/2" L x 5 1/2" W x 4 7/8").
Positioned out & down & either 6" or 11"
extension. Each poly dolly has (2) W30P poly
wheels (3 1/4" O x 4 1/2).
TRAVEL
Hydraulic power to all 6 wheels.
STEER
90 degree steer (hydraulic) controlled by electric
joystick.
CONTROLS
TRAVEL & STEER -- Single lever (forward/
reverse) with pistol grip. Two buttons on
top of pistol are for steer left/right.
CRANE FUNCTIONS -- Individual,
double acting, levers for all four crane
functions. Each function can be operated
independently or together.
HOUSE LOCK
Prevents boom rotation while outriggers are
not extended and during transportation.
ADDITIONAL ITEMS
One, 3 ton lifting eye on main boom section.
Removable counterweights. Anti-tube block
system on both boom extend and winch up
circuits. Double acting cylinders with holding
valves
APPLICABLE STANDARDS
ASME/ANSI B56.7-1987
|
