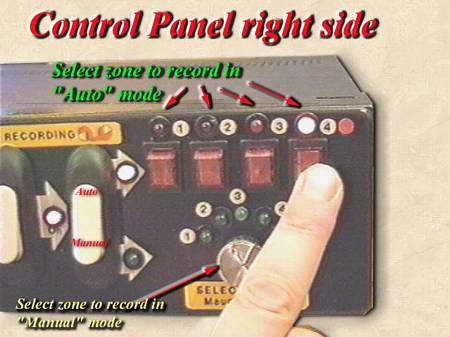

Power Unit, RIGHT Side
|
This is an detailed view of Power unit's right side, control panel.
There are :
- Four switches for selecting which zone will be active in
Auto recording mode. Could be selected all, or
any zone combination. If there are selected more than one zone, then hardware
hierarchy will select recording priority.
- One rotary switch with four position will select which
zone could be active in Manual recording mode.
