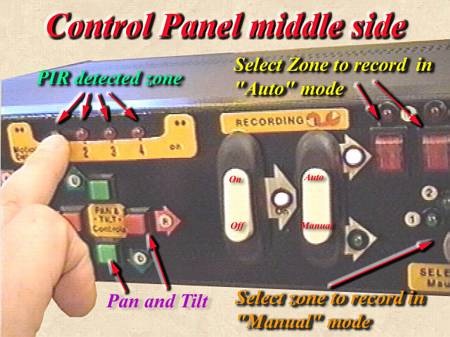

This is a detailed view of Power unit's left side control panel.
There are :

• PAN and TILT push buttons  - After selecting camera by Cannel Selector, you can change Cameras position as you like by pressing Pan & Tilt buttons.
• There are four LED - These are showing in which zone where detected motion, and they are blinking with 2 Hz frequency. You can choose which channel whish to watch in Manual mode.

• RECORDING switches  - There are two switches for selecting Recording mode :

1. ON / OFF Recording  - Select ON position, if you wish to record on Video tape recorder, pictures from selected zone.

2. AUTO / MANUAL Recording  - This switch is in service only if  ON / OFF Recording switch is turned in ON position.

 In AUTO position, when is detected any motion in one zone, the Video tape recorder will start automatically to record. Each zone are hierarchically implemented by hardware. If there are detected motion in two different zone in same time, then will be recorded only most important one. Zone hierarchy will be fixed at commissioning time for POWER UNIT .

If no motion is detected for more than 2 minutes, then Controller will give Standby command to Video recorder. If there is still no motion detected, for more than 15 minutes, then Controller will give Power Off command to POWER UNIT.

 In MANUAL position you are able to record any selected channel.
