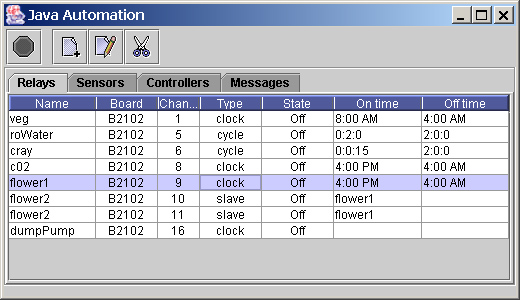

Lists currently defined relays and their status.
Name	Name of relay
Board	The controller for this relay
Channel	Channel number on board (1 based)
Type	Clock: time fields (and optional conditions) are used to control this relay. The time is in military format. Cycle: time fields (and optional conditions) are used to control this relay. The "On time" is the amount of time to run in the ON mode; the "Off time" is the amount of time to run in the OFF mode. Slave: This relay follows the on/off state of a specified relay. The "On time" column is used to display the slave relay name.
State	On/off state of relay

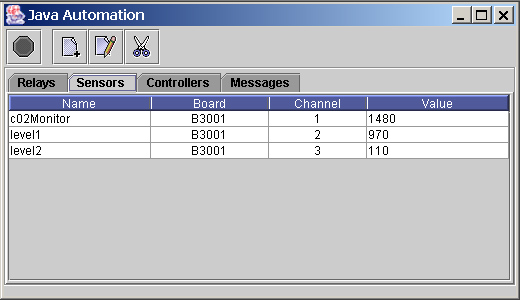

Lists currently defined sensors and their values.
Name	Name of sensor
Board	The controller for this sensor
Channel	Channel number on board (1 based)
Value	The last read value from the sensor

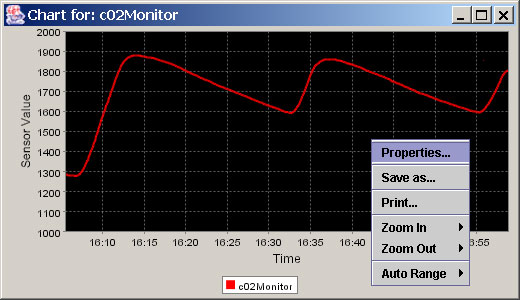

To change chart settings, right click on chart.

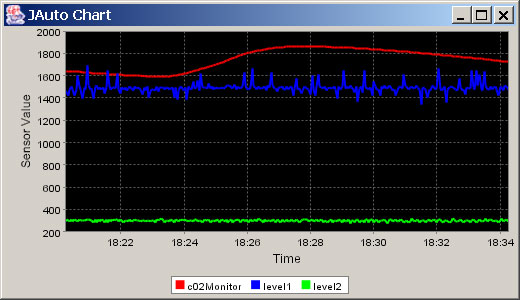

To chart multiple sensors in one chart, select the sensors then click on the chart icon.

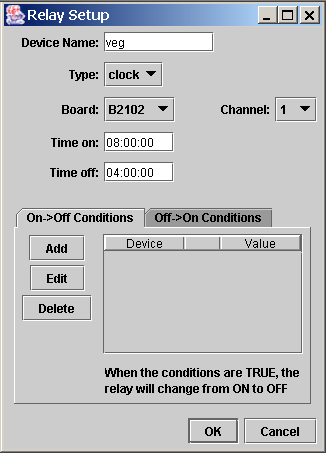

Settings for my "veg" light. On at 8am, off at 4am.

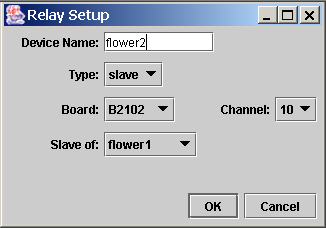

Settings for one of my "flower" lights. It's a slave of "flower1".

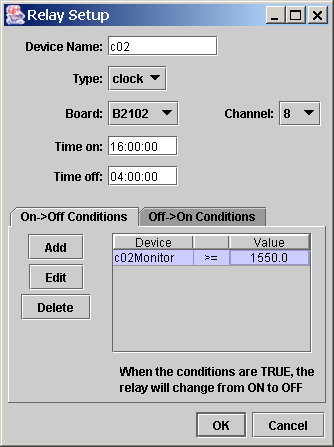

Settings for my c02 generator. This relay uses conditions to trigger based on the sensor "c02Monitor". When the relay is on, and the sensor "co2Monitor" reads 1550 or higher, the generator will turn off.

When the relay is off, and the sensor "co2Monitor" reads 1400 or lower, the generator will turn on.

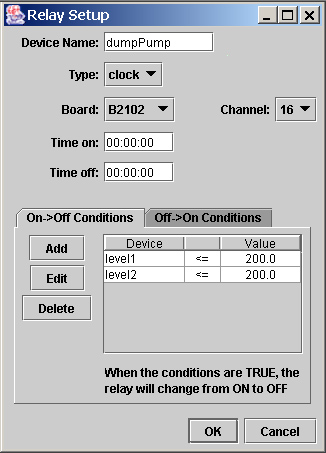

This relay uses conditions to trigger based on the readings of two sensors. When the relay is on, and the sensors "level1" and "level2" *both* read 200 or lower, the relay will turn off. I use two level sensors and a pump to keep a DTW res empty; these settings provide for that.

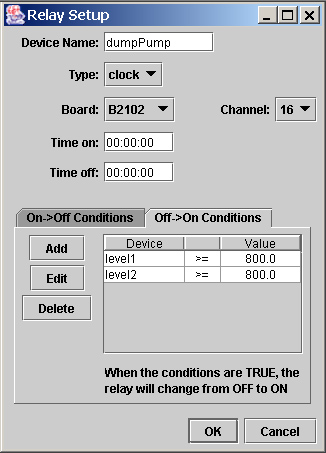

When the relay is off, and the sensors "level1" and "level2" *both* read 800 or higher, the relay will turn on.
