Transmission

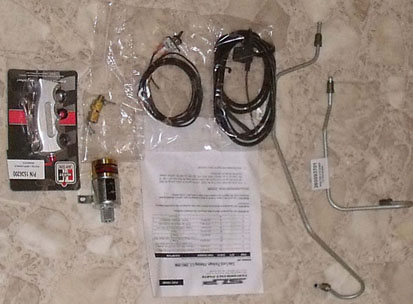

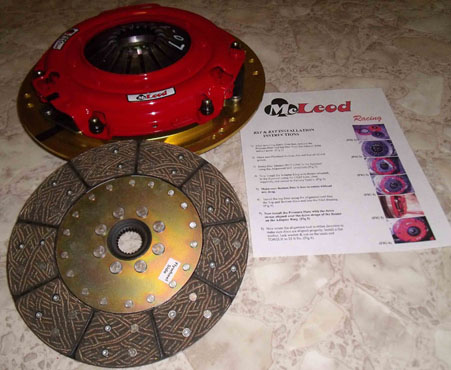

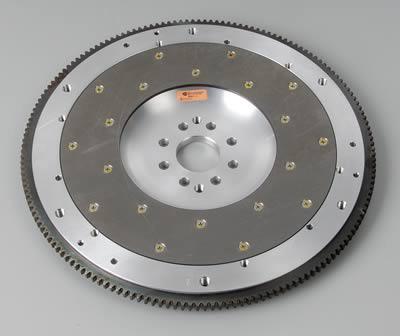

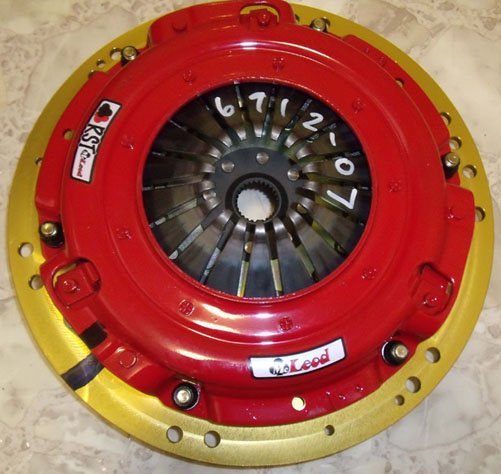

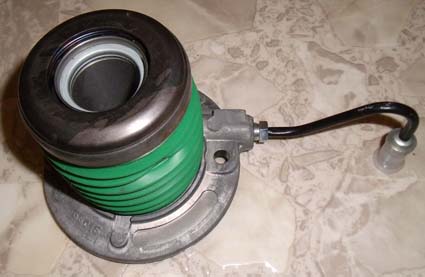

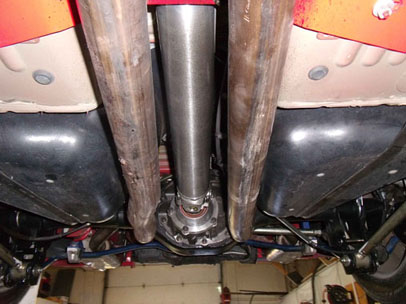

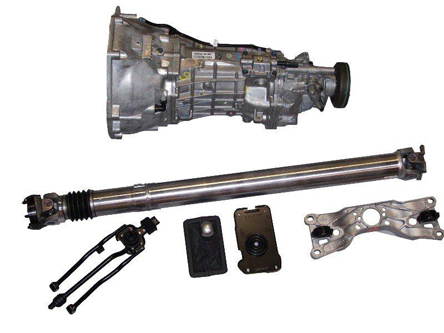

The TR-6060 is a six speed Transmission rated at 700lb. ft. of torque with heavy duty 26T input and 31T output shafts. This kit includes the bell housing, short throw shifter, Cross member, Transmission mount, Leather shifter & boot, and mounting hardware. Note: (TREMEC TR6060 features greatly increased torque capacity with 6 forward gears. Gear ratios are 2.97 1st; 1.78 2nd; 1.30 3rd; 1.00 4th; .80 5th; and .63 for 6th gear). Drive shaft installed with Driveshaft Safety Loop. McLeod RST Street Twin Disc Clutch 26 splines input shaft is intended for the high horsepower street fan and able to handle 800HP with smooth engagement. Fidanza Aluminum Flywheel-6 bolts. SLP line lock Brake-Control package. CNC billet aluminum Hurst Pistol-Grip Shifter Handle equipped with a 12-volt 10 amp capacity normally open snap action switch which will be used for activating the Roll/Control Line lock accessory.

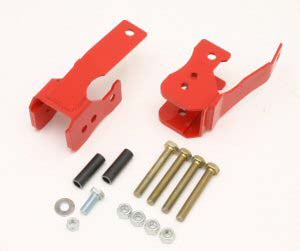

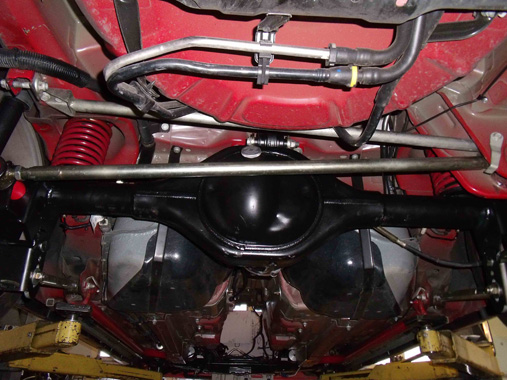

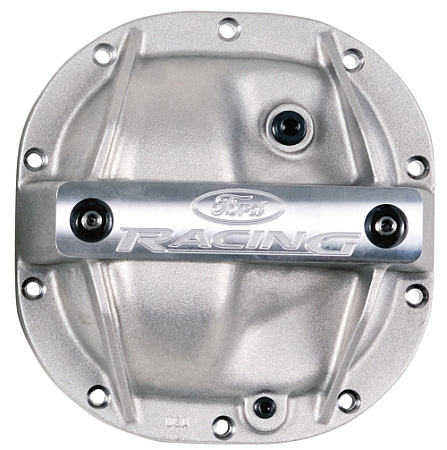

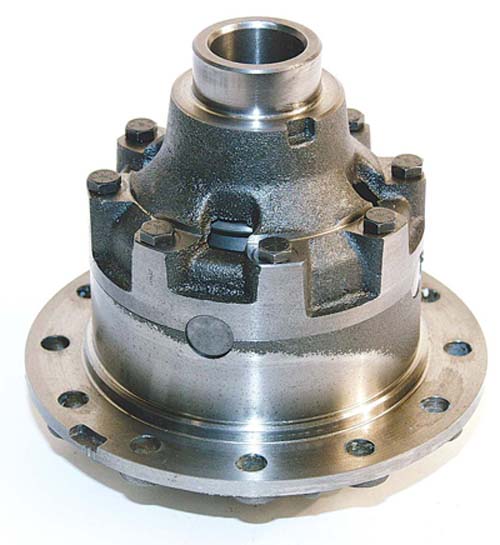

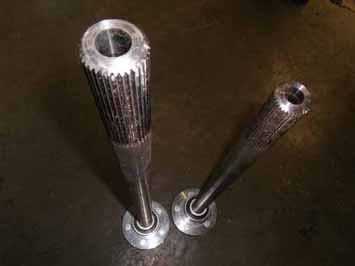

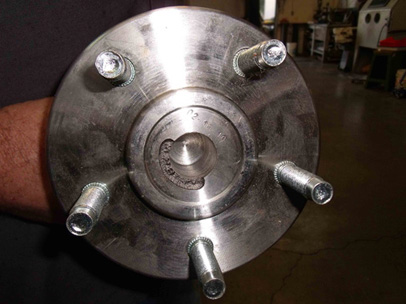

Moser 9” Complete Rear End w/ Detroit Locker 35 Spline; Motive Ring and Pinion Gear Ratio 4:11; Gun drilled Axle; Fill and drain bungs; Powder Coated Black; Moser Engineering 9" Center Section. Moser Engineering Ford 9" rear is the ultimate in "bullet-proof" performance and longevity; Ford Racing Axle Girdle lightweight 356T aluminum-cast; bearing cap stud kit; Rear Control Arm Relocation Kit.
