| Assembly | ||||||||||||||
| In keeping with the simple concept of this unit, I kept the electrics to a bare minimum. The lead coming of the HOT leg from the wall was run to the foot switch and then to the dimmer switch. Then it was connected to one side of the primary. The other side of the primary was connected to the natural. All the wiring and dimmer switch was installed on the transformer. The secondary is then tied to the hand piece. That's It! The following is a component layout and electrical schematic. | ||||||||||||||

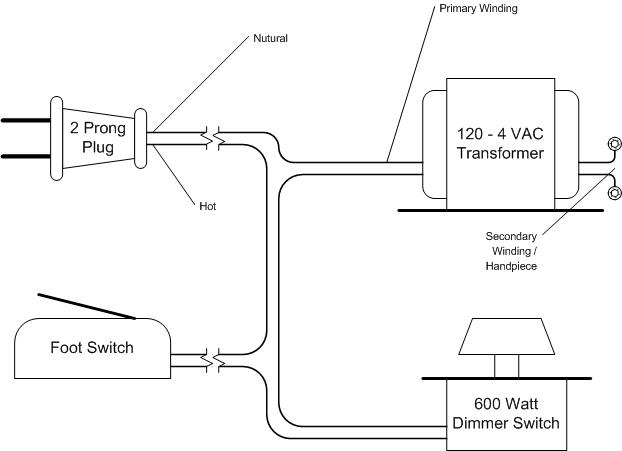

| Component Layout | ||||||||||||||
|
||||||||||||||
| Electrical Schematic | ||||||||||||||
|
||||||||||||||
