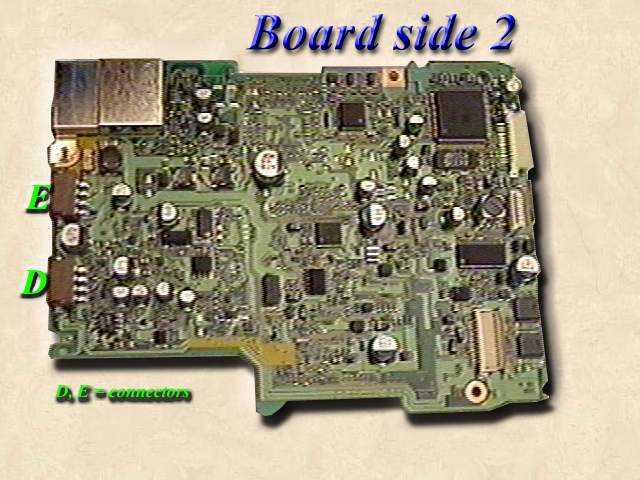

Here is a view of Motherboard side 2.   I made notation D and E only just for connectors which are necessary to modify.....   another connectors leave them alone, they no need anymore for this project.

connector to jump at detailed description for modification.                                 Also you can use following link from below :

D, E connector

Board Side 1

---
