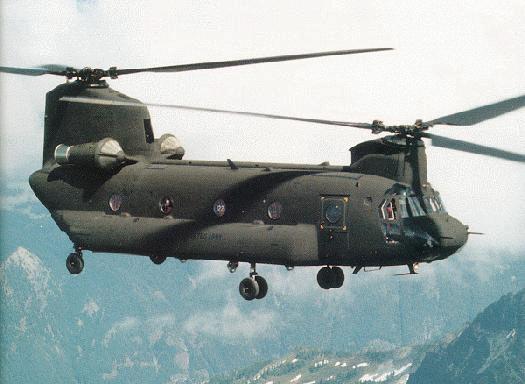

Name | CH-47D "Chinook" (Boeing Vertol Company) |
Type | Cargo, troops, and weapons transport helicopter |
Year | March 1979 |
Engine | Two Allied Signal Engines T55-L-712: 3750 shp. |
Rotor Speed | 225 r/min |
Rotor Type | Fiberglass construction |
Payload | vehicles, artillery pieces,
33 to 44
troops, or 24 litters plus two medical attendants |
Weight | 24,300 pounds (11,032 kilograms) |
Max. speed | 163 mph (142knots) |
Operational Range | 50 NM |
Service ceiling | 10,000+ feet |
Crew | Cabin-troop seats/litters:33/24
Cockpit-crew seats:2 |
Armament | M60D 7.62mm machine guns
on the M24 armament subsystem
M60D ramp mounting using the M41 armament subsystem AN/ALE-39 Chaff system and SUU-4/1 Flare dispensers |
Maximum airspeed is 170 knots with a normal cruise speed of 130 knots.
However, speed for any mission will vary greatly
depending on load configuration (internal or external), time of day,
or weather conditions. The minimum crew for tactical
operations is four, two pilots, one flight engineer, and one crew chief.
For more complex missions, such as NVG operations and air
assaults, commanders may consider using five crew members and add one
additional crew chief.
Development of the medium lift Boeing Vertol (models 114 and 414) CH-47
Series Chinook began in 1956. Since then the
effectiveness of the Chinook has been continually upgraded by successive
product improvements, the CH-47A, CH-47B, CH-47C,
and CH-47D. The amount of load a cargo helicopter can carry depends
on the model, the fuel on board, the distance to be flown,
and atmospheric conditions.
The CH-47B was introduced by Boeing after a production run of over 350
CH-47A’s . The B model introduced the Lycoming
T55-L7C engine, a beefed up airframe. Nonsymmetrical rotor blades,
and the blunted aft pylon for better stability. Boeing began
delivering the CH-47B in May of 1967 and eventually produced a total
of 108 B models before production shifted to the CH-47C.
The CH-47C Chinook model has a maximum cargo hook capacity of 20,000
pounds. The CH-47C has only a single cargo hook
below the center of the aircraft. When hooking a single load, soldiers
use the main hook. They must coordinate closely with the
aircrew as to which hooks to use when carrying multiple loads. The
planning figure for the fore and aft hooks is 10,000 pounds
each. The Army’s continued need for further performance improvements
lead to the development of the CH-47C. Designed to
meet an Army requirement to transport a 15,000 pound sling load over
a 30 mile radius, the C model boasted an increased gross
weight to 46,000 pounds, increased fuel capacity, the Lycoming T55-L11
engine developing 3750 shp, and addition structural
improvements. The first C model flew in late 1967 and became the mainstay
of the Chinook fleet until the advent of the CH-47D.
Production of the C model continued until 1980 with improvements such
as the crash worthy fuel system and fiberglass rotor
blades being incorporated into the fleet.
The CH-47D was the result of June 1976 contract for a modernized Chinook.
The Army recognized that that the Chinook fleet
was rapidly reaching the end of its useful life and signed a contract
with Boeing to significantly improve and update the CH-47.
Three airframes, CH-47A, CH-47B, and a CH-47C, were stripped down to
their basic airframes and then rebuilt with improved
systems to provide three CH-47D prototypes. Improvements included upgraded
power plants, rotor transmissions, integral
lubrication and cooling for the transmission systems, and fiberglass
rotor blades. Other improvements included a redesigned
cockpit to reduce pilot workload, redundant and improved electrical
systems, modularized hydraulic systems, an advanced flight
control system, and improved avionics. The Chinook has two tandem three-bladed
counter-rotating fiberglass rotors. The CH-47D
is powered by two Allied Signal Engines T55-L-712 3750 shp turboshaft
engines and has a maximun speed of 163 mph (142
knots). The CH-47D was rolled-out in March 1979. The CH-47D carrys
twice the load of a CH-47A and has improved
performance. The CH-47D can operate at night and in nearly all weather
conditions. The CH-47D is equipped with an air-to-air
refueling probe. The Chinook can accommodate a wide variety of internal
payloads, including vehicles, artillery pieces, 33 to 44
troops, or 24 litters plus two medical attendants. The Chinook can
be equipped with two door mounting M60D 7.62mm machine
guns on the M24 armament subsystem and a ramp mounting M60D using the
M41 armament subsystem. The "D" model can
carry up to 26,000 pounds externally. The CH-47D has three cargo hooks:
a center (main) hook and two additional hooks fore and
aft of the main hook.
During Desert Storm "the CH-47D was often the only mode of transportation
to shift large numbers of personnel, equipment, and
supplies rapidly over the vast area in which US forces operated. The
cargo capacity and speed provided commanders and
logisticians a capability unequalled by any Army in the world." (Army
Aviation in Operation Desert Storm, 1991) During the
ground phase, the flanking maneuver executed by the XVIII Airborne
Corps was planned with the CH-47D as the keystone.
Forward Operating Base Cobra was deliberately positioned to accommodate
the combat radius of a fully loaded CH-47D. Cobra
was initially secured by an air assault of the 101st's 2nd Infantry
Brigade. This air assault, consisting of 5000 soldiers, was
accomplished by a total of 126 Blackhawks and 60 Chinooks. By the end
of the first day the CH-47Ds had lifted 131,000 gallons
of fuel along with pallets of combat-configured ammunition for the
next day's fight. Forty separate refueling and rearming points
were active in FOB Cobra in less than two hours.
During peacekeeping operations in Bosnia, a Chinook company (A company,
5th Battalion, 159th Aviation Regiment) of 16
aircraft flew 2,222 hours, carried 3,348 passengers, and transported
over 3.2 million pounds of cargo over a six month period.
These numbers equate to carrying 112 infantry platoons, 545 HMMWVs,
or 201 M198 Howitzers. The most publicized mission
was assisting the 502d Engineer Company build a float bridge across
the flooded Sava River allowing the 1st Armored Division to
cross into Bosnia. On 29 and 30 December 1995, Big Windy lifted bridge
bays and dropped them into the Sava River so the
engineers could quickly assemble the bridge. When the Sava River flood
washed away the engineer's tentage and personal
equipment, Big Windy quickly resupplied the engineers so they could
continue their vital mission. Additionally, a key early mission
in support of NATO was the recovery of Admiral Smith's aircraft. The
Blackhawk had performed a precautionary landing for
what was later found to be a transmission seizure. A CH-47D sling-loaded
the Blackhawk back to the Intermediate Staging Base
(ISB). Big Windy began redeploying to Giebelstadt on 14 June 1996.
One platoon of six CH-47Ds remained in Hungary
throughout 1997.
The Fatcow is a CH-47 with the Extended Range Fuel System [ERFS] II
system located in the cargo bay. The configuration
consists of three or four fuel tanks attached to a refueling system.
The system contains 2400 gallons of JP4/8 excluding the CH-47
internal fuel load of 1050 gals. The Fatcow can set up a 1,2,3,or 4
point system using HTARS. The fuel cells must be
crash-worthy and self sealing up to 50 caliber hits.

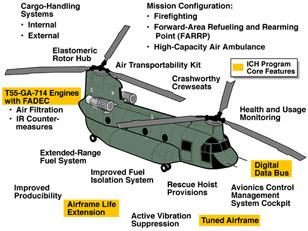

The The Improved Cargo Helicopter (ICH) is a remanufactured version
of the CH-47D Chinook cargo helicopter with the
new T55-GA-714A engines. The ICH program is intended to restore CH-47D
airframes to their original condition and extend the
aircraft's life expectancy another 20 years (total life of 60 years)
until the 2025-2030 timeframe. The program will remanufacture
CH-47 aircraft, reduce the aircraft's vibration, thereby reducing Operations
and Support costs, and allow the aircraft to operate on
the digitized battlefield by incorporating a 1553 data bus. The ICH
will also acquire the capability to carry 16,000 pounds of
external/internal cargo for a 50 NM combat radius at 50 NM combat radius
at 4000 feet pressure altitude and 95 degrees fahrenheit. In addition,
the following improvements will be incorporated into the aircraft:
Additional improvements may be incorporated into the aircraft if
funding permits. The ICH will transport weapons, ammunition,
equipment, troops, and other cargo in general support of combat units
and operations other than war. The ICH is a dominant
maneuver platform that provides focused logistics to the force. The
ICH program was built as a "bare bones" program to satisfy
the battlefield requirements of operations on the 21st century digital
battlefield by replacing the existing 1970s technology cockpit
with a new cockpit.
The 101st Air Assault Division is scheduled to receive the first ICH
in FY03. The First Unit Equipped (FUE) date to the 101st, a
company of sixteen aircraft, is FY04. The 101st, 18th Airborne Corps,
Korea, and USAREUR will complete fielding through
FY09. ICH completes the fielding of 300 aircraft in 2015. Only 300
of the 431 CH-47Ds convert to ICHs based on the fielding of
JTR. As the Army fields JTR to Force Package One units, the ICH aircraft
will cascade to units that retained CH-47Ds. Those
CH-47Ds would retire.
Separate programmatically from the ICH
program, the 714 engine program is an Engineering Change Proposal (ECP)
to
convert the present T-55-712 engines
to a T-55-714 engine. This buys back performance on high/hot days lost
over time
by the addition of weight through modification
work order enhancements. Specifically, it will provide an increased lift
capability allowing the CH-47 to transport 16,000 pounds for an unrefueled
combat radius of 50 nautical miles at 4,000 feet PA
and 95 degrees F. The ICH Operational Requirements Document (ORD) requires
the CH-47F(ICH) to carry 16,000lbs at
4000ft/95’ for a 50nm combat radius (50nm with load, return empty).
The CH-47D -714A engine program achieves this
requirement. The -714A engine program converts current CH-47D -712
engines to -714A engines. The engine program converts
the engines on all 431 CH-47D aircraft. The -714A engine begins fielding
in FY99 and, because of recent budget cuts, completes
in FY09. 160th (Hunter), 101st, 18th AB Corps, Korea, and Germany are
scheduled to be fielded through FY05. The -714A
budget constantly fluctuates because of plus-ups and decrements. For
this reason, the fielding dates may change.
The MH-47E Special Operations Aircraft
(SOA) is a derivative of the Boeing CH-47 Chinook. Included with other
modifications is a significantly increased
fuel capacity with modified main and auxiliary fuel tanks. The aircraft
has
modified integrated avionics suites
and multi-mode radars and is intended to provide adverse-weather
infiltration/exfiltration and support to US Military Forces, country
teams, other agencies and special activities. The CH-47D
Chinook has been specially modified to perform the special operations
mission and has been tested in combat. The three versions
of the CH-47 in the Army inventory are the CH-47D, the MH-47D, and
the MH-47E. The MH-47D and the MH-47E are air
refuelable. It provides long-range penetration, medium assault helicopter
support to special operations forces. Depending on the
version, it can be ferried 1,100 to 2,000 nautical miles unrefueled.
During Operation Just Cause, CH-47s conducted H-hour
assaults to support other elements who were air-landing SOF to disrupt
enemy responses and seize key facilities. During
Operation Desert Storm, the CH-47 conducted infiltration and exfiltration
of SOF and CSAR of downed pilots. MH-47E testing
was limited to the major change to the aircraft which affects vulnerability.
In the case of the MH-47E, this was the addition of an
800 gallon Robertson Auxiliary Fuel Tank in the cabin and Boeing designed
sponson tanks with expanded capacity and honeycomb
shell construction. Analyses conducted during the test planning phase
revealed that the largest potential vulnerability was
associated with projectiles entering the fuel tanks in the volume above
the liquid fuel. Such impacts could ignite the fuel vapors and
cause explosions and/or fires with serious consequences. During test
planning, USSOCOM decided to add an inerting system to
the fuel tanks to avoid such fires/explosions. This will be a lead-the-fleet
system that will be available for similar helicopter variants
in other fleets as well.
