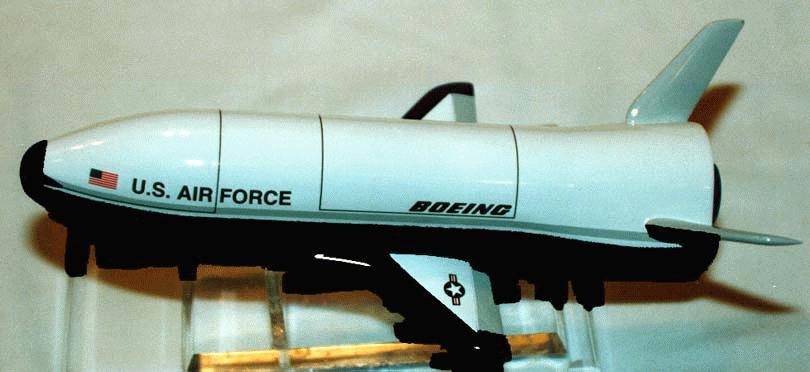

X-40 Military Spaceplane ,Space Maneuver Vehicle Integrated ,and Tech Testbed



Air Force interest in military spaceplanes stretches back nearly 40 years. This has taken the form of science and
       technology development, design and mission studies, and engineering development programs. Examples of these
       activities include: the first Aerospaceplane program and Dyna-Soar/X-20 program (late 1950s-early 1960s); X-15
hypersonic and X-24 lifting body flight test programs (late 1950s through early 1970s); Advanced Military Space Flight
Capability (AMSC), Transatmospheric Vehicle (TAV), and Military Aerospace Vehicle (MAV) concept and mission studies
(early 1980s); the Copper Canyon airbreathing single-stage-to-orbit (SSTO) feasibility assessment and the National
Aerospace Plane (NASP) program (1984-1992); SCIENCE DAWN, SCIENCE REALM, and HAVE REGION
rocket-powered SSTO feasibility assessments and technology demonstration programs (late 1980s); and, most recently, the
Ballistic Missile Defense Organization's Single-Stage Rocket Technology program that built the Delta Clipper-Experimental
(DC-X) experimental reusable spaceplane.

Industry sources are being sought to develop critical technologies for future military spaceplanes using ground based advanced
technology demonstrations. The first step is envisioned to include a streamlined acquisition that develops, integrates and tests
these technologies in an Integrated Technology Testbed (ITT). Due to constrained budgets, the Air Force is seeking innovative,
"out of the box", industry feedback and guidance to: 1) develop and demonstrate key military spaceplane technologies, 2)
ensure competitive industry military spaceplane concepts are supported via critical technology demonstrations, and 3) ensure a
viable, competitive military spaceplane industrial base is retained now and in the future.

The primary objective of the ITT is to develop the MSP Mark I concept design and hardware with direct scaleability: directly
scaleable weights, margins, loads, design, fabrication methods and testing approaches; and traceability: technology and general
design similarity, to a full-scale Mark II-IV system. The ITT is intended to demonstrate the technologies necessary to achieve
systems integration within the mass fraction constraints of Single Stage to Orbit (SSTO) vehicles. In addition, the ITT will meet
the military operational requirements outlined in the MSP SRD. The ITT is an unmanned ground demonstration. The Mark I
demonstrator is also envisioned to be unmanned.

The Military Spaceplane (MSP) ITT ground demonstration consists of an effort to develop a computer testbed model. It may
also include options for multiple technology, component and subsystem hardware demonstrations to support and enable the
acquisition and deployment of MSP systems early in the next century. Although the ITT is not a flight demonstrator, it is
anticipated that critical ground Advanced Technology Demonstrator (ATD) components and subsystems shall be designed,
fabricated and tested with a total systems and flight focus to demonstrate the potential for military "aircraft like" operations and
support functions. The latter point refers to eventual systems that 1) can be recovered and turned around for another mission in
several hours or less on a routine basis, 2) require minimal ground and flight crew to conduct routine operations and
maintenance , 3) are durable enough to sustain a mission design life of hundreds of missions, 4) are designed for ease of
maintenance and repair based on military aircraft reliability, maintainability, supportability and availability (RMS&A) standards
including the use of line replaceable units to the maximum extent possible, and 5) can be operated and maintained by military
personnel receiving normal levels of technical training. The ITT effort is envisioned to culminate with a vigorous integrated test
program that demonstrates how specific components and subsystems are directly traceable and scaleable to MSP system
requirements and meet or exceed these operational standards.

The testbed itself shall be a computer sizing model of the Military Spaceplane. Input parameters include mission requirements
and all of the critical component, subsystem and system technical criteria. Output are the critical design features, size, physical
layout, and performance of the resulting vehicle. The computer model shall be capable of modeling the technology componenta,
subsystems and systems demonstrated characteristics and the resulting effect(s) on the Military Spaceplane vehicle concept
design. Although the ITT is required to show analytical component and subsystem scaleability to SSTO, the contractor may
also show scaleability and traceability to alternative MSP configurations. Those alternatives may include two stage to orbit
(TSTO) configurations. The ITT is using SSTO as a technology stretch goal in the initial ground demonstrations. However, a
future Military Spaceplane can use either single or multiple stages.

The contract structure for ITT is anticipated to be Cost Reimbursement type contracts with possible multiple options and a total
funding of approximately $125-150M. Due to initial funding limitations, the minimum effort for the contract is anticipated to
consist of a broad conceptual military spaceplane design supported by a computer testbed model. However, should funding
become available, additional effort may be initiated prior to the conclusion of the testbed model design. Offerors will be
requested to submit a series of alternatives for delivery of major technology components and subsystems as well as an
alternative for subsystem/system integration and test.

Upon direction of the Government through exercise of the option(s) the contractor shall design, fabricate, analyze, and test
Ground Test Articles (GTAs), and provide a risk reduction program for all critical technology components, subsystems and
subsystems assembly. The contractor will prepare options for an ITT GTA designs which satisfy the technical objectives of this
SOO, including both scaleability and traceability to the Mark I and Mark II-IV vehicles. These design shall be presented to the
Government at a System Requirements Review (SRR). The contractor shall use available technologies and innovative concepts
in the designs, manufacturing processes, assembly and integration process, and ground test. Designs shall focus on operational
simplicity and minimizing vehicle processing requirements. The contractor shall provide the detailed layout and systems
engineering analysis required to demonstrate the feasibility and performance of the Mark I vehicle as well as scaleability and
traceability to the Mark II-IV vehicles. The low cost reusable upper stage (i.e., mini-spaceplane) is envisioned to be an integral
part of an overall operational MSP system.

The contractor shall use the ITT to implement the initial risk reduction program that mitigates risks critical to developing both
the Mark I and Mark II-IV MSP configurations. The ITT shall mitigate risks critical to engineering, operability, technology,
reliability, safety, or schedule and any subsequent risk reduction program deemed necessary. The program may include early
component fabrication, detailed vehicle integration planning or prudent factory and ground/flight testing to reduce risks. The
Technology levels will be frozen at three points in the Military Spaceplane Program (MSP): At the ITT contract award for the
Ground Demonstrator, at contract award for any future Flight Demonstrator, and at contract award for an orbital system EMD.

Since the ITT is not a propulsion demonstration/integration effort there are two parallel propulsion efforts. One in NASA for
the X-33 aerospike, and one in the AF for the Integrated Powerhead Demonstration ( IPD). It is anticipated that the Mark I
demonstrator would use an existing engine. Propulsion modifications and integration will be addressed in the offerors concept
design but limited funding probably precludes any new engine development. The contractor should evaluate the use of the
Integrated Powerhead Demonstration (IPD) XLR-13X engine as a risk reduction step being done in parallel and as a baseline
engine for MSP. LOX/LH2 offers an excellent propellant combination for future Military Spaceplanes. Nearer term
demonstrators, however, may be asked to use alternative propellants with superior operability characteristics.

MAXIMUM PERFORMANCE MISSION SETS

Maximum Performance Missions Sets are system defining and encompass the four missions and the Design Reference
Missions. Instead of giving a threshold and objective for each mission requirement, missions sets are defined. Each mission set
will define a point solution and provide visibility into the sensitivities of the requirements from the thresholds (Mark I) to the
objective (Mark IV). If takeoff and landing bases are constrained to the U.S. (including Alaska and Hawaii), this will reduce
stated pop-up payloads by at least half.

Mark I (Demonstrator or ACTD non-orbital vehicle that can only pop up)

     Pop-up profile: Approximately Mach 16 at 300 kft at payload separation
     Pop up and deliver 1 to 3 klbs of mission assets (does not include boost stage, aeroshell, guidance or propellant) to any
     terrestrial destination
     Pop up and deliver 3 to 5 klbs of orbital assets (does not include upperstage) due east to a 100 x 100 NM orbit
     Payload bay size 10' x 5' x 5', weight capacity 10 klbs

Mark II (Orbit capable vehicle)

     Pop up and deliver 7 to 9 klbs of mission assets (does not include boost stage, aeroshell, guidance or propellant) to any
     terrestrial destination
     Pop up and deliver 15 klbs of orbital assets (does not include upperstage) due east to a 100 x 100 NM orbit
     Launch due east, carrying 4-klb payload, orbit at 100 x 100 NM
     Payload bay size 25' x 12' x 12', weight capacity 20 klbs

Mark III

     Pop up and deliver 14 to 18 klbs of mission assets (does not include boost stage, aeroshell, guidance or propellant) to
     any terrestrial destination
     Pop up and deliver 25 klbs of orbital assets (does not include upperstage) due east to a 100 x 100 NM orbit
     Launch due east, carrying a 6-klb payload, orbit at 100 x 100 NM and return to base
     Launch polar, carrying 1-klb payload and return to base
     Payload bay size 25' x 12' x 12', weight capacity 40 klbs

Mark IV

     Pop up and deliver 20 to 30 klbs of mission assets (does not include boost stage, aeroshell, guidance or propellant) to
     any terrestrial destination
     Pop up and deliver 45 klbs of orbital assets (does not include upperstage) due east to a 100 x 100 NM orbit
     Launch due east, carrying a 20-klb payload, orbit at 100 x 100 NM and return to base
     Launch polar, carrying 5-klb payload and return to base
     Payload bay size 45' x 15' x 15', weight capacity 60 klbs

REFERENCE MISSIONS TO MISSION SETS MATRIX


      Ref Mission          Mark I       Mark II        Mark III         Mark IV

Payload Bay Data         10' x 5' x   25' x 12' x     25' x 12' x     45' x 15' x
                             5'           12'             12'             15'
                          10 klbs       20 klbs         40 klbs         60 klbs

DRM 1 (Pop up and         1-3 klb      7 to 9 klb    14 to 18 klb    20 to 30 klb
deliver mission
assets)

DRM 2 (Pop up and         3-5 klb        15 klb         25 klb          45 klb
deliver orbit assets
due east 100 x 100 NM)

DRM 3 (Co-Orbit)            N/A        4 klb due    6 klb due east    20 klb due
                                       east 100 x    100 x 100 NM   east 100 x 100
                                         100 NM                           NM

DRM 4 (Recover)             N/A           TBD             TBD             TBD

DRM 5 (Polar Once           N/A           N/A            1 klb           5 klb
Around)





NOTES:

Mission asset weight is a core weight and does not include a boost stage, aeroshell, guidance or propellant.

Orbital asset weight does not include an upperstage.


                  Requirements Matrix for Mark II, III and IV
                             (Desired for Mark I)
