AGM-142 "Raptor"


Missile  AGM-142 "Raptor" (Precision Guided Systems United States Orlando, Florida )
Mission  Offensive counterair, interdiction, suppression enemy air defense, naval anti-surface warfare
Year  1992
Guidance Method  Television and imaging infrared
Targets  Mobile soft, fixed hard, fixed soft, maritime surface
Launch Systems  B-52
Range  50+ nautical miles
Quantity  130

The AGM-142 Have Nap is an Israeli-built Popeye missile being acquired by the USAF. The AGM-142 is a medium range conventional stand off missile provides the Air Force with a precision man-in-the-loop capability for the B-52H to attack high value, fixed targets from standoff ranges. The AGM-142 provided the first precision guided munitions capability for the B-52H platform. The program is managed by the Precision Strike System Program Office at Eglin Air Force Base, Florida and is produced by Precision Guided Systems United States (PGSUS) of Orlando, Florida.
The Have Nap has an inertial guidance system with data link, TV, or imaging infra-red homing. The munition's data link provides for single aircraft operation or the munition's guidance may be turned over to a second aircraft allowing the first aircraft to leave the area. The AGM-142 weighs 3000 lbs. It is 190 inches long, 21 inches in diameter, has a wing span of 78 inches, and is powered by a solid propellant rocket motor. The missile has a range in excess of 50 nautical miles. Warheads and seekers are modular and allow for four missile configurations. The AGM-142 can be assembled with a 750-pound blast fragmentation warhead or an I-800 penetration 770-pound warhead and can employ either a television or an imaging infrared seeker.
Have Nap, although a very capable weapon system, was not used during Desert Storm. The Air Force Gulf War Airpower Study speculated that it was not used because of the policy implications of launching an Israeli-made weapon against an Arab country.
Representative targets for Have Nap include power plant transformers, generators, and cooling towers; POL refinery cracking/ distillation towers; radar or communication site control vans/buildings; and research and development facilities. Upgrades to the Have Nap weapon system ongoing after Desert Storm included an imaging infrared seeker and an I-800 penetrating warhead.
The AGM-142, currently in production, incorporates a Producibility Enhancement Program (PEP) that was initiated in October 1993. The program has gone through a series of three PEP efforts that have reduced missile costs and decreased logistics and maintenance requirements while increasing maintainability and overall operational capability. The PEP efforts consisted of changes in the manufacturing process and materials for the rocket motor casing and missile wings and fins, new Inertial Measurement Unit (IMU), a new closed loop imaging infrared seeker, and an upgraded processor with corresponding reduction of the circuit card assemblies in the missile electronics section.
The newest addition to the AGM-142 missile system is Producibility Enhancement Program (PEP) III. PEP III is a new type of infrared seeker (referred to as a Z-Seeker) and new software to make the system work with future test sets. PEP III went through extensive testing at Barksdale AFB in April 1998. This was a combined test by the developers and the users. Because PEP III gives the users a third seeker, the total number of possible configurations is nine: three seekers on three types of electronics sections. All nine configurations went through all testing.
In May 1998 the AGM-142 Program Office awarded a contract to PRB Associates of Hollywood, MD to produce an AGM-142 Air Force Mission Support System (AFMSS) Weapon Planning Module (WPM). When delivered, the module will allow B-52 radar navigators to plan AGM-142 missions using the same AFMSS system they use to plan aircraft missions. The SPO used an innovative acquisition approach to save the Air Force time and money. Because of the similarity between the AGM-142 and the AGM-130 missions, about 70% of the code PRB developed for the AGM-130 AFMSS WPM will be re-used in the 142 effort. The SPO modified an existing AGM-130 AFMSS contract with PRB to produce the AGM-142 planning module. The re-use of code saved approximately $600K and 6 months of schedule.
Source-USAF





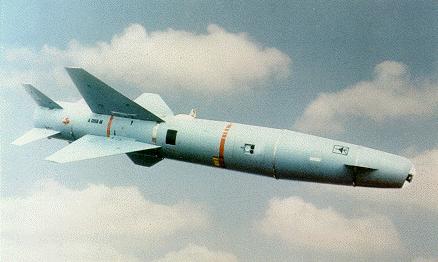

Two AGM-142 with the B-52H.
