bendaboard
���������������������������������������������������������������
The
Pliable MDF Board
The shape of things to come.
MDform
is the wood-based material with unlimited possibilities for quick, easy and
cost-efficient production of large curved areas. Large and small radii can be
produced without splitting and without recoiling.
|

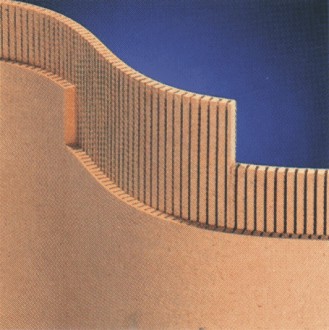

THE SIMPLEST METHOD
For the greatest variety of curvesMDform
bendaboard revolutionizes and has made possible
the use of elaborate designs in the shaping of wood and reducing materials and
labor cost to a minimum. MDform

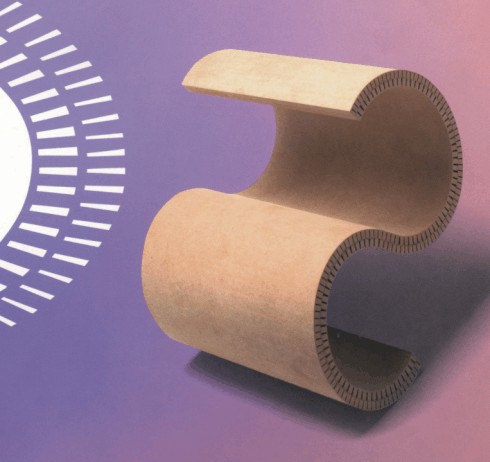

bendaboard allows the production of all curves,
circular and undulating forms within limited radius.
|
|
SHAPING PROCEDURE
Apply glue with a glue roller to the grooved sides of
MDform that are to be
joined together. Place glued boards together and press them and securing them
together with clamps, straps, nails or screws to the ready mould or template.
Allow at least 5 hours curing time before removing from mould.
| Delivery
program and technical data: |
Dimension: |
1220 x 2440
|
| Thickness: |
6
|
9
|
| Min. radius of a board |
20
|
30
|
All sizes, thickness and radii
in mm!
|
 |

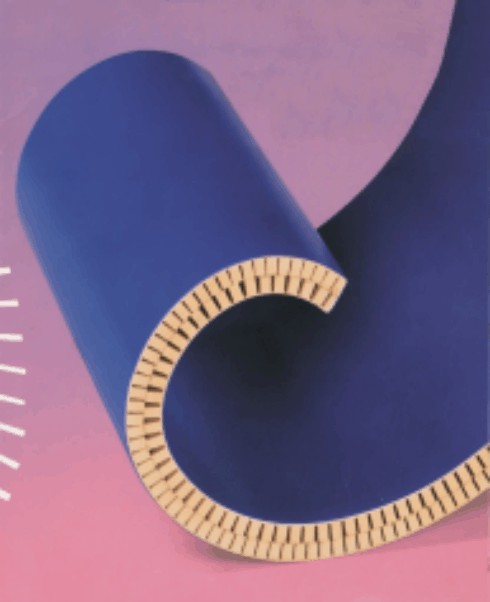

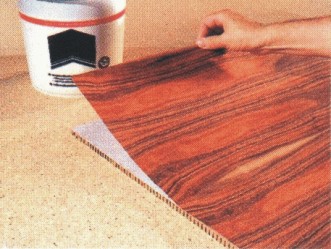

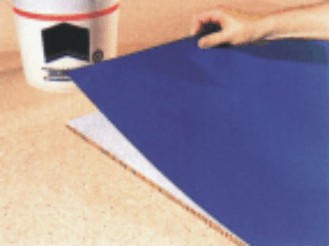

Surfacing
MDform
bendaboard can be prefinished with veneers or laminates. |
 |
 |

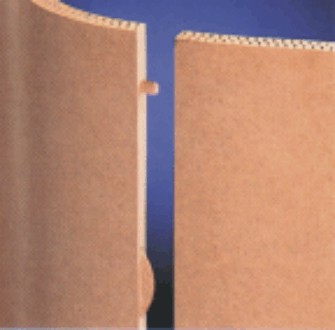

Jointing
MDform
bendaboard can be joined together using
dowels and glue. If the standard MDform
bendaboard width is not adequate, additional boards can be butt-joined and
glued together as shown. |
 |
|
