FLEXBOARD
Fiber Cement Board
Flexboard is a flexible, high strength
fiber cement board used for construction of internal and external walls and
ceilings. It can be used throughout your building as a lining material for wet
areas as well as dry areas. Its ingenuous qualities make Flexboard a |
1. The Product
Flexboard is a flexible, high strength fiber
cement board used for construction of walls and ceilings. Due to its
versatility, it can be used throughout your building as a lining material for
wet areas as well as for dry areas. Flexboard offers the designer a wide range
of design possibilities for ceilings and external soffits. The ingenuous
qualities of fiber cement make Flexboard a superior plywood substitute.
2. Properties
All Flexboard fiber cement boards meet the
high quality standard in line with the company's requirements. Among its first
rate characteristics are:
- Fire-proof
- Water-proof
- Termite and vermin proof
- Rust proof
- Non-corrosive
- Warp proof
- Insulating value
- Economical
| Thickness |
3.2mm,
4.5mm, 5.0mm, 6.0mm, 9.0mm, 12.0mm, 16.0mm, 18.0mm
Other sizes are available upon request. |
| Standard Width |
1,219 mm (4 feet) |
| Standard Length |
2,438 mm
(8 feet) |
Tolerances:
Length/Width
Thickness |
� 4 mm
� 0.2mm |
Standard Weight:
3.2 mm
4.5 mm
5.0 mm
6.0 mm
9.0 mm
12.0 mm
16.0 mm
18.0 mm |
12.80 kg.
18.00 kg.
20.00 kg.
24.00 kg.
36.00 kg.
48.00 kg.
64.00 kg.
72.00 kg. |
| Density |
1.34
gm./cm3 |
| Flexural Strength |
250 kg./cm2 |
| Modulus of Elasticity |
112,500 kg./cm2 |
| Impact Strength |
1.94 KJ./m2 |
3. Fire Resistance
| British
Standard BS476, Parts 5, 6 & 7 |
| Part 5: Test of ignitability |
Designated as P (passed) |
| Part 6: Fire propagation |
Flexboard
satisfies requirement |
| Part 7: Surface spread of flame |
Class 1 |
4.Workability
The strength and flexibility of
Flexboard ensure excellent workability. No extra skills or special tools to
work with are needed. Flexboard is easy to nail, screw, drill and plane using
ordinary carpenter's tools. It can be beveled, V-cut and decorated with wall
paper and tiles. It can also be painted on to give Flexboard a classy finish.

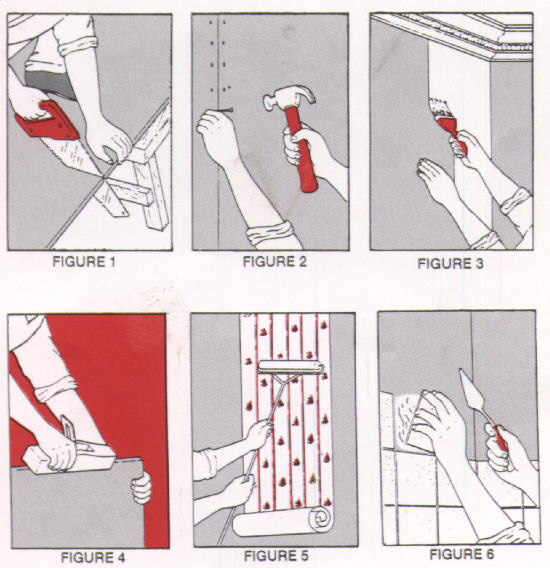

fig.1 - Cut by Handsaw
fig.2 - Can be Nailed
fig.3 - Can be painted
fig.4 - Can be planed
fig.5 - Decorated with wallpaper
fig.6 - As tile backing |
 |
5.
Applications
Flexboard panels have a wide range of application and can be
classified by all means as multipurpose construction boards. Their main fields
of application however are partition and ceilings.
5.1. Wall Partitions
Combining Flexboard sheets with light metal studs to obtain non-load bearing
partitions is a dry work technique which is used world-wide. Without any doubt
this versatile construction system is so popular because of its simplicity and
therefore short installation time. Nevertheless, its characteristic are unbeaten
and meet the highest requirements. The system is so flexible that it can
overcome all difficulties of installation. It can also be used as a base for
tiling in wet areas such as bathrooms, kitchens, changing rooms and laundries.
5.2. Ceilings
Flexboard panels can be combined with several types of
profiles-systems to obtain a variety of suspended ceilings. These systems are
very simple and have short installation time. Their aesthetical and technical
characteristics can meet most requirements. Flexboard ceilings can withstand
high variations in temperature and humidity. It can be installed with flush
joint finish, V-cut finish, or even exposed grid (T-runner) ceilings. The
systems are so flexible that they can overcome all difficulties in detailing
5.3. Other
Applications
The unique properties of Flexboard
also makes it useful in other applications. These are:
- Thermal insulation construction
- Fire protection construction
- Exterior walls and claddings
- Fascias and gables
- Signboards
- Ventilation ducts and shaft enclosures
- Raised Flooring
- Linings for soffits

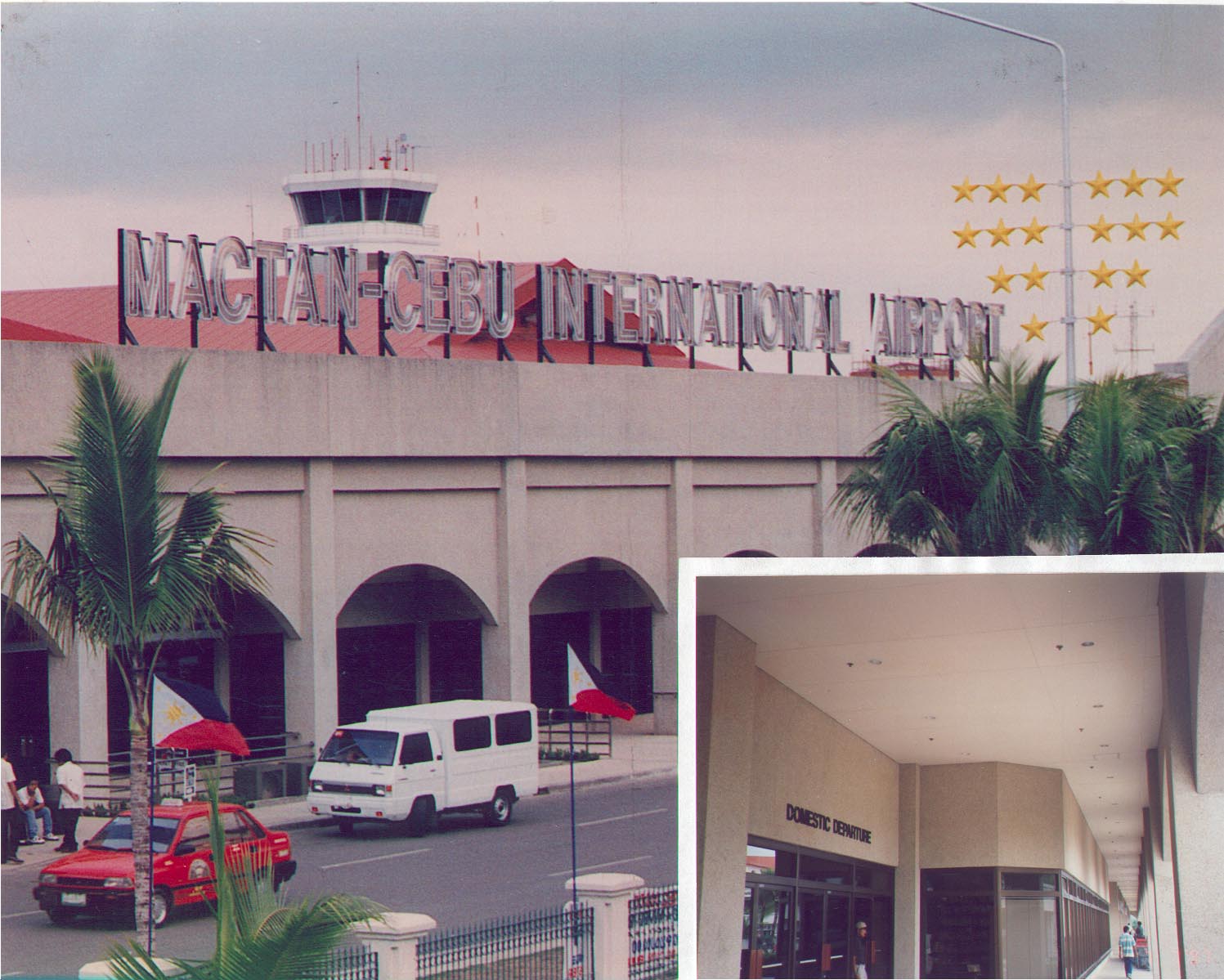

MACTAN-CEBU INTERNATIONAL AIRPORT
Mactan, Cebu

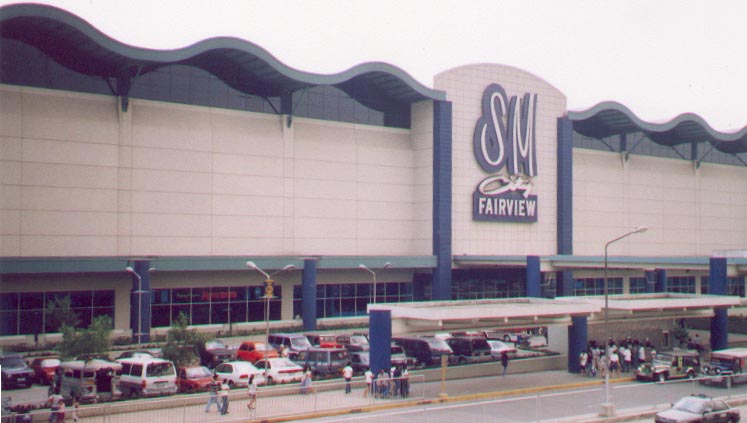

SM SHOEMART MALL
Fairview, Quezon City

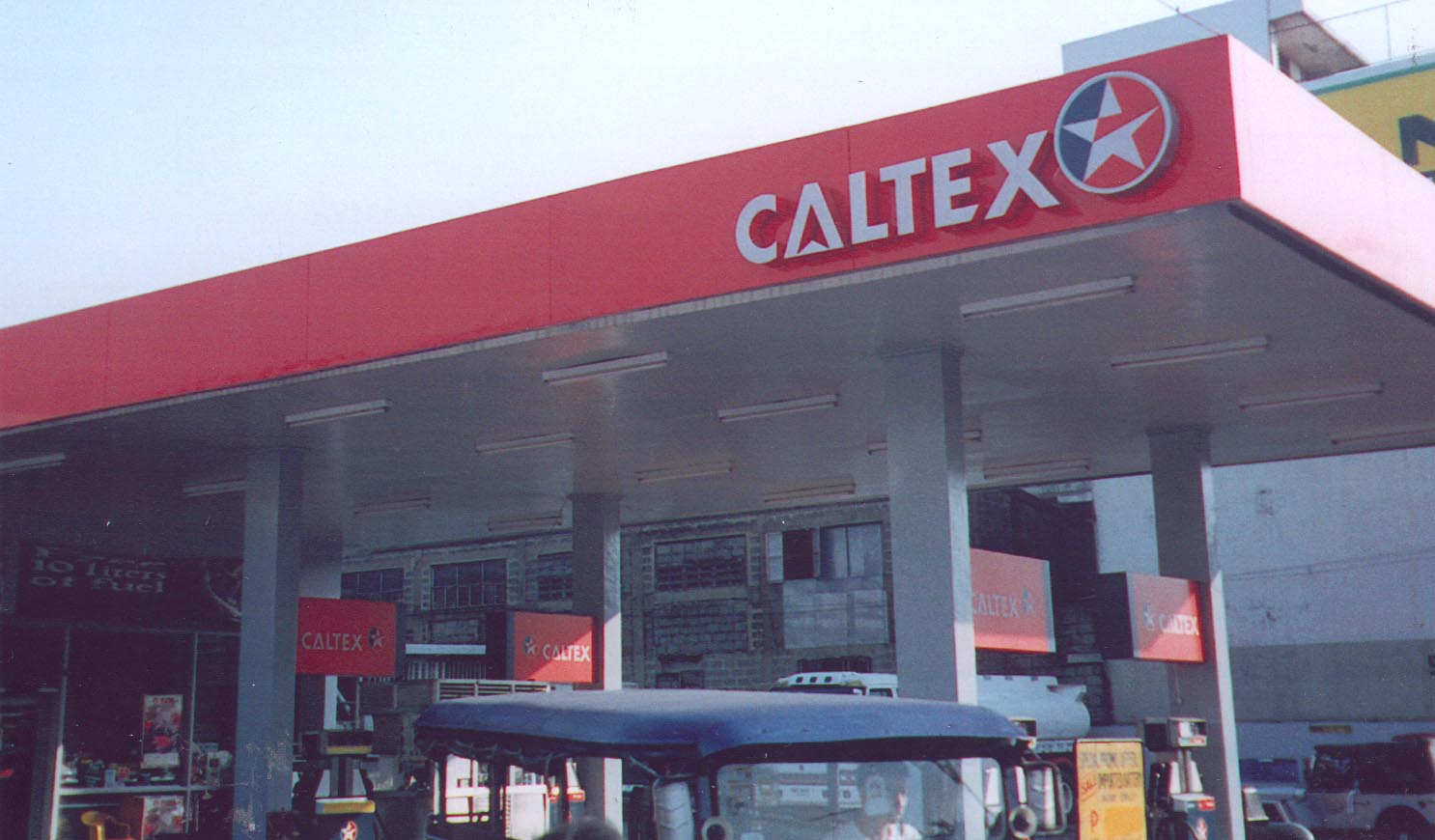

CALTEX SERVICE STATION
Gen. Kalentong St., Mandaluyong City

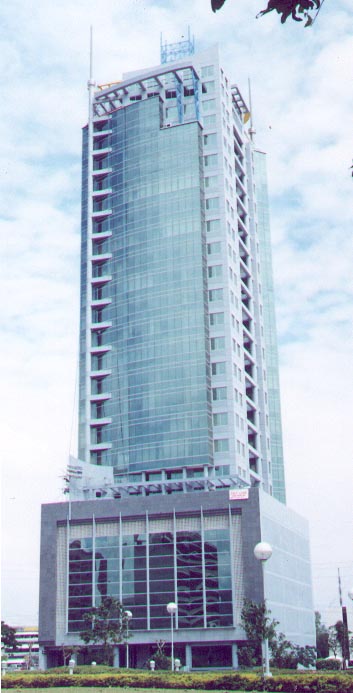

RICHVILLE CORPORATE CENTER
Madrigal Business Park, Ayala Alabang, Muntinlupa City
EVER GOTESCO MALL
Ortigas Ave., Pasig City
|
