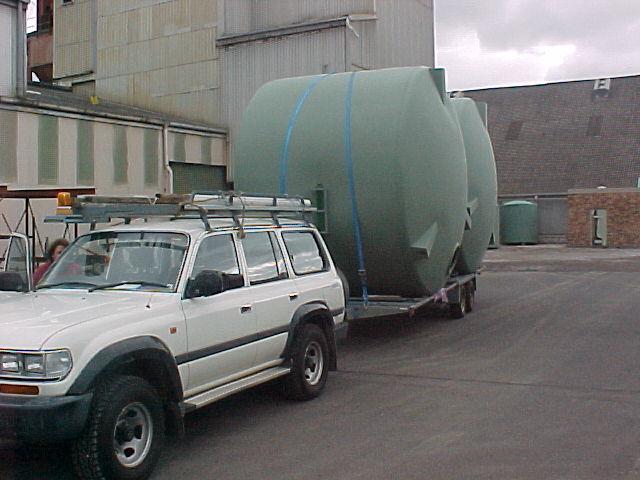

| SITE ACCESS Vehicle length can be upto 19m and needs approxiamtely 21m turning circle. Allowances also need to be made for high and wide loads especially taking into consideration things such as gateways, low branched trees and overhanging power lines. We will endeavour to deliver the tank as close as possible however tank positioning is the customer's sole responsibility. Customer assistance is required to unload tank at site. (3-4 people needed with the larger tanks). |
SITE PREPARATION **Tank can be placed directly on flat level ground however we recommend 30mm level sand base approximately 250mm wider than the tank diameter and soil or road base placed over the edge to help eliminate wind erosion. **Tank can be placed on a level concrete pad slightly larger than the tank diameter. **A tank stand can be used if decking has no more than 30-40mm spacing. Design tank stand to take 3-4 times the weight of a full tank. (Note: a litre of water is approx. 1 kg in weight). **Make sure overflow is discharged away from tank to eliminate the chance of water erosion undermining tank base. **Use flexible hose between tank and pipeline to eliminate breaking the tap or placing stress on the tank. **Place tank in shady area if possible to maximise optimal tank life. |
|||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||
| Diagram at left is of tank showing the high overflow and the sand baseneeding to be slightly larger than tank diameter. It is Important to ensure that the over flow is to be piped away from the tank to avoid undermining tank | ||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||

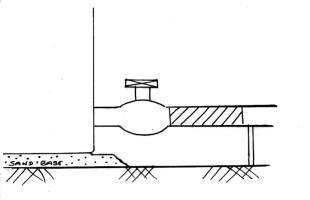

| The diagram on the left is to help explain that the tap needs to have a flexible hose or pipe. This flexibilty helps to prevent stresses on tank, tap and pipework. The shaded area is where the flexibilty is needed and should be approxiamately 300mm long. | ||||||||||||||||||||||||||||||||||||||||||
| Our aim is to supply a quality tank at a reasonable price | ||||||||||||||||||||||||||||||||||||||||||
