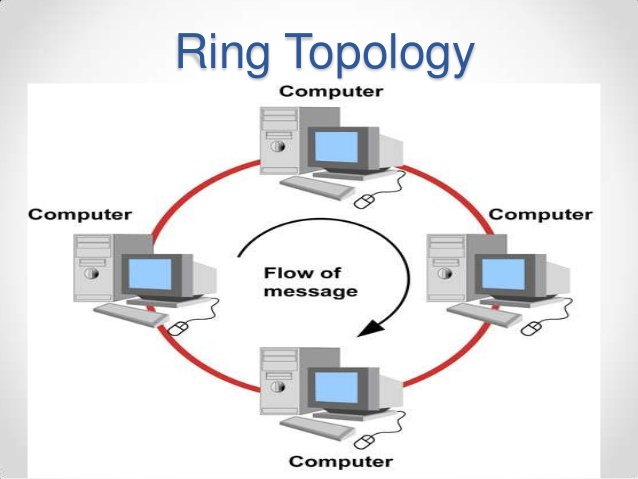

Ring network is a cable forms a closed loop (ring) with all computers and devices arranged along the ring.
|
MEANING & TERMS
|
How data trasmit:
- Data transmitted on a ring network travels from device to device around the entire ring, in one direction (clockwise or counterclockwise) until it reach its destination by using token.
- Token passing is one method for sending data around a ring.
- Each device takes a turn sending and receiving information through the use of a token.
|
STAR NETWORK
|
Advantages
|
Disadvantages
|
- Data packet are flowing in one direction at high speed around the ring.
|
- The network will be malfunction if the device (pc/devices) breaks down.
|
- The transmission of data is relatively simple as packets travel in one direction only.
|
- data packets must pass through every computer therefore,this makes it slower.
|
|
