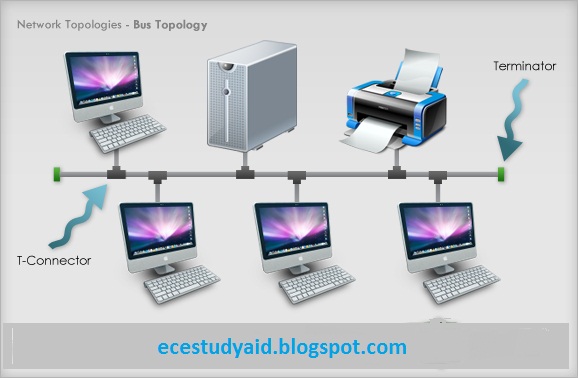

Bus network is consists of a single central cable (backbone/trunk), to which all computers and other devices connect (node).
- Each devices is connected to the single bus cable through T-Connector.
- A Terminator is required at each end of the bus cable to prevent the signal from bouncing back and forth on the bus cable.
|
MEANING & TERMS
|
How data trasmit:
- in a bus network,it transmit data,instruction, and information as a series of signal in both directions where all nodes receive the signal but only the intended recipient will accept the signal and the rest will ignore .
|
STAR NETWORK
|
Advantages
|
Disadvantages
|
- Failure of one device usually does not affect the rest of the bus network.
|
- A break in the backbone (single central cable) will prevent all systems from accessing the network.
|
- Computers and other devices can be attached and detached at any point on the bus without disturbing the rest of the network.
|
- It is difficult to identify the problem if the entire network shut down.
|
|
