Irregular Bay Window Solutions

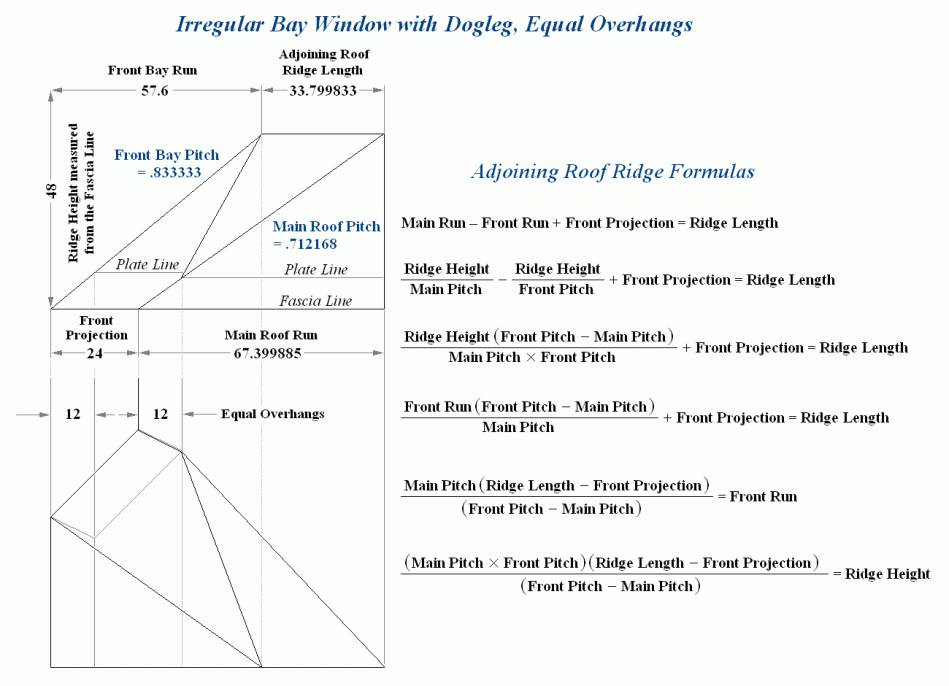

Adjoining Roof Ridge Dimensioning Formulas

Links to other Diagrams and Models

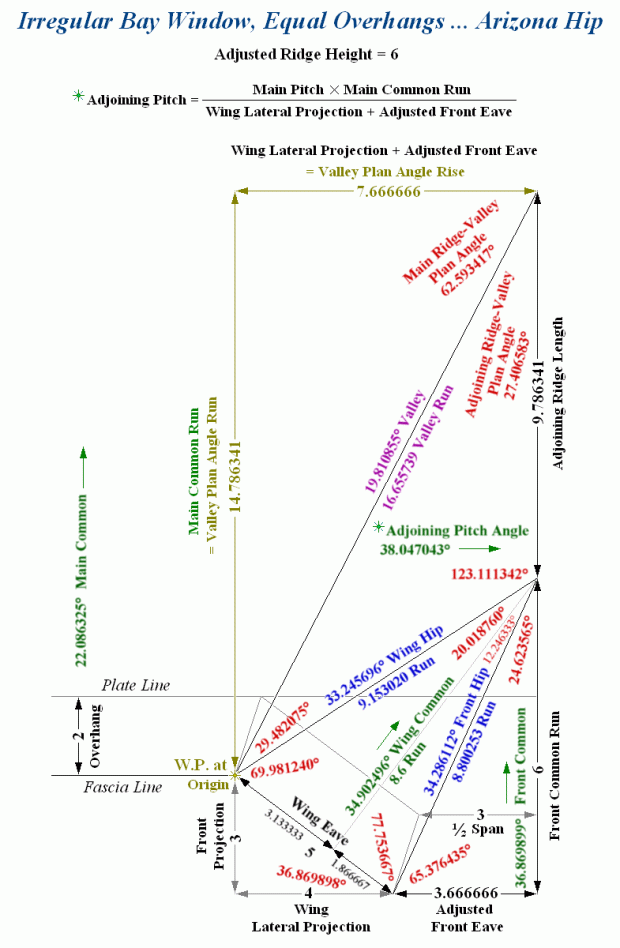

Arizona Hip ... Dogleg is zero
Example Arizona Hip #1 ... footprint based on a Nonagon
Example Arizona Hip #2 ... footprint based on a Nonagon
Example Arizona Hip #3 ... Irregular Footprint

Special Cases of Bay Window ...
Doglegs terminate at intersection of Plate Line

The following style of Bay Window is not
supported by the current version of the calculator ...
Irregular Bay Windows ... Dogleg terminates at custom Working Point

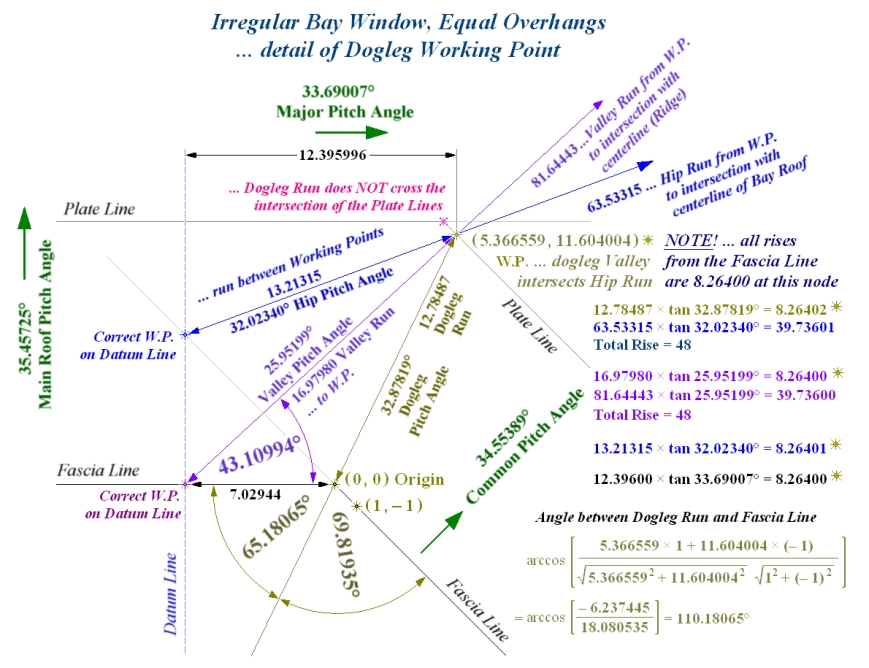

Irregular Bay Roof with Equal Overhangs and Dogleg Valley ... Dogleg Valley Detail
Irregular Bay Roof with Equal Overhangs and Dogleg Valley ... Plan View Dimensions

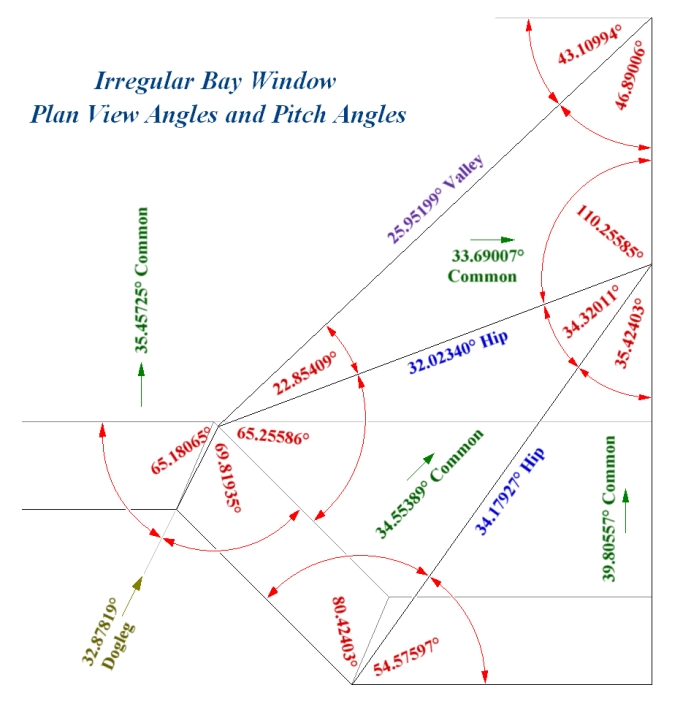

Irregular Bay Roof with Equal Overhangs and Dogleg Valley ... Plan Angles

Common and Hip Rafter Pitch Angle Check
arctan (tan 39.80557° × sin 54.57597°) = 34.17927°
arctan (tan 34.17927° ÷ sin 80.42403°) = 34.55388°
arctan (tan 34.55388° × sin 65.25586°) = 32.02340°
arctan (tan 32.02340° ÷ sin 110.25585°) = 33.69007°
arctan (tan 33.69007° × sin 46.89006°) = 25.95200°
arctan (tan 25.95200° ÷ sin 43.10994°) = 35.45726°

Dogleg Pitch Angle Check
arctan (tan 35.45725° × sin 65.18065°) = 32.87819°
arctan (tan 32.87819° ÷ sin 69.81935°) = 34.55389°

... and finally going full circle to where we began
arctan (tan 34.55389° × sin 80.42403°) = 34.17928°
arctan (tan 34.17928° ÷ sin 54.57597°) = 39.80558°

A difference of only 39.80558° – 39.80557° = .00001° from the value we started with.

Also check the Pitches and Plan Angles with ...
Formula for Unequal Pitches at any Corner Angle

Polyhedron Modeling the intersecting Roof Planes

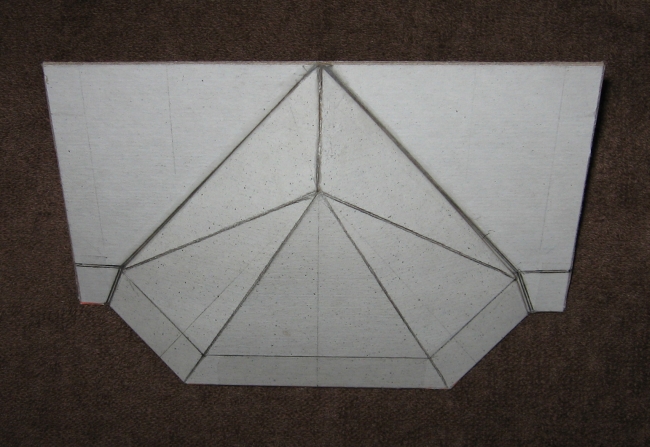

Irregular Bay Roof with Equal Overhangs and Dogleg Valley ... Polyhedral Model, Plan View

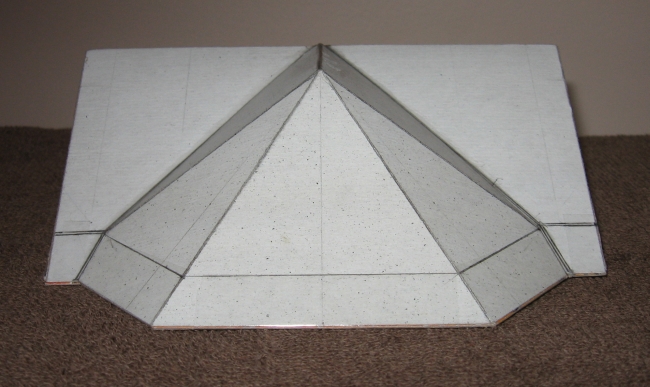

Irregular Bay Roof with Equal Overhangs and Dogleg Valley ... Polyhedral Model, Front View

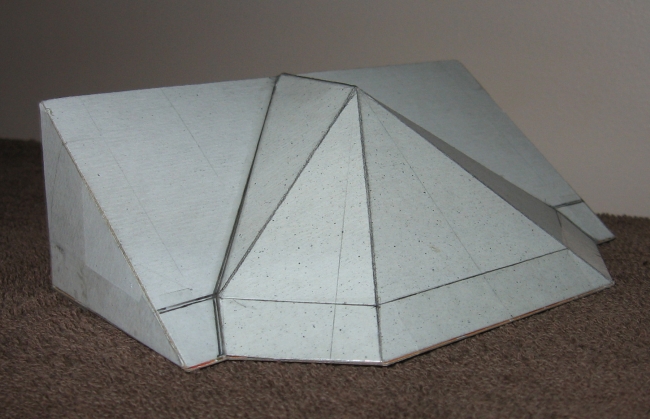

Irregular Bay Roof with Equal Overhangs and Dogleg Valley ... Polyhedral Model, Oblique View

Superimposed Rafter Feet and Plates
Heel Heights are equal at Fascia


Solve the Rafter Depths, Heel Heights
and Plate Height Adjustments with ...
Rafter to Point at Fixed Height Calculator
Rafter Dimension Conversion Formulas

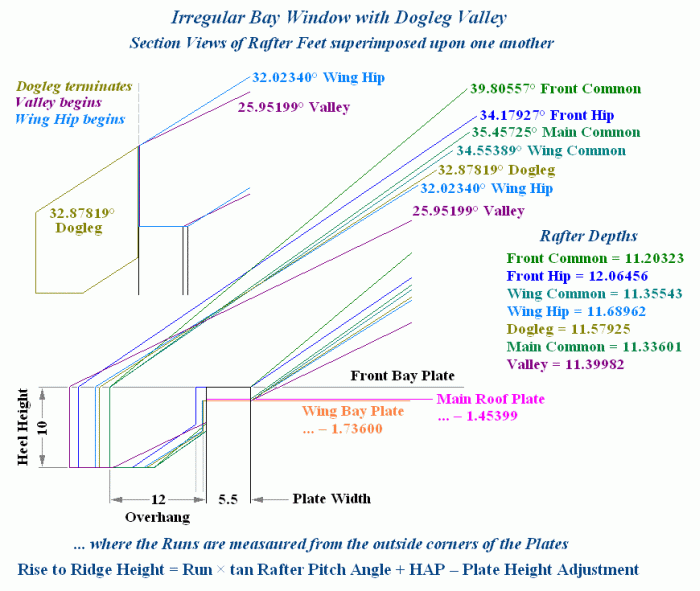

Irregular Bay Roof with Equal Overhangs and Dogleg Valley ... Superimposed Rafter Feet and Plates

Bird's Eye View of Polygonal Model
Rafter Depths and Plate Height Adjustments

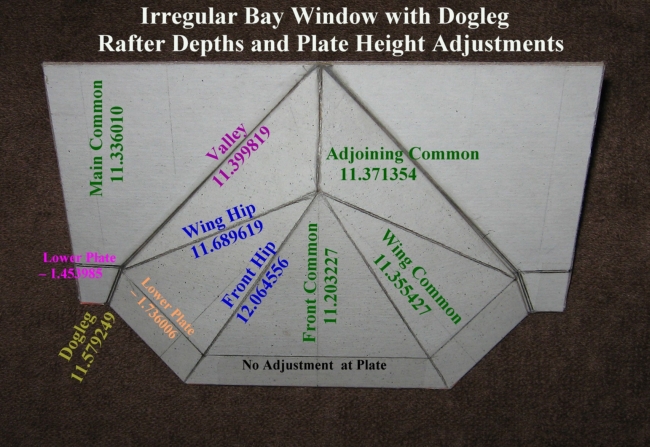

Irregular Bay Roof with Equal Overhangs and Dogleg Valley ... Bird's Eye View: Rafter Depths and Plate Height Adjustments

Section extracted from Bay Roof
Model constructed around the Rafters

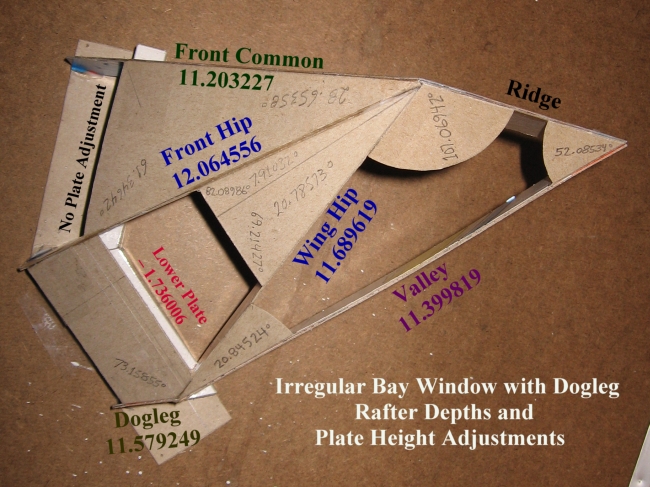

Irregular Bay Roof with Equal Overhangs and Dogleg Valley ... Rafter Model, Bird's Eye View

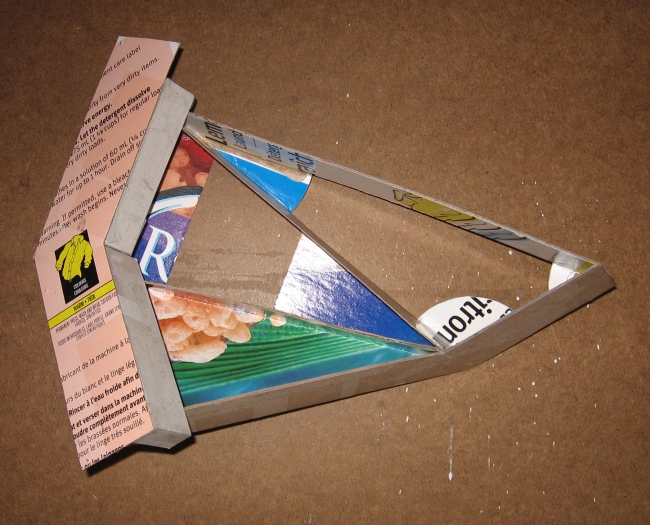

Irregular Bay Roof with Equal Overhangs and Dogleg Valley ... Rafter Model, Worms's Eye View

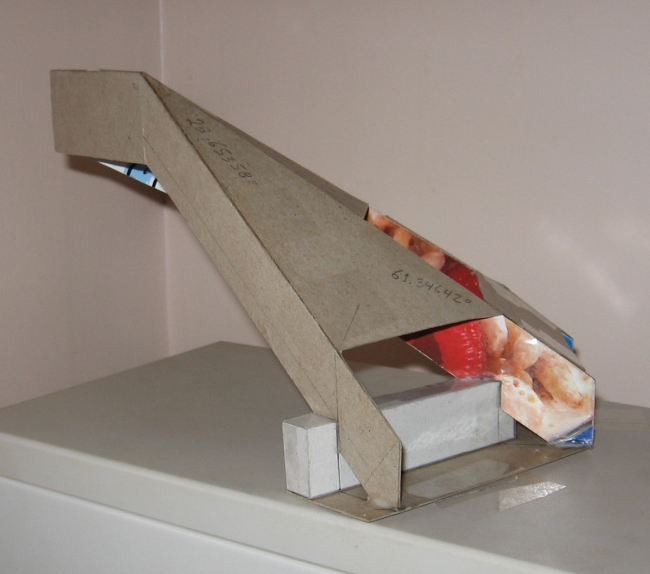

Irregular Bay Roof with Equal Overhangs and Dogleg Valley ... Rafter Model, Front Bay Common

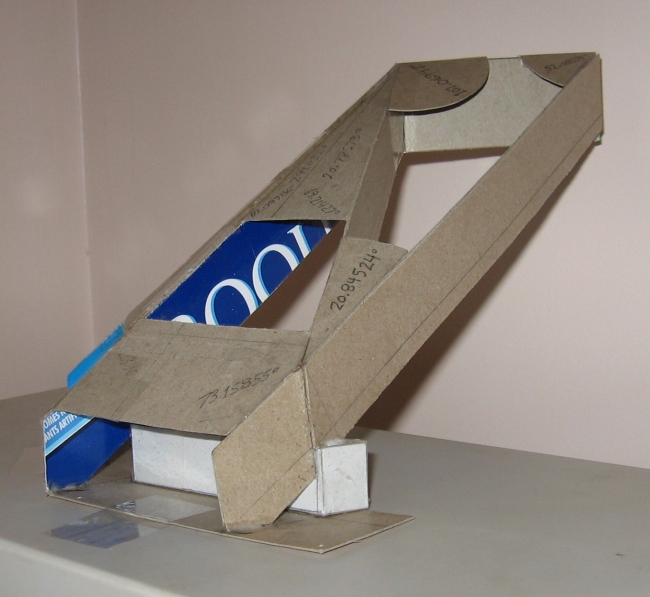

Irregular Bay Roof with Equal Overhangs and Dogleg Valley ... Rafter Model, Wing Bay Hip and Valley intersect Dogleg

Joe Bartok
