Irregular Bay Roof ... moving the Dogleg Working Point

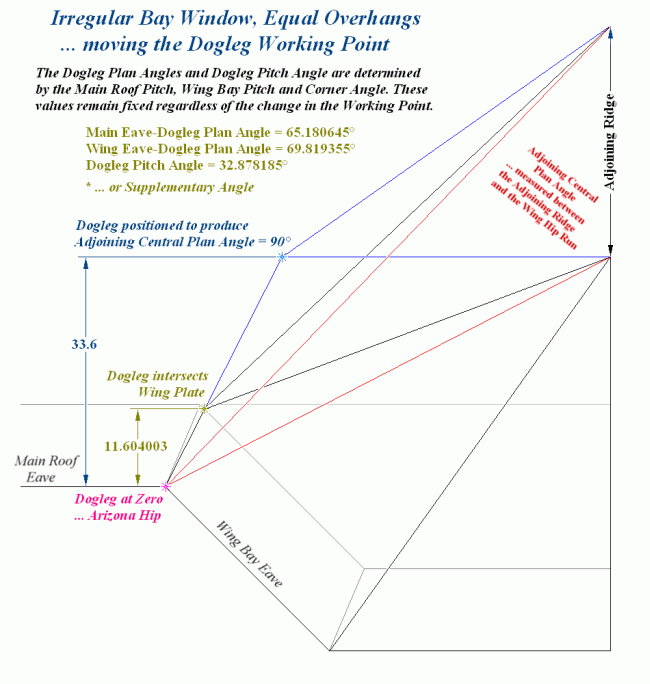

Irregular Bay Roof with Equal Overhangs ... changing the Dogleg Working Point

Irregular Bay Roof ... custom Dogleg Working Point

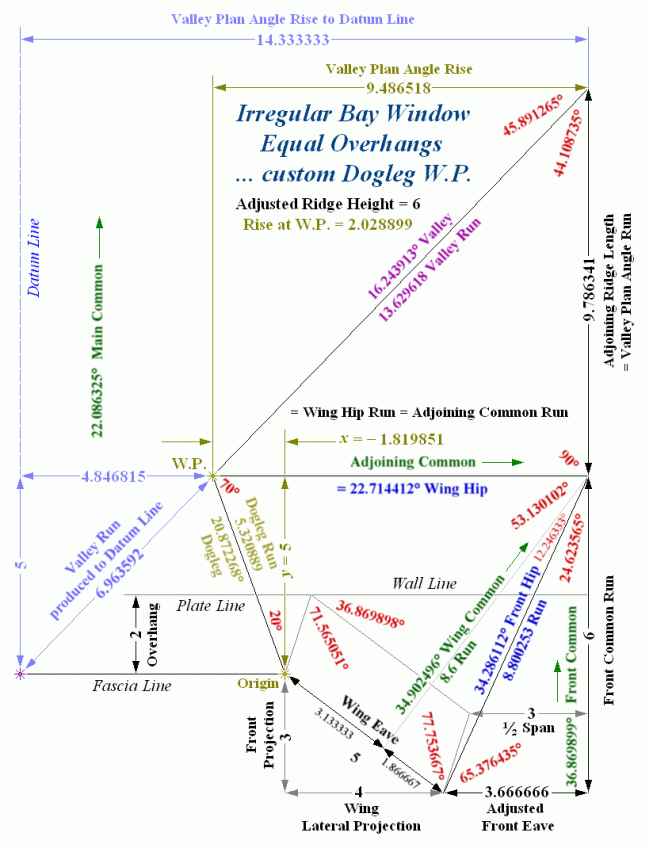

Irregular Bay Roof with Equal Overhangs and custom Working Point for Dogleg Valley

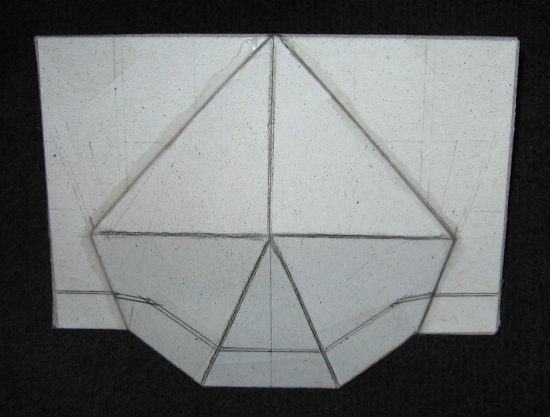

Irregular Bay Roof with Equal Overhangs and custom Working Point for Dogleg Valley ... 3D Model, Bird's Eye View

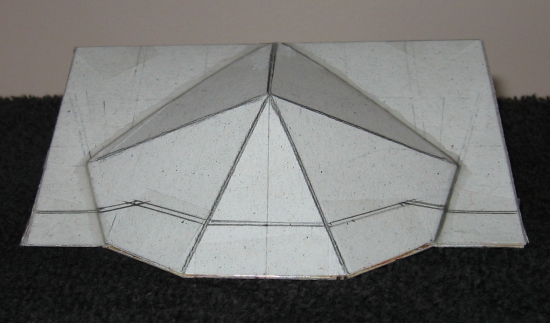

Irregular Bay Roof with Equal Overhangs and custom Working Point for Dogleg Valley ... 3D Model, Front View

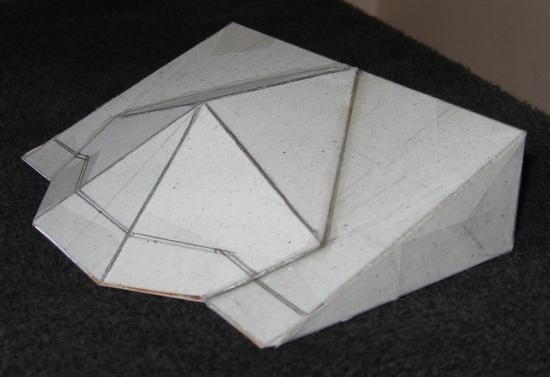

Irregular Bay Roof with Equal Overhangs and custom Working Point for Dogleg Valley ... 3D Model, Oblique View

Irregular Bay Roof ... Arizona Hip, Dogleg equals Zero
Initial givens are the same as the Bay Roof illustrated above
Irregular Bay Roof with Equal Overhangs ... Arizona Hip, Dogleg equals Zero

Irregular Bay Roof ... Dogleg intersects Main Plate
Dogleg Pitch equals Main Pitch

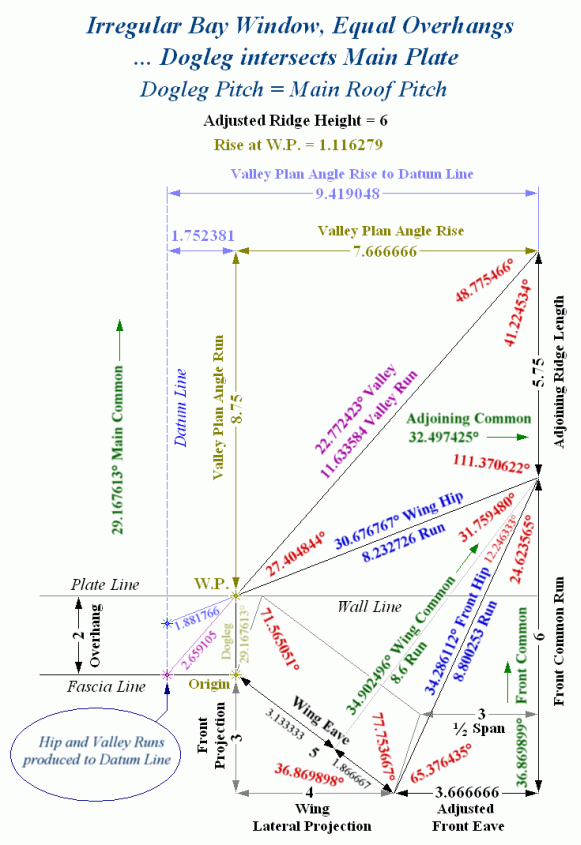

Irregular Bay Roof with Equal Overhangs ... Dogleg intersects Main Plate, Dogleg Pitch equals Main Roof Pitch
